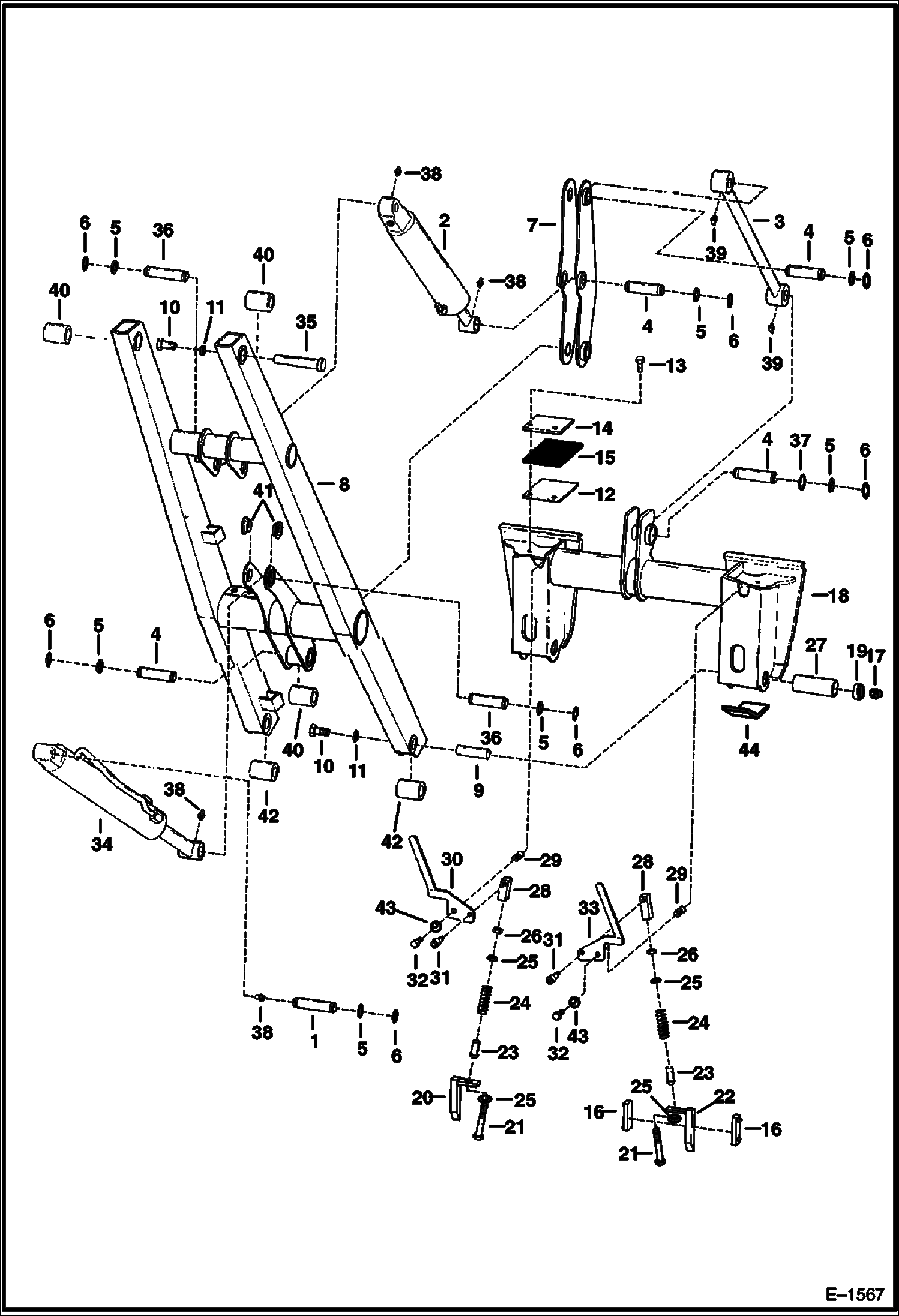

Запчасти Bobcat Articulated Loaders LIFT ARM & BOBTACH MAIN FRAME

1

6585395

PIN

2

CYLINDER See Illustration TILT CYLINDER/ D1583 TILT

3

LINK NLA - Was 6585304 - A

4

6561326

PIN

5

6584872

WASHER

6

6538285

LOCK RING Was 1305943B - A

7

6585126

LINK R.H.

7

6585128

LINK L.H.

8

6585118

LIFT ARM

9

6559018

PIN, PIVOT BOB-TACH

10

31C1228

BOLT

11

6576033

WASHER Was 6558465 - A

12

6583933

COVER

13

84G3716

SCREW 5

14

6583931

COVER

15

6583932

COVER

16

6562026

INSERT

17

743332

FITTING, GREASE 5

18

6561247

FRAME See Illustration DECALS/ B20613 BOB-TACH - ALSO ORDER 6561383 DECAL

19

6730997

BUSHING, WELD-ON Was 711273B - A

20

6565190

WEDGE

21

17C884

BOLT

22

6565189

WEDGE

23

6562019

GUIDE

24

6578253

SPRING, COMPRESSION Was 6562018 - A

25

25E21

WASHER 5

26

7D8

NUT 5

27

6563436

BUSHING

28

6565186

BLOCK, BOB-TACH WEDGE

29

6704453

SPRING Was 6578252 - C

30

6563106

LEVER Was 6563104 - A

31

38C810

BOLT Was 661846B - B

32

35C610

BOLT 5

33

6563107

LEVER Was 6563105 - A

34

6584227

CYLINDER See Illustration LIFT CYLINDER/ C2697 LIFT

35

6561343

PIN

36

6585129

PIN

37

6654117

SEAL, OIL 51 mm (2'') OD - Was 6630099 - A

37

225855

SEAL, OIL 10 38 mm (1.5'') OD

38

10H25

FITTING, GREASE 5

39

11H15

GREASE FITTING

40

6561345

BUSHING weld-in

41

6585125

BUSHING weld-in

42

6559838

BUSHING weld-in

43

619021

WASHER, 5

44

6584892

DUST PLATE
