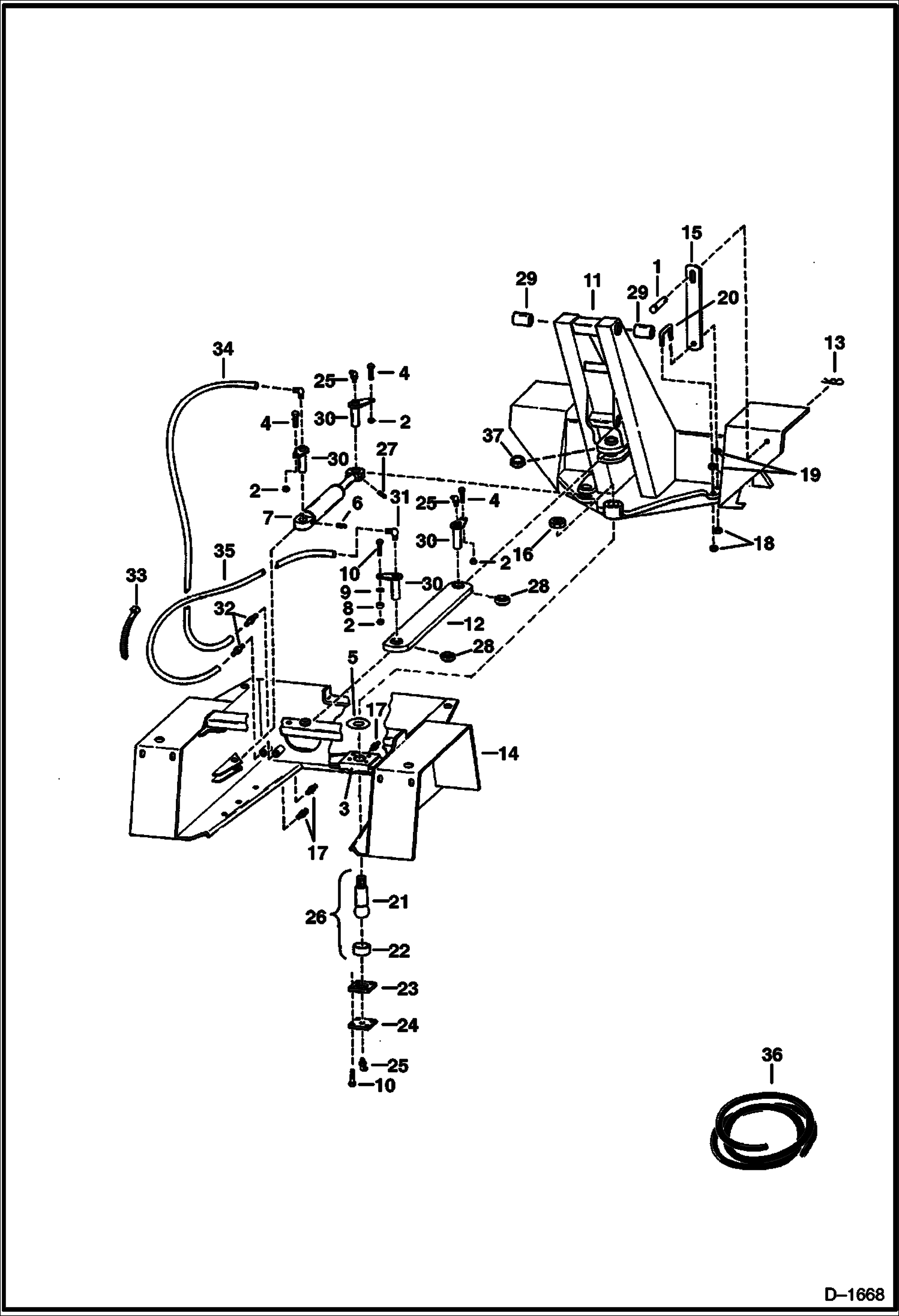

Запчасти Bobcat Articulated Loaders FRAMES & ARTICULATION UNIT MAIN FRAME

1

6610390

PIN

2

85D6

NUT, 5

3

6585518

PIVOT BLOCK Weld-in

4

17C620

BOLT

5

6588949

SEAL Ball joint

6

33G404

SET SCRW5 hex socket

7

6585079

CYLINDER See Illustration STEERING CYLINDER/ C2699 STEERING

8

616783

WASHER Was 6591440 - A

9

25E18

WASHER

10

17C624

BOLT 5

11

6585004

FRAME front

12

6585372

LINK articulation - W/Ref. 28 - Was 6530634 - A

13

1320075

PIN, COTTER

14

6584542

FRAME center

15

6585130

BAR

16

85D20

NUT

17

10H25

FITTING, GREASE 5

18

85D8

NUT, 5

19

7D8

NUT 5

20

6584779

U-BOLT

21

SHAFT NSS - tapered - Order Ref. 26

22

RACE NSS - W/seal - Order Ref. 26

22

SEAL NSS - Order Ref. 26 - Was 6599970 - A

23

6585293

MOUNT

24

6585292

CAP

25

12H15

FITTING, GREASE 5

26

SHAFT & RACE NLA - assy. - Ref. 16, 21 & 22 - Order 6588696 - Was 6530787 - A

26

6588696

SHAFT & RACE Assy - W/Ref. 16, 21, 22 - Also order Ref. 5 (6588949 Seal)

27

16F2

PLUG

28

669928

BEARING

29

BUSHING NLA - weld-on - Was 6561423 - A

30

6538261

PIN ASSY.

31

51F2

FITTING

32

49F2

FITTING

33

6624289

STRAP, TIE

34

TUBING NLA - 22'' (558.8mm) long - Order Ref. 36

35

TUBING NLA - 48'' (1219.2mm) long - Order Ref. 36

36

6659316

TUBING Bulk - Sold Per Foot

37

6585360

BUSHING Weld in
