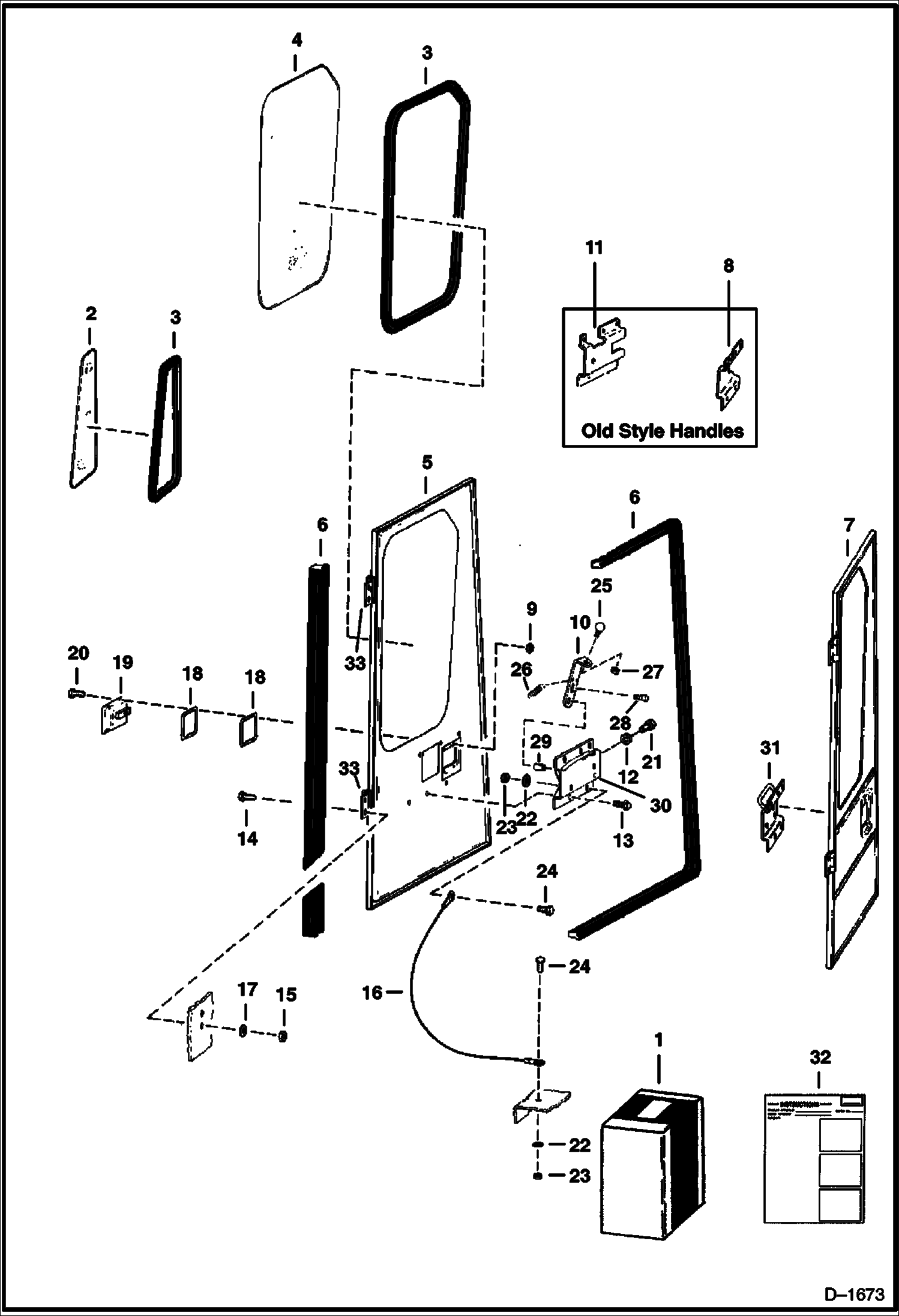

Запчасти Bobcat Articulated Loaders CAB ENCLOSURE ACCESSORIES & OPTIONS

1

6585272

KIT cab enclosure - Ref. 1-7, 9, 10 & 12-32 - Was SALES - A

2

6585364

WINDOW

3

6514301

SEAL bulk - Sold Per Foot - Use 43.00 in.

4

6585404

WINDOW

5

6585114

DOOR L.H.

6

SEAL NLA - bulk - Sold Per Foot - Was 6584051 - A

7

6585110

DOOR R.H.

8

HANDLE NLA - R.H. - Order Ref. 10, 12, 21, 26-29 & 31

9

12D8

NUT

10

6529276

LEVER

11

HANDLE NLA - L.H. - Order Ref. 10, 12, 21, 26-29 & 30

12

6E4

WASHER 10

13

35C508

BOLT

14

17C512

BOLT 5

15

85D5

NUT 5

16

CABLE NLA - Was 6585544 - A

17

25E16

WSHR

18

6585539

SPACER

19

6630470

LATCH

19

6630470

LATCH latch - Was 6632975

19

6649707

KEY for lock-508CH

19

6649708

KEY for lock-545CH

20

45G808

BOLT

21

18C412

BOLT Was 18C000420B - A

22

25E22

WASHER

23

85D8

NUT, 5

24

17C812

BOLT

25

6632883

KNOB

26

6632451

SPRING

27

85D4

NUT 5

28

38C504

BOLT Was 6632465 - B

29

6584439

COUPLER

30

6529278

HANDLE L.H.

31

6529277

HANDLE R.H.

32

INSTRUCTIONS NLA - Print Instructions from BASS - Was 6566763 - A

33

6585113

HINGE
