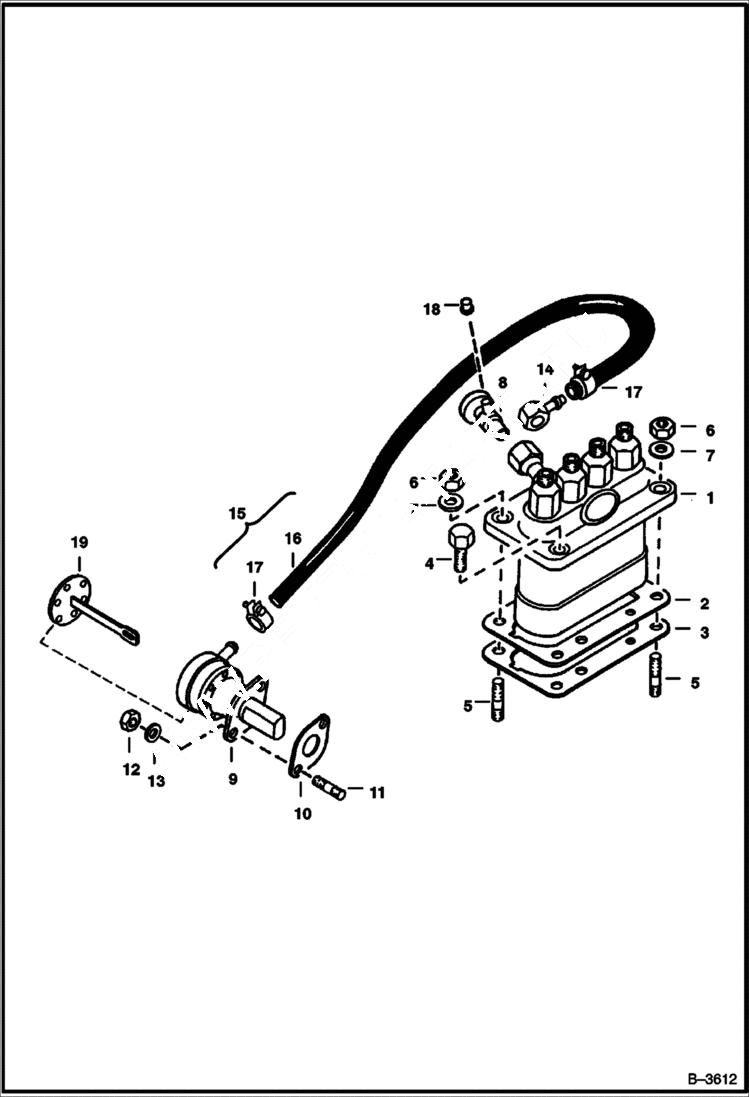

Запчасти Bobcat Articulated Loaders INJECTION PUMP POWER UNIT

1

6655516

PUMP Was 6598131 - A

2

3974626

SHIM 0,20 mm - injection pump

3

6598148

SHIM

4

4CM822

BOLT

5

3974627

STUD

6

1DM8

NUT Was 25DM8 - A

7

6EM80

WASHER, SPRING

8

6598102

VALVE

9

6598121

FUEL PUMP

10

3974502

GASKET fuel pump

11

3974503

STUD

12

1DM6

NUT

13

6EM60

WASHER, SPRING spring

14

6655515

JOINT Was 3974500B - A

15

6598144

PIPE ASSY. fuel

16

PIPE NSS - fuel

17

6655874

CLIP pipe - Was 3974499B - A

18

6655524

CAP Was 6598103 - A

19

6669306

DIAPHRAM fuel pump - Was 6630183 - A
