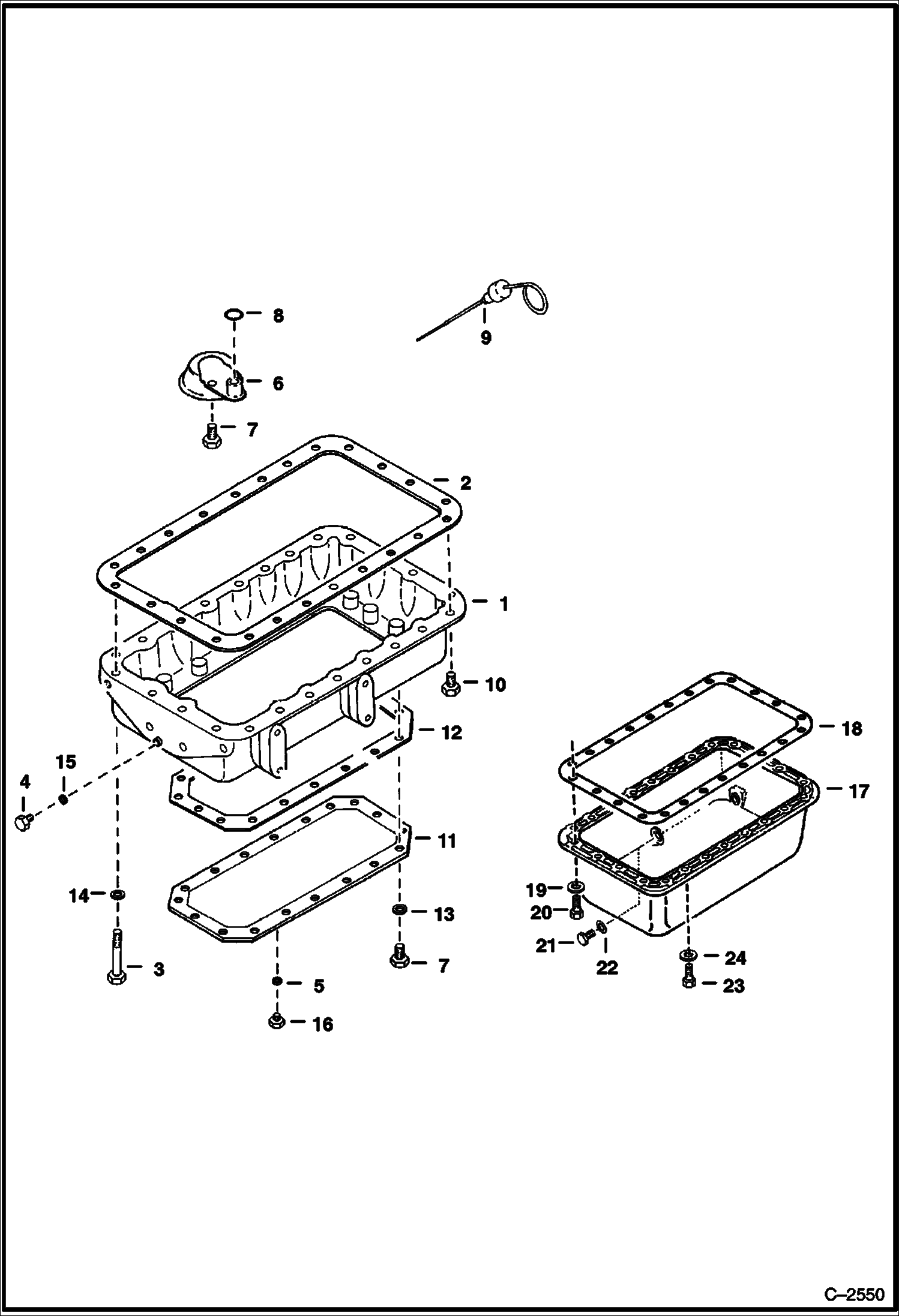

Запчасти Bobcat Articulated Loaders OIL PAN POWER UNIT

1

OIL PAN NLA - two piece - Was 6598184 - A

2

6655474

GASKET Use W/Two Piece Oil Pan - Was 3974407B - A

3

5CM1030

BOLT 11 or 12

4

6630815

PLUG

5

6680484

GASKET Was 3974403 - B

6

6655194

SCREEN, OIL Was 6653568 - A

7

1CM816

BOLT Was 4CM816 - A

8

3966516

O RING

9

6598181

DIPSTICK oil

10

6653687

BOLT Qty. 11 or 12 - W/Washer

11

COVER NLA - oil pan - Was 3974410 - A

12

3974411

GASKET

13

6EM80

WASHER, SPRING

14

8EM100

WASHER spring

15

6631046

SEAL

16

3974402

PLUG

17

OIL PAN NLA - One Piece - Order (16) of Ref. 3 & (8) of Ref. 23 & 24 and 6668806 - Was 6653572 - A

17

6668806

OIL PAN

18

6666817

GASKET Use W/One Piece Oil Pan - Was 6640727 - A

19

6640732

WASHER

20

6640728

BOLT

21

6640729

PLUG

22

6640730

WASHER

23

6668807

BOLT

24

6669192

WASHER
