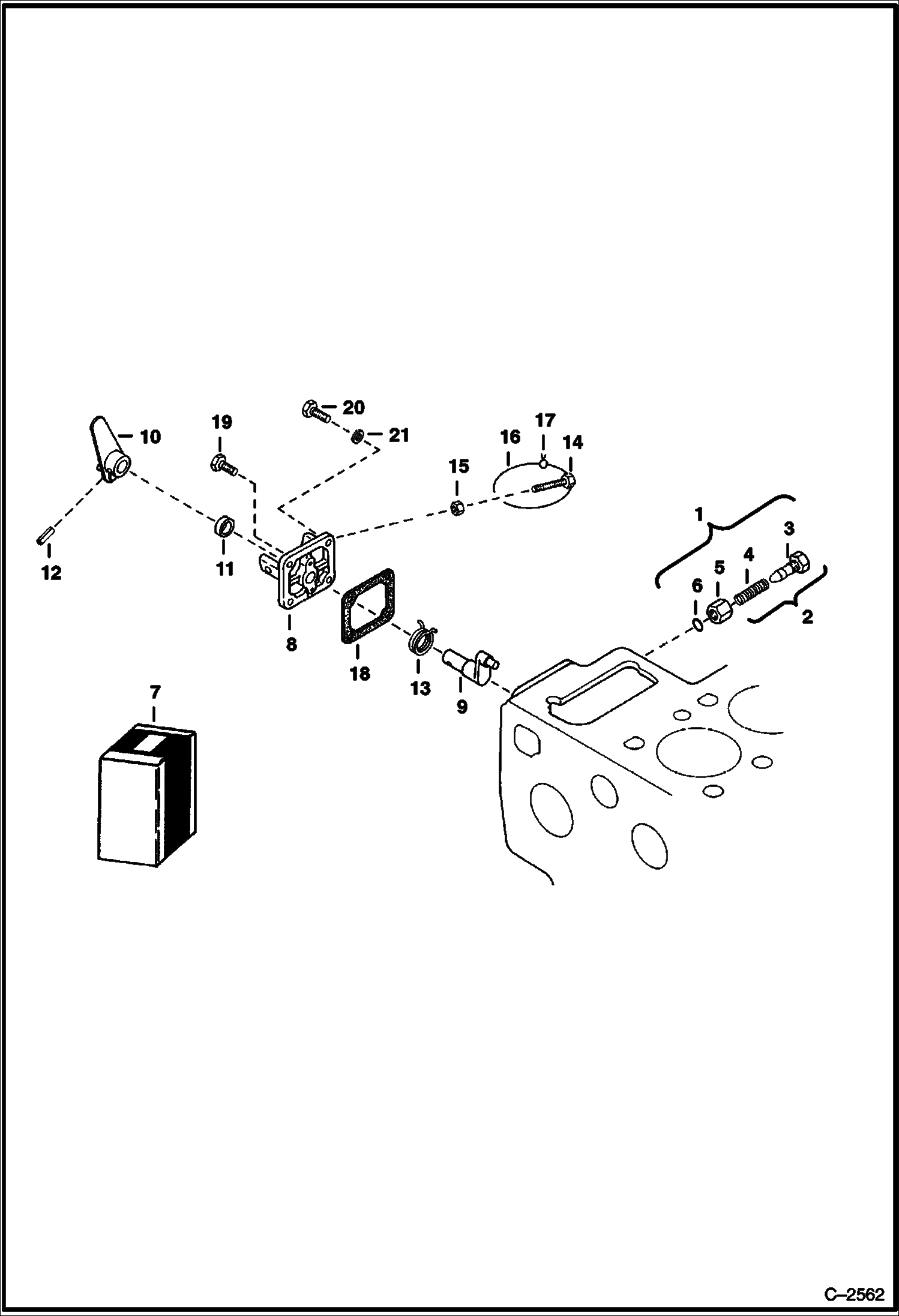

Запчасти Bobcat Articulated Loaders ENGINE STOP LEVER POWER UNIT

1

6598149

IDLE ASSY. idle assy. - Ref. 2-6

2

6598150

BOLT adj. - Ref. 3 & 4

3

6598151

BOLT adjusting

4

3974977

SPRING

5

6598157

NUT

6

6598096

O-RING

7

6598165

LEVER ASSY. eng. stop - Ref. 8-13

8

COVER NSS - injection pump

9

SHAFT NSS - lever

10

LEVER NSS - engine stop

11

SEAL NSS - oil

12

6598098

PIN spring

13

SPRING NSS

14

STOPPER NLA

15

NUT NLA

16

WIRE NLA

17

LEAD NLA - sealing

18

6666783

GASKET pump cover - Was 3974601B - A

19

4CM618

BOLT

20

4CM622

BOLT

21

1EM60

WASHER plain
