Запчасти Bobcat A-Series 2-SPEED VALVE (S/N A3P612350 & Above, A3P712200 & Above) HYDROSTATIC SYSTEM

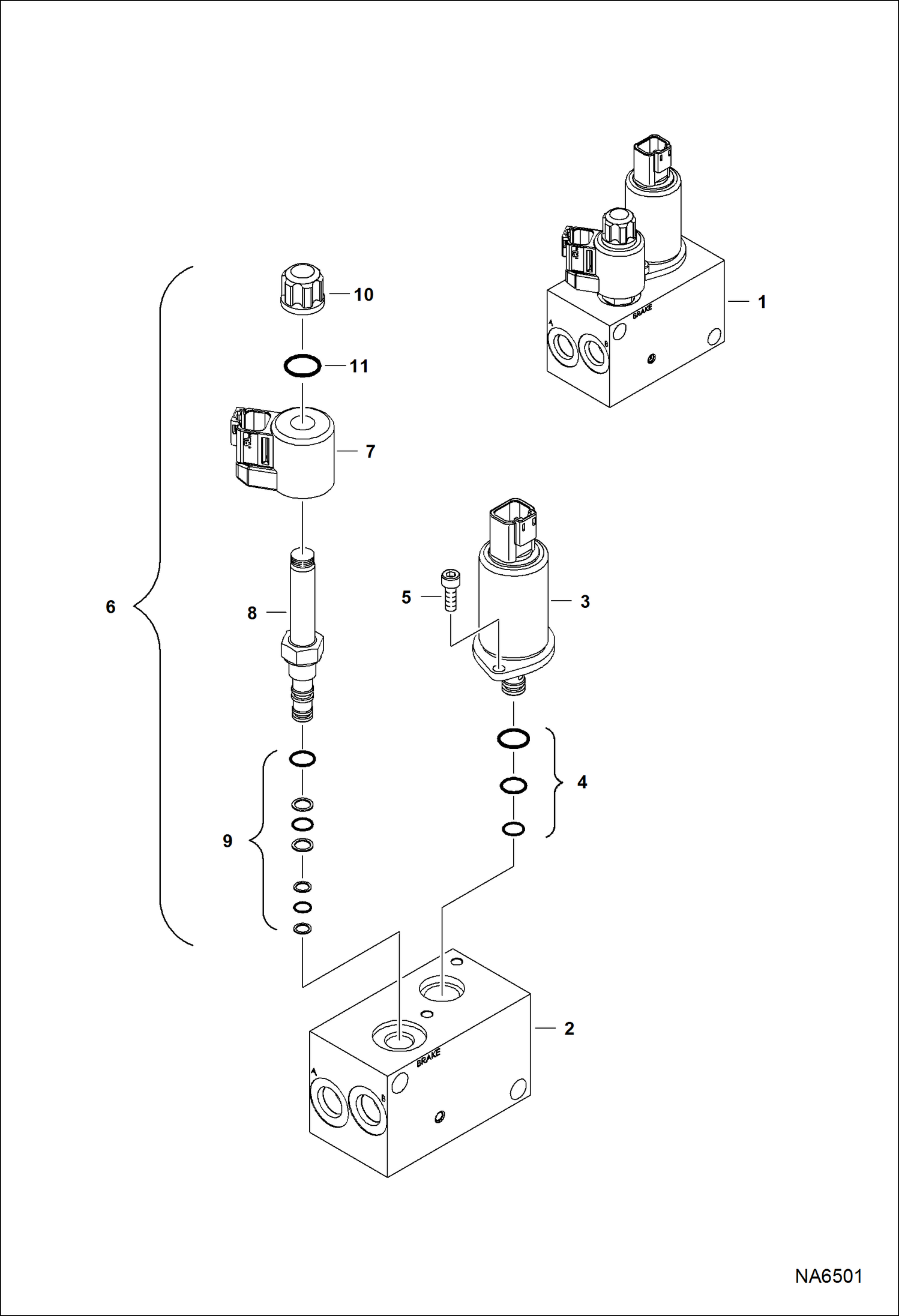

Схема запчастей Bobcat A-Series - 2-SPEED VALVE (S/N A3P612350 & Above, A3P712200 & Above) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

VALVE, 2-SPEED NLA - Ref. 2, 3, 5-8, 10 & 11 - W/O brake - Was 7211449 - A

1

7231377

VALVE, 2-SPEED Ref. 2, 3, 5-8, 10 & 11 - W/brake

2

BODY NSS

3

7024902

SOLENOID

4

7024903

KIT, SEAL

5

7024904

BOLT

6

7025092

SOLENOID, LOCK BRAKE

7

7025094

COIL, SOLENOID

8

STEM NSS

9

7025093

KIT, SEAL

10

NUT NSS

11

O-RING NSS

Выбрано товаров: 12
