Запчасти Bobcat A-Series GEAR PUMP (Triple) HYDROSTATIC SYSTEM

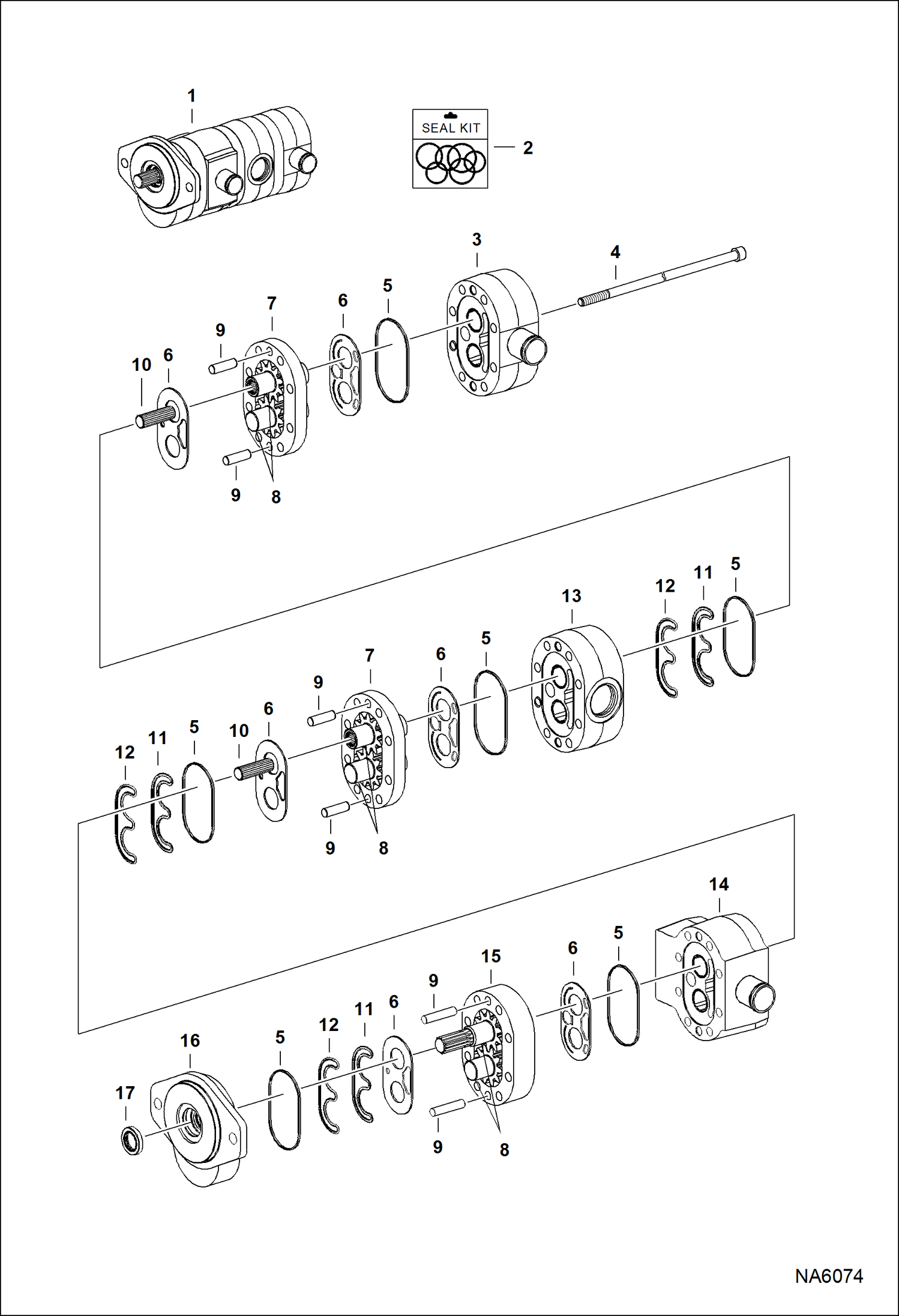

Схема запчастей Bobcat A-Series - GEAR PUMP (Triple) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

7010317

PUMP, GEAR

2

6688321

SEAL KIT Ref. 5, 6, 11, 12 & 17

3

HOUSING, REAR NSS

4

BOLT NSS

5

SEAL NSS

6

WEAR PLATE NSS

7

HOUSING, GEAR NSS

8

GEAR SET NSS

9

PIN NSS

10

CONNECTOR, SPLINE NSS

11

SEAL, LOAD NSS

12

SEAL, PRE-LOAD NSS

13

HOUSING, CENTER NSS

14

HOUSING, CENTER NSS

15

HOUSING, GEAR NSS

16

HOUSING, FRONT NSS

17

SEAL, SHAFT NSS

Выбрано товаров: 17
