Запчасти Bobcat A-Series HYDROSTATIC PUMP HYDROSTATIC SYSTEM

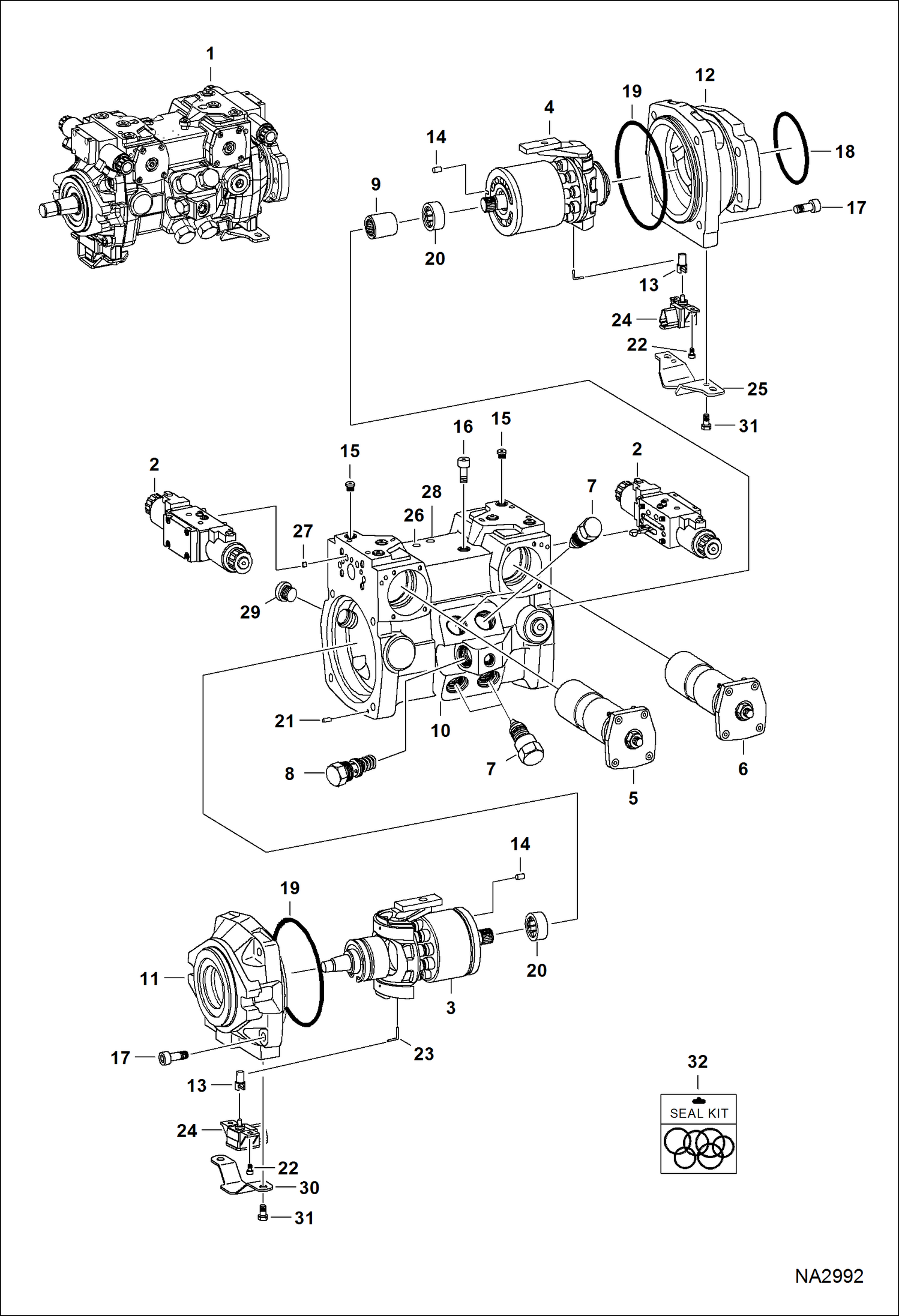

Схема запчастей Bobcat A-Series - HYDROSTATIC PUMP HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

PUMP, TANDEM NLA - Model R902103468 - Ref. 2-31 - Order 7013178 pump & Ref. 25 - Was 6698594 - A

1

7013178

PUMP, HYD TANDEM Model R902148155 - Ref. 2-31

2

7008109

MODULE, CONTROL See Illustration HYDROSTATIC PUMP/ B25016

3

7008105

GROUP, ROTATING LH See Illustration HYDROSTATIC PUMP/ B25011 - LH rotation

4

7008106

GROUP ROTATING RH See Illustration HYDROSTATIC PUMP/ B25012 - RH rotation

5

7008107

CONTROL See Illustration HYDROSTATIC PUMP/ B25013 - LH - assy

6

7008108

CONTROL See Illustration HYDROSTATIC PUMP/ B25013A - RH - assy

7

7008124

VALVE, RELIEF preset at 350 bar

8

6687938

VALVE See Illustration HYDROSTATIC PUMP/ B25015A - charge pressure relief 15-30 bar

9

6687941

COUPLER

10

7008110

HOUSING W/Ref 16

11

7008111

FLANGE, LH

12

7008112

FLANGE, RH

13

7008113

SHAFT

14

6688011

PIN

15

6682875

PLUG Was 6688016 - A

16

6687992

SCREW

17

6688008

SCREW

18

6671520

O-RING

19

6688009

SEAL

20

6688040

BEARING

21

6686934

PIN

22

7008114

SCREW

23

6688014

PIN

24

7008115

SENSOR

25

7010368

COVER Use W/Ref. 1 (NLA/ 6698594 pump) - Was 7194123 - A

26

6687932

PIN

27

7008116

FILTER

28

6688015

SCREW

29

6685390

SCREW

30

7010227

COVER Use W/Ref. 1 (NLA/ 6698594 pump)

30

7010227

COVER Use W/Ref. 1 (7013178 pump)

31

6688003

SCREW

32

6689021

SEAL KIT

Выбрано товаров: 34
