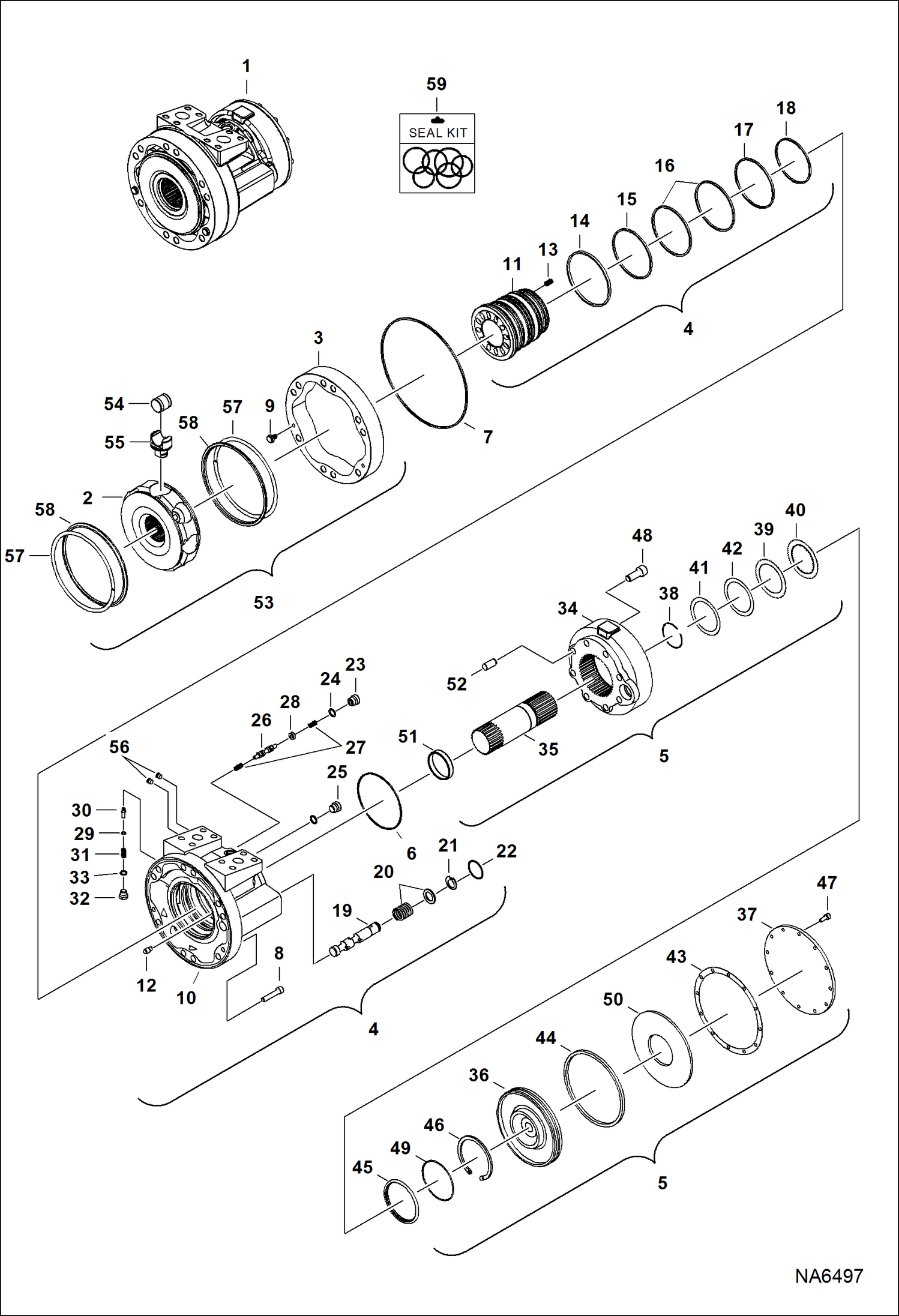

Запчасти Bobcat A-Series HYDROSTATIC MOTOR & BRAKE (S/N A3P612350 & Above, A3P712200 & Above) HYDROSTATIC SYSTEM

1

7023316

MOTOR, DRIVE HYD 2-SPD Model R921811216 - Ref. 2-58

2

ROTOR GROUP NLA - Order Ref. 1

3

7024847

CAM

4

7024848

HOUSING, ASSY

5

6691177

BRAKE ASSY. Ref. 34, 35, 38-42, 48, 51 & 52

6

6675863

QUAD RING

7

6675864

QUAD RING

8

6690039

SCREW

9

6688449

LOCATING PIN

10

7024849

HOUSING

11

6690067

RING

12

6690068

PIN

13

6690031

SPRING

14

6675877

SEAL

15

6675878

SEAL

16

6675879

SEAL

17

6675880

SEAL

18

6690073

SEAL

19

7024850

SPOOL, MOTOR

20

7025119

KIT, SPRING Was 6675883 - B,D

21

7012053

RING, SNAP

22

6689090

O-RING

23

6691227

PLUG

24

6689133

O-RING

25

6689129

PLUG

26

6675866

SPOOL

27

6674841

SPRING

28

6675867

WASHER

29

6674343

SHIM

30

7024852

ORIFICE

31

6674344

SPRING

32

6674345

PLUG

33

6676038

O-RING

34

6690082

HOUSING

35

6690084

SHAFT

36

6675889

PISTON

37

6675890

COVER

38

6690081

CLAMP

39

6674192

BRAKE DISC

40

6674193

BRAKE DISC

41

6690089

SHIM 0,1 mm

42

6674191

SHIM 0,3 mm thick

43

6675892

GASKET

44

6675893

O-RING

45

6689088

QUAD RING

46

6690094

CLAMP

47

6690095

SCREW

48

6690096

SCREW

49

6675897

WASHER

50

6675897

WASHER

51

6675898

BUSHING

52

6691100

PIN

53

ROTARY GROUP NLA - Order Ref. 1

54

6690022

ROLLER

55

6689126

PISTON

56

PLUG NLA

57

6674035

SNAP RING

58

6674036

RING

59

6690005

KIT, SEAL Ref. 6,7, 14-18, 22, 24 & 33
