Запчасти Bobcat A-Series RADIATOR/COOLER ASSEMBLY (Stud Mount Radiator) HYDROSTATIC SYSTEM

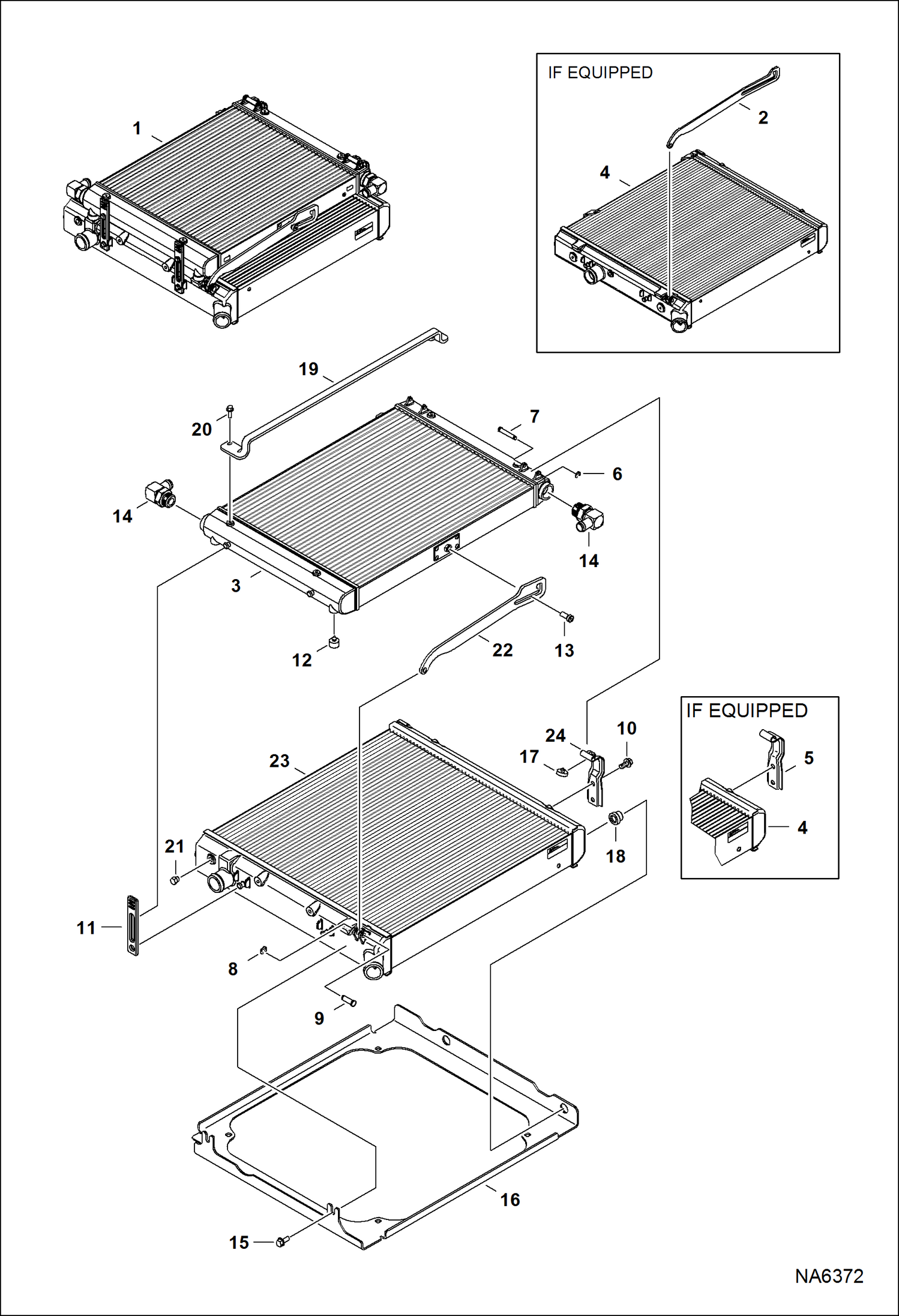

Схема запчастей Bobcat A-Series - RADIATOR/COOLER ASSEMBLY (Stud Mount Radiator) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

EXCHANGER, OIL WATER NLA - Was 7022727 - A

1

EXCHANGER, OIL WATER NLA - Was 7222868 - A

2

7012612

ROD, PROP UP Use W/Ref. 4

3

7012614

EXCHANGER, OIL COOLER

4

EXCHANGER, WATER RADIATOR NLA - Order Ref. 23 - Was 7024102 - A

5

7009263

BRACKET, HINGE FORMED 14 gage - .074'' thickness - Was 7012610 - A

6

7009258

RING, RETAINER

7

7024103

PIN

8

7009261

RING, RETAINER

9

7024104

PIN

10

7009256

BOLT, FLANGE

11

7012611

STRAP, HOLD DOWN

12

7024107

BUMPER

13

7010126

BOLT

14

FITTING, ELBOW NLA - Order Ref. 3 - Was 7022635 - A

15

45C512

BOLT

16

7207437

MOUNT, RADIATOR

17

7012613

BUMPER, RUBBER

18

7208181

BUSHING

19

7169118

GUARD, CONDENSER

20

49C412

BOLT

21

24K4

PLUG

22

7025104

ROD, PROP UP Use W/Ref. 23

23

7025103

EXCHANGER, WATER RADIATOR

24

7025588

BRACKET, HINGE FORMED 11 gage - .119'' thickness

Выбрано товаров: 25
