Запчасти Bobcat A-Series RADIATOR/COOLER ASSEMBLY (Bolt Mounted Radiator) HYDROSTATIC SYSTEM

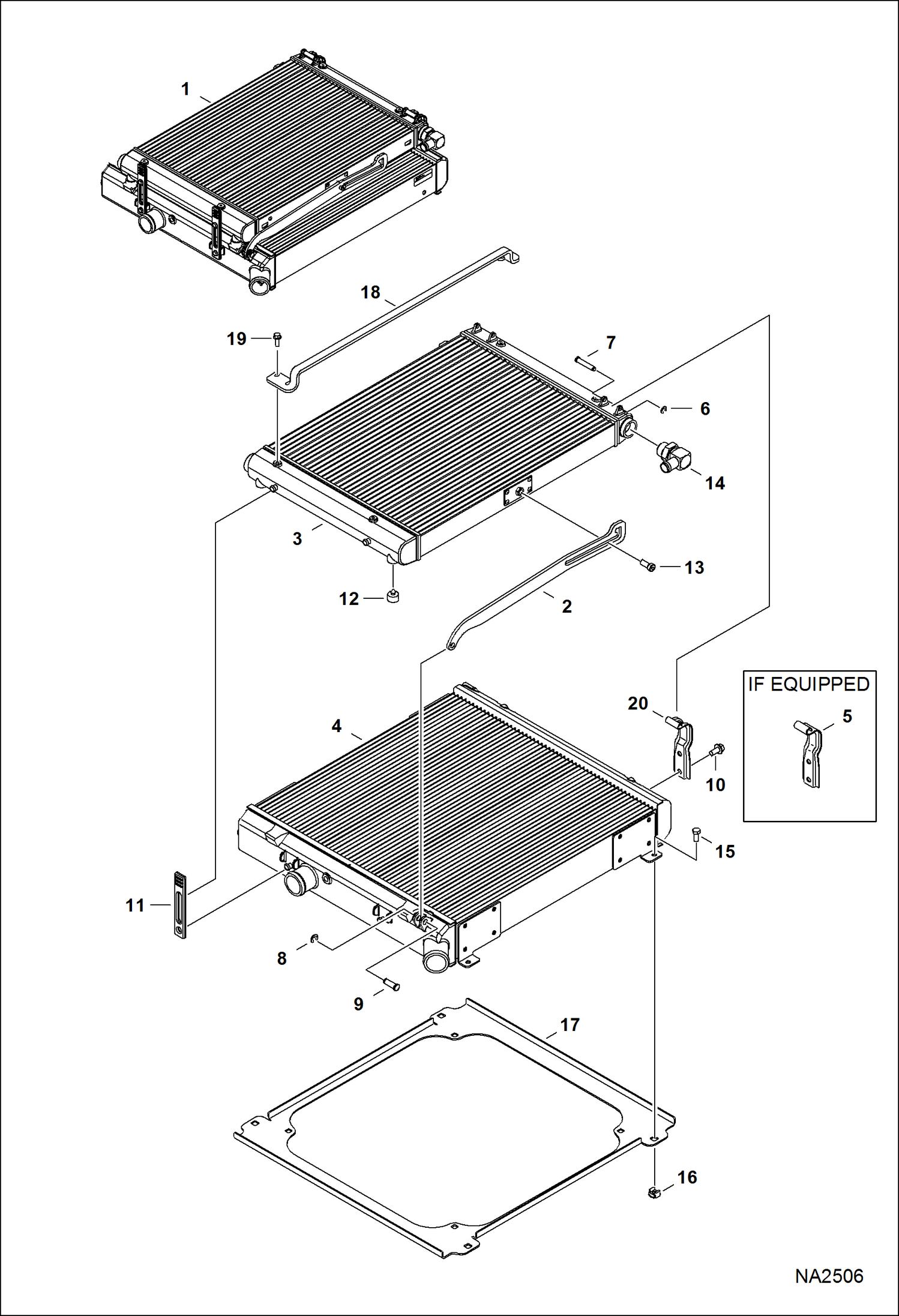

Схема запчастей Bobcat A-Series - RADIATOR/COOLER ASSEMBLY (Bolt Mounted Radiator) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

EXCHANGER, OIL WATER NLA - Was 7178606 - A

2

7012612

ROD, PROP UP

3

EXCHANGER, OIL COOLER See Illustration RADIATOR/COOLER ASSEMBLY/ NA6372 - NLA - Was 7012614 - A

4

EXCHANGER, WATER RADIATOR See BTI420 - NLA - Was 7021027 - A

5

7009263

BRACKET, HINGE FORMED 14 gage - .074'' thickness - Was 7012610 - A

6

7009258

RING, RETAINER

7

7009259

PIN

8

7009261

RING, RETAINER

9

7009260

PIN

10

7009256

BOLT, FLANGE

11

7012611

STRAP, HOLD DOWN

12

7012613

BUMPER, RUBBER

13

7010126

BOLT

14

FITTING, ELBOW NLA - Order Ref. 3 - Was 7022635 - A

15

45C512

BOLT

16

6678765

NUT

17

7142223

MOUNT, EXCHANGER OIL

18

7169118

GUARD, CONDENSER

19

49C412

BOLT

20

7025588

BRACKET, HINGE FORMED 11 gage - .119'' thickness

Выбрано товаров: 20
