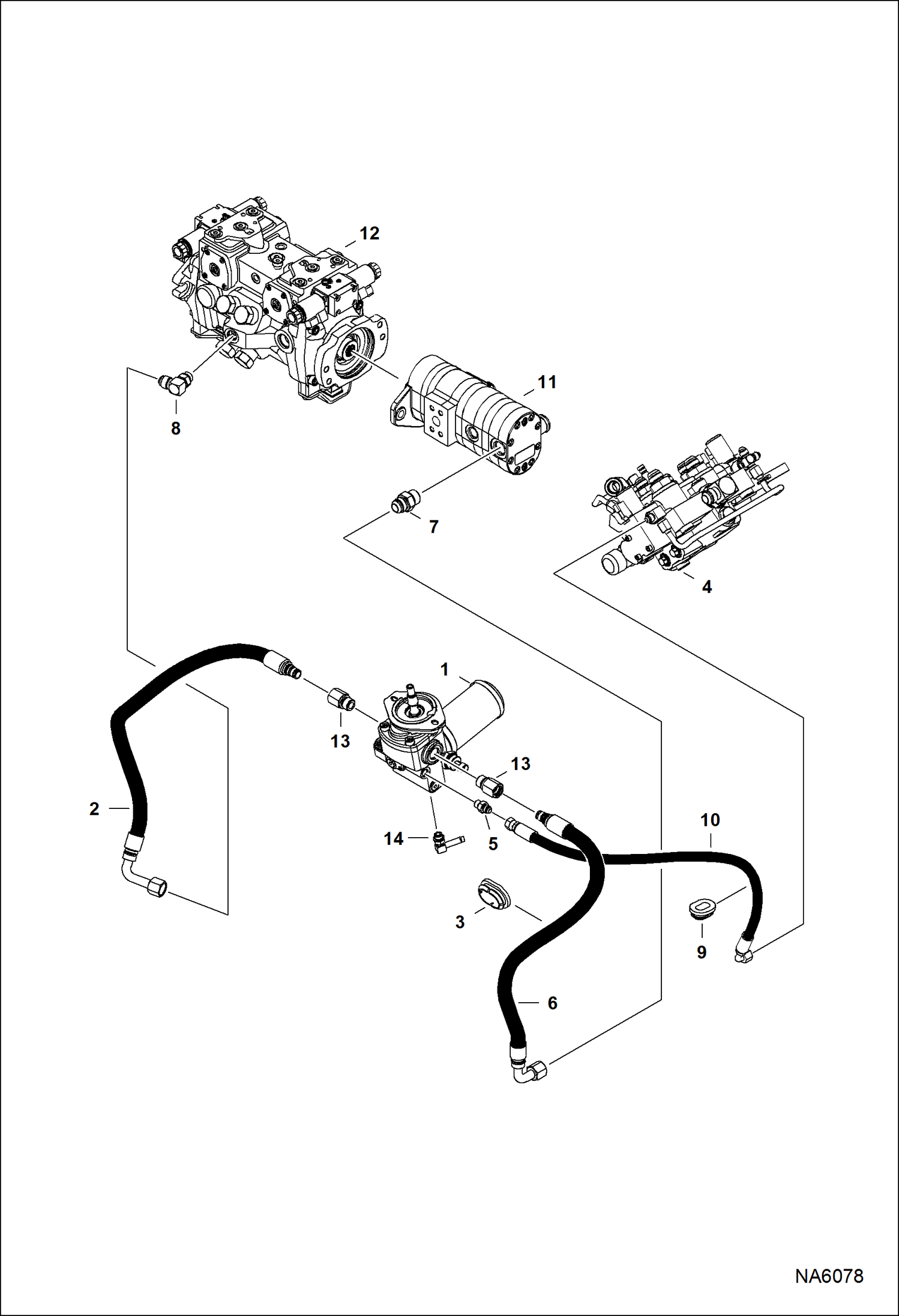

1
7010793
MOTOR, FAN See Illustration COOLING FAN MOTOR/ MS2514
2
7200551
HOSE, HYD ASSY STC Also Order Ref. 13
3
7002740
GROMMET
4
VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1217
5
15KB0606
FITTING, HYD CONNECTOR
5
79K6
O RING 10
6
7200552
HOSE, HYD ASSY STC Also Order Ref. 13
7
15KB1012
FITTING, HYD CONNECTOR
7
79K12
O RING 10
8
17KB1008
FITTING, HYD ELBOW
8
79K8
O RING 10
9
7002739
GROMMET
10
7235469
HOSE, HYD Was 7183112 - A
11
7010317
PUMP, GEAR See Illustration GEAR PUMP/ NA6074
12
PUMP, TANDEM See Illustration HYDROSTATIC PUMP/ NA2992
13
15HB1010
ADAPTER, COUPLER
13
79K10
O RING 10
14
6727313
ELBOW
