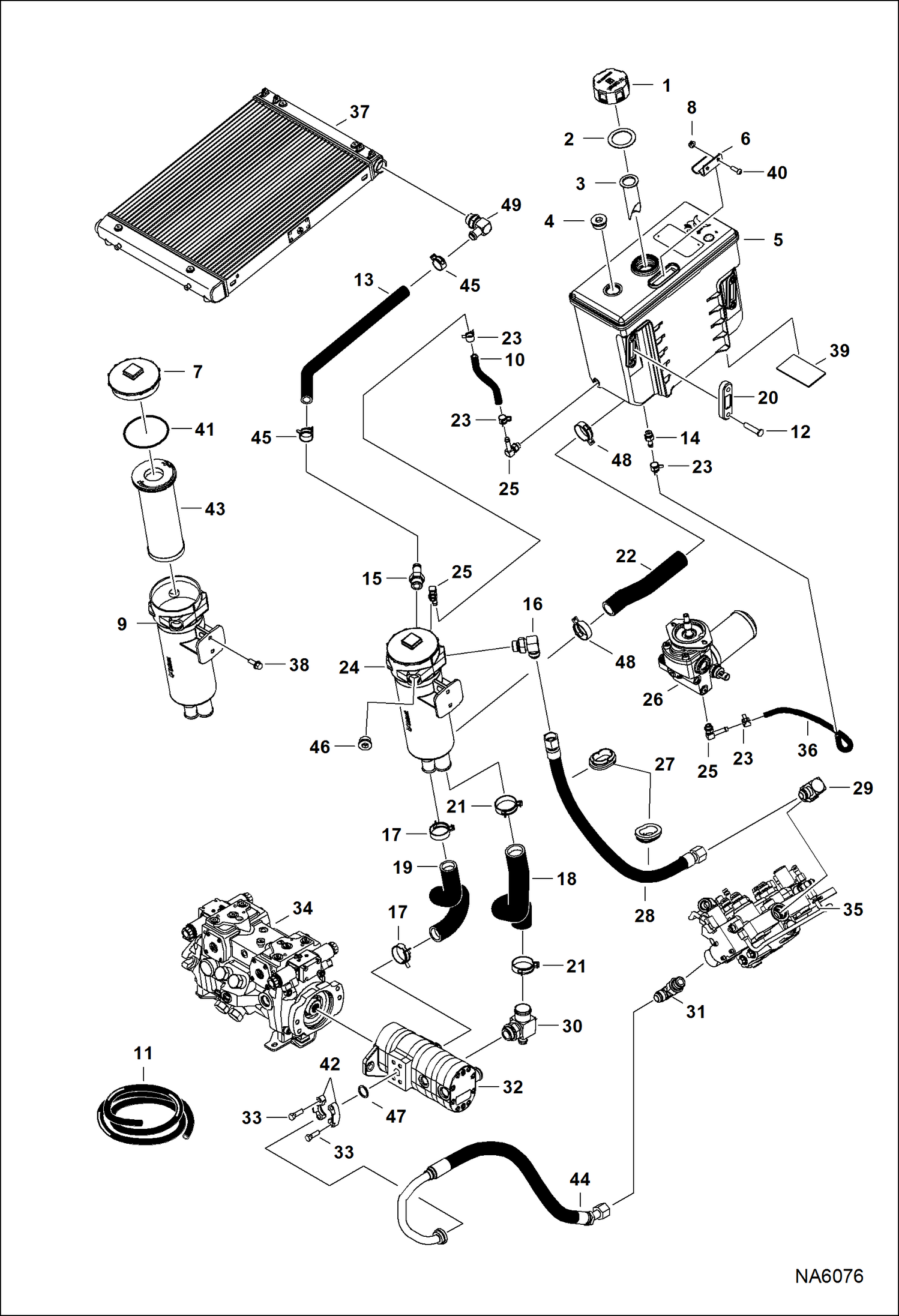

Запчасти Bobcat A-Series HYDROSTATIC CIRCUITRY (Tank & Filter) HYDROSTATIC SYSTEM

1

6727475

CAP, OIL HYD

2

6700631

GASKET

3

7003487

SCREEN

4

47K10

PLUG

4

78K10

O RING

5

7177110

TANK, OIL HYD

6

7165806

BRACKET

7

7012315

CAP, FILTER W/Ref. 41

8

57D5

NUT

9

TANK, HYD FILTERED NLA - Order Ref. 24

10

HOSE NLA - 185 mm (7.3'') long - Order Ref. 11

11

6586251

HOSE bulk - sold per foot

12

BOLT NSS - Order Ref. 20

13

7188701

HOSE, HYD FORMED

14

7158632

CONNECTOR

14

79K4

O RING 10

15

6812865

FITTING

15

79K12

O RING 10

16

17KB1212

FITTING, HYD ELBOW

16

79K12

O RING 10

17

5HM42

HOSECLAMP

18

7188780

HOSE, HYD FORMED

19

7188781

HOSE, HYD FORMED

20

7001421

GUAGE, SIGHT

21

5HM47

CLAMP

22

7189371

HOSE, HYD FORMED

23

5HM16

CLAMP

24

7012312

FILTER, OIL HYD TANK ASSY Ref. 7, 9, 41 & 43

25

6727313

ELBOW

25

79K6

O RING 10

26

7010793

MOTOR, FAN See Illustration COOLING FAN MOTOR/ MS2514

27

7002740

GROMMET

28

7171394

HOSE

29

7101371

ELBOW

29

58K022

O-RING 10

29

79K16

O RING 10

30

7158921

FITTING

30

79K16

O RING 10

31

7101797

ELBOW

31

79K12

O RING 10

32

7010317

PUMP, GEAR See Illustration GEAR PUMP/ NA6074

33

17C620

BOLT

34

PUMP, TANDEM See Illustration HYDROSTATIC PUMP/ NA2992

35

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1217

36

HOSE NLA - 610 mm (24'') long - Order Ref. 11

37

EXCHANGER, OIL COOLER See Illustration RADIATOR/COOLER ASSEMBLY/ NA2506 - W/Ref. 49

38

35C616

BOLT 5

39

7181309

PAD, WEAR

40

53C516

BOLT

41

7015308

SEAL

42

19J12

CLAMP

43

7012314

FILTER, OIL HYD ASSY Also Order Ref. 41

44

7197534

HOSE, HYD

45

5HM27

CLAMP

46

47K8

PLUG

46

78K8

O RING

47

55K214

O-RING

48

5HM42

HOSECLAMP

49

FITTING, ELBOW NLA - Order Ref. 37 - Was 7022635 - A
