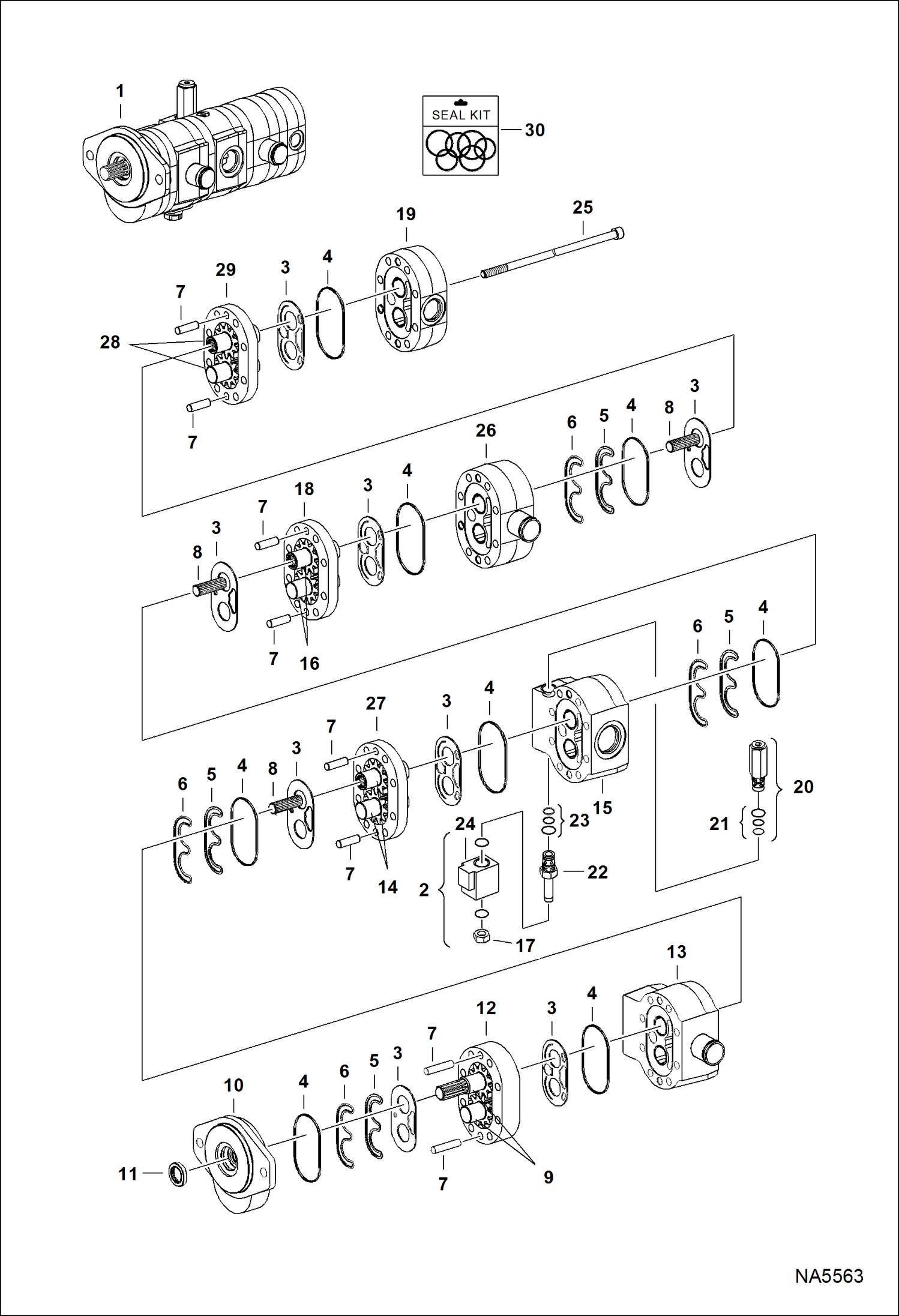

Запчасти Bobcat A-Series HIGH FLOW HYDRAULICS (Gear Pump) HIGH FLOW HYDRAULICS

1

7010316

PUMP, GEAR Model 83006252

2

7008832

VALVE, SOLENOID Ref. 17 & 22-24

3

PLATE, WEAR NSS

4

SEAL NSS

5

SEAL, LOAD NSS

6

SEAL, PRE-LOAD NSS

7

PIN NSS

8

CONNECTOR, SPLINE NSS

9

GEAR SET NSS - drive

10

HOUSING, FRONT NSS

11

SEAL, SHAFT NSS

12

HOUSING, GEAR NSS - #1

13

HOUSING, CENTER NSS

14

GEAR SET NSS - #2

15

HOUSING, CENTER NSS

16

GEAR SET NSS - #3

17

6690104

NUT

18

HOUSING, GEAR NSS - #3

19

HOUSING, REAR NSS

20

7008831

VALVE, RELIEF

21

6683206

SEAL KIT

22

7008830

VALVE, SOLENOID

23

7010749

KIT, SEAL

24

7008829

COIL

25

BOLT NSS

26

HOUSING, CENTER NSS - #3

27

HOUSING, GEAR NSS - #2

28

GEAR SET NSS - #4

29

HOUSING, GEAR NSS - #4

30

6688321

SEAL KIT Ref. 3-6 & 11
