Запчасти Bobcat A-Series TILT CYLINDER (RH) (516,4 mm - 20.33 Case Tube Length) HYDRAULIC SYSTEM

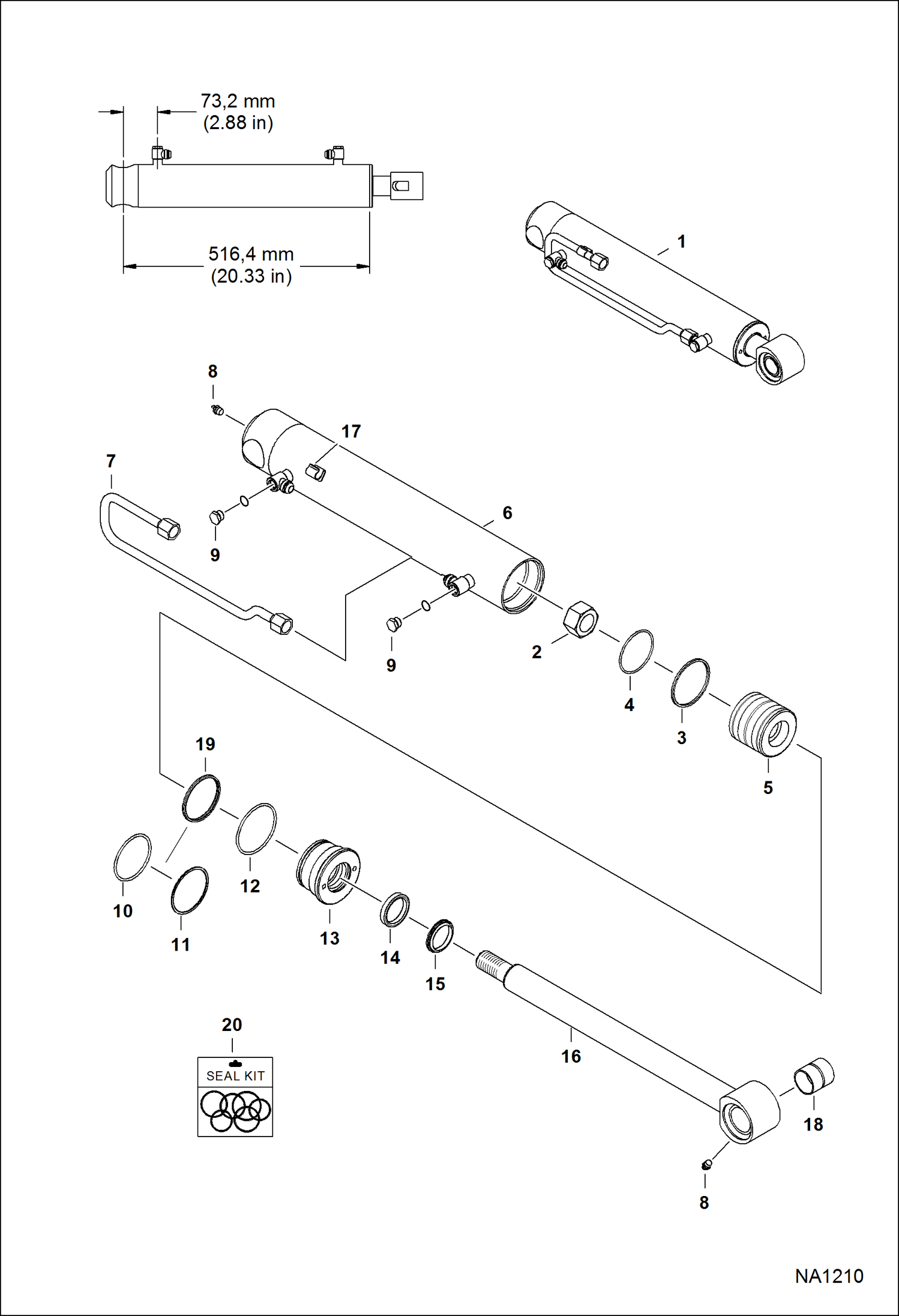

Схема запчастей Bobcat A-Series - TILT CYLINDER (RH) (516,4 mm - 20.33 Case Tube Length) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

CYLINDER, TILT NLA - Ref. 2-19 - Order 7235736 & 7235738 tilt cylinder - before ordering repair parts, make sure that this is the correct style cylinder - note the length shown on the drawing page - W

2

6810539

NUT

3

947088

RING, BACK-UP

4

54K30218

O-RING

5

PISTON, CYL TILT NLA - Order 7235736 & 7235738 tilt cylinder - Was 7152338 - A

6

TUBE, CASE CYL NLA - Order 7235736 & 7235738 tilt cylinder - Was 7154162 - A

7

7154163

TUBELINE, HYD

8

10H25

FITTING, GREASE 5

9

6812171

PLUG

10

54K40224

O-RING

11

73K232

RING, BACK-UP back-up

12

58K234

O RING 10 Was 54K40300 - A

13

HEAD, CYL LIFT NLA - Order 7235736 & 7235738 tilt cylinder - Was 6804427 - A

14

6669267

SEAL

15

6687000

WIPER ROD

16

SHAFT NLA - Order 7235736 & 7235738 tilt cylinder - Was 7150359 - A

17

6690911

CLAMP

18

7150182

BUSHING wear

19

7008355

SEAL, QUAD

20

7137939

KIT, SEAL Ref. 2-4, 12, 14, 15 & 19

Выбрано товаров: 20
