Запчасти Bobcat A-Series AUXILIARY HYDRAULICS (S/N A3P611542 & Above, A3P711566 & Above) HYDRAULIC SYSTEM

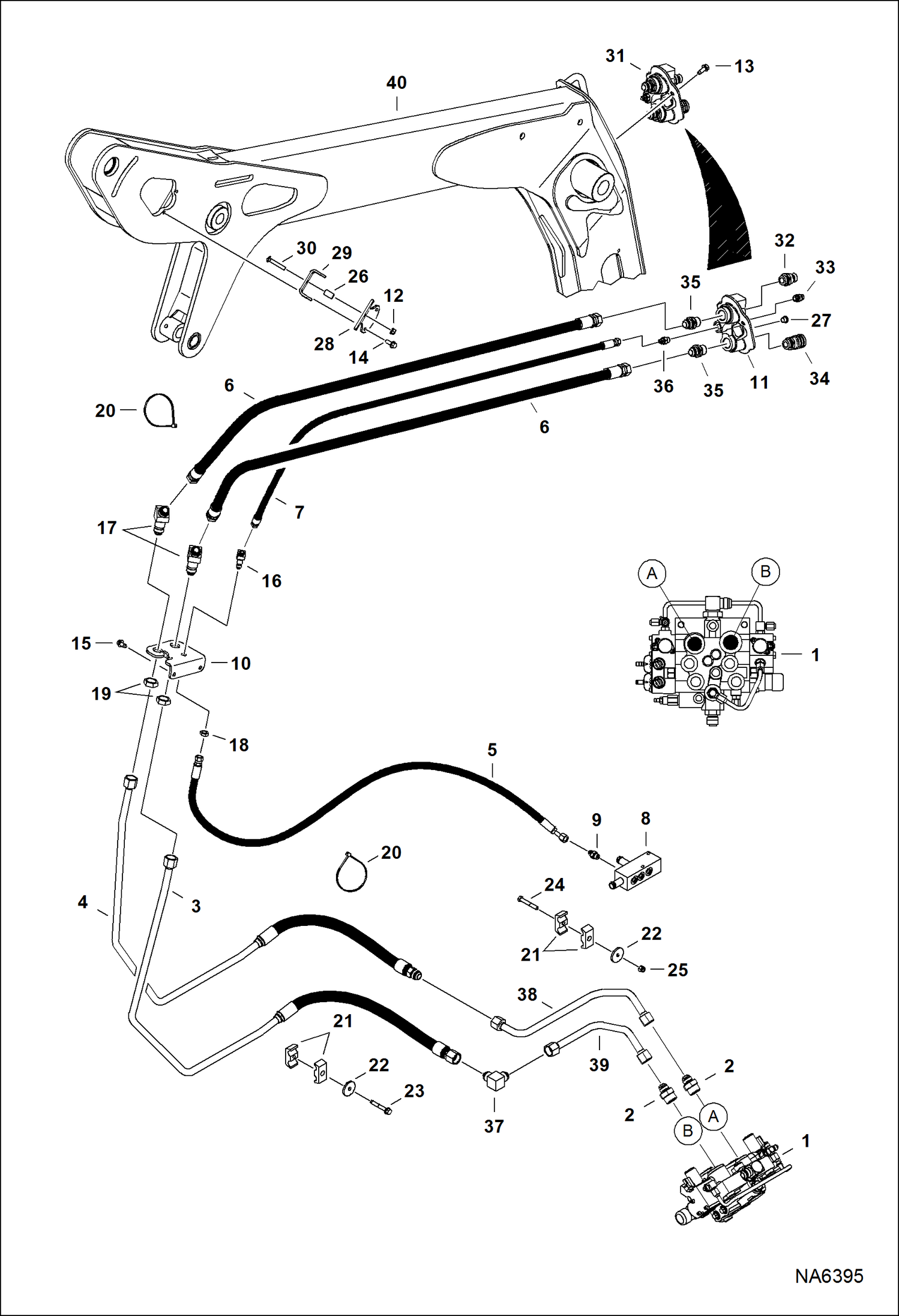

Схема запчастей Bobcat A-Series - AUXILIARY HYDRAULICS (S/N A3P611542 & Above, A3P711566 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7216110

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6558

2

15KB1216

FITTING, HYD CONNECTOR

2

79K16

O RING 10

3

7211830

HOSE, HYD

3

7225569

HOSE, HYD

4

7211829

HOSE, HYD

4

7225570

HOSE, HYD

5

6732083

HOSE

6

7162864

HOSE, HYD ASSY

7

7213215

HOSE HYDRAULIC ASSY

8

7201981

MANIFOLD, DRAIN CASE

9

15KB0606

FITTING, HYD CONNECTOR

9

79K6

O RING 10

10

7156363

MOUNT, BLKHD

11

BLOCK NSS - Order Ref. 31

12

89D6

NUT

13

35C616

BOLT 5

14

84G3732

BOLT

15

84G3712

BOLT 5

16

46K5

ELBOW

17

46K8

ELBOW

18

86F5

NUT

19

86F8

NUT 5

20

6624289

STRAP, TIE

21

6592506

CLAMP

22

872229

WASHER

23

84G3740

BOLT

24

17C640

BOLT 5

25

59D6

NUT

26

7199872

SPACER, TUBE

27

6697942

PLUG, NYLON

28

7199814

CLAMP, HOSE

29

7199815

CLAMP, HOSE

30

7199946

BOLT

31

7141939

BLOCK, COUPLER assy - Ref. 11 & 32-36

32

6679837

COUPLER

33

6679838

KIT, COUPLER male

34

6680018

COUPLER, KIT female

35

6679836

ADAPTER

36

15KB0606

FITTING, HYD CONNECTOR

36

79K6

O RING 10

37

77F8

ELBOW

38

7154522

TUBELINE

39

7154523

TUBELINE

40

ARM, LIFT ASSY

Выбрано товаров: 45
