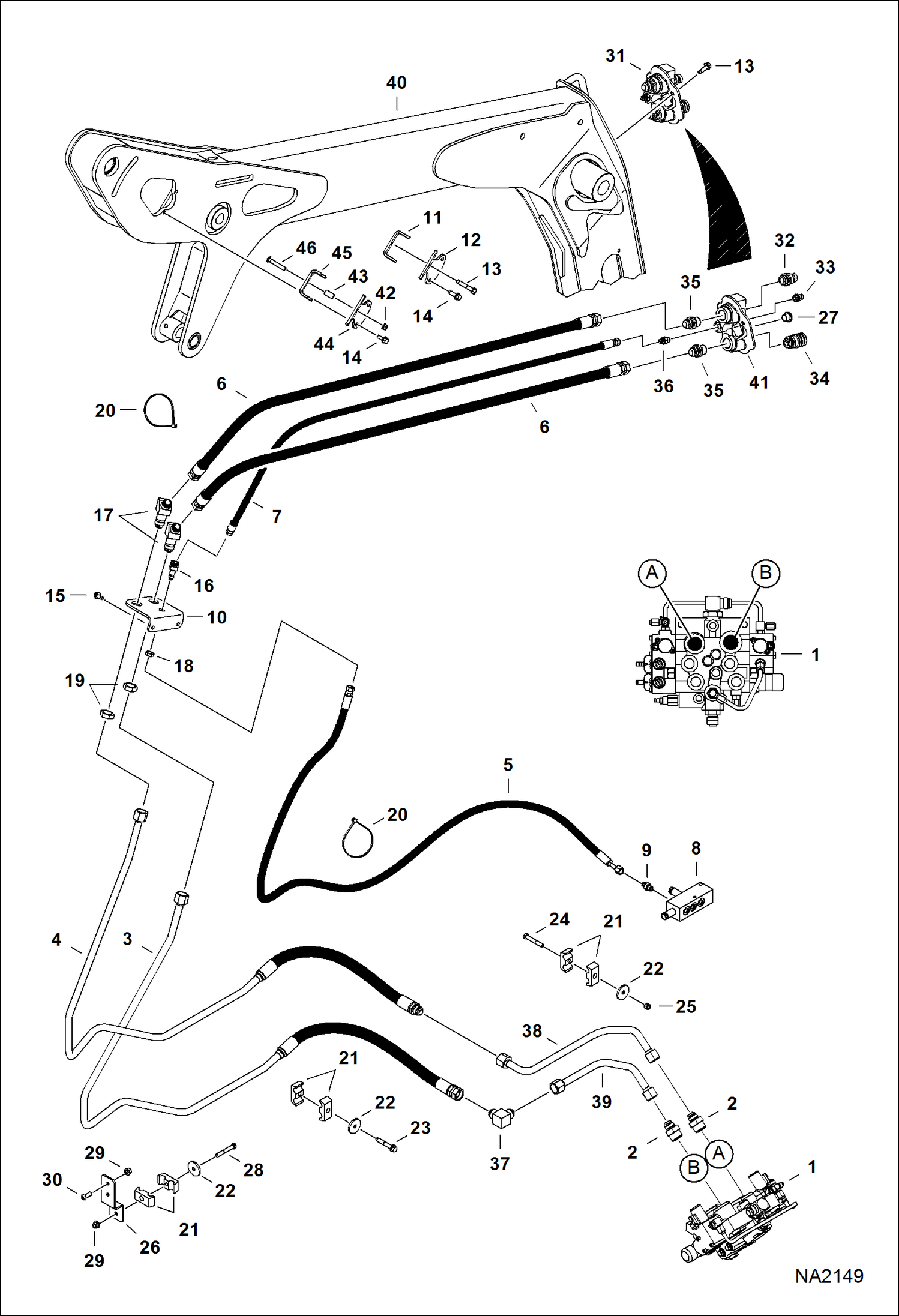

Запчасти Bobcat A-Series AUXILIARY HYDRAULICS (S/N A3P611001 - 11541, A3P711001 - 11565) HYDRAULIC SYSTEM

1

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1217

2

15KB1216

FITTING, HYD CONNECTOR

2

79K16

O RING 10

3

7178418

HOSE, HYD ASSY

4

7178419

HOSE, HYD ASSY

5

7175559

HOSE, HYD

6

7162864

HOSE, HYD ASSY

7

7213215

HOSE HYDRAULIC ASSY Was 7162866 - A

8

7201981

MANIFOLD, DRAIN CASE

9

15KB0606

FITTING, HYD CONNECTOR

9

79K6

O RING 10

10

7156363

MOUNT, BLKHD

11

CLAMP, HOSE NLA - Order Ref. 42-46 Was 7161042 - A

12

CLAMP, HOSE NLA - Order Ref. 42-46 Was 7161043 - A

13

35C616

BOLT 5 Was 84G3716 - B

14

84G3732

BOLT

15

84G3712

BOLT 5

16

46K5

ELBOW

17

46K8

ELBOW

18

86F5

NUT

19

86F8

NUT 5

20

6624289

STRAP, TIE

21

6592506

CLAMP

22

872229

WASHER

23

84G3740

BOLT

24

17C640

BOLT 5

25

59D6

NUT

26

7178141

MOUNT, HOSE

27

6697942

PLUG, NYLON

28

17C644

BOLT

29

57D6

NUT 5

30

10C616

BOLT 10

31

7141939

BLOCK, COUPLER assy - Ref. 32-36 & 41

32

6679837

COUPLER

33

6679838

KIT, COUPLER male

34

6680018

COUPLER, KIT female

35

6679836

ADAPTER

36

15KB0606

FITTING, HYD CONNECTOR

36

79K6

O RING 10

37

77F8

ELBOW

38

7154522

TUBELINE

39

7154523

TUBELINE

40

ARM, LIFT ASSY See Illustration LIFT ARM & BOB-TACH/ NA2092

41

BLOCK NSS - Order Ref. 31

42

89D6

NUT

43

7199872

SPACER, TUBE

44

7199814

CLAMP, HOSE

45

7199815

CLAMP, HOSE

46

7199946

BOLT
