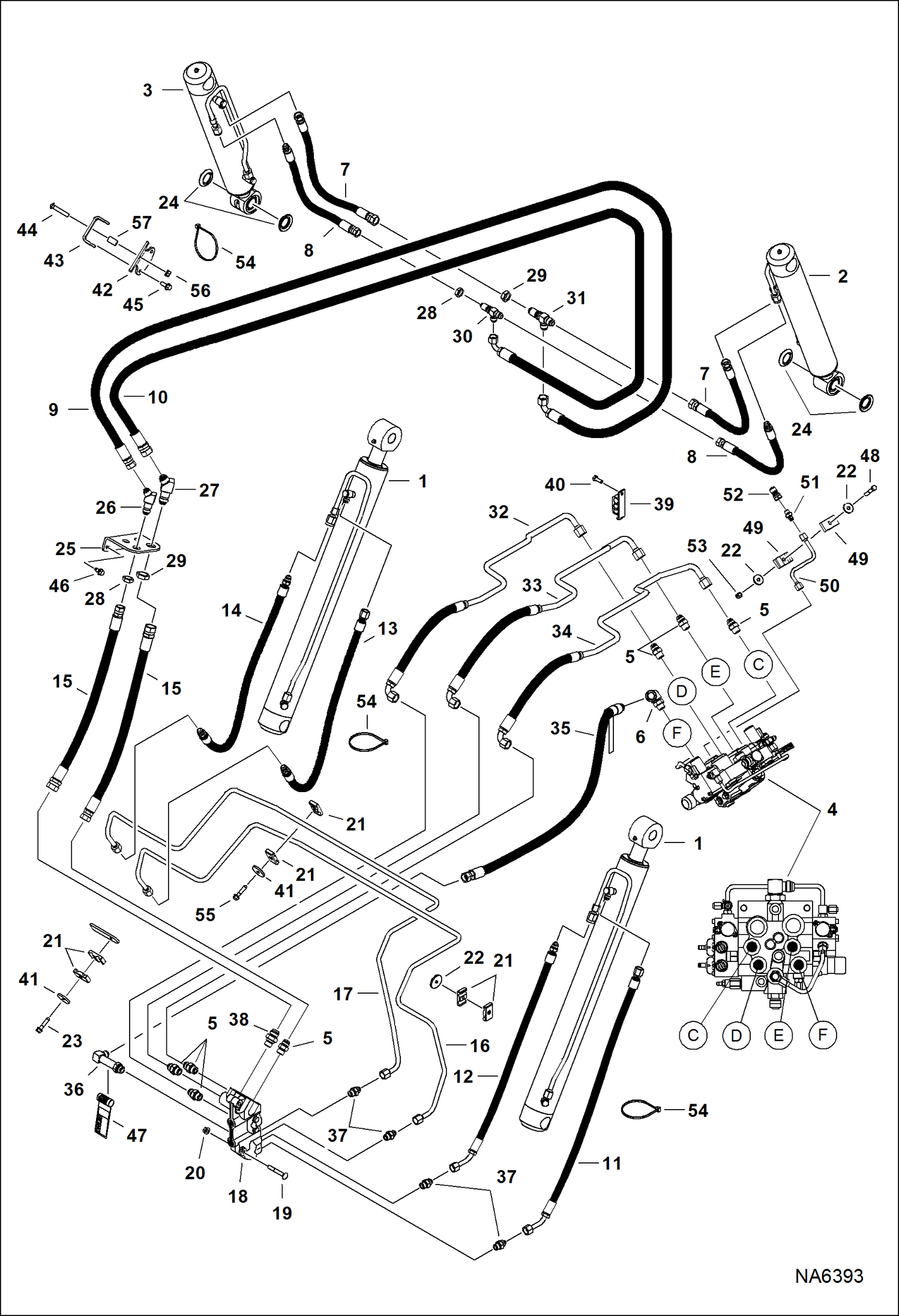

Запчасти Bobcat A-Series HYDRAULIC CIRCUITRY (W/BPV Junction Block) (S/N A3P611542 & Above, A3P711566 & Above) HYDRAULIC SYSTEM

1

CYLINDER, LIFT See Illustration LIFT CYLINDER/ NA6139

2

CYLINDER, TILT - RH

3

CYLINDER, TILT - LH

4

7216110

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6558

5

15KB1010

FITTING, HYD CONNECTOR

5

79K10

O RING 10

6

7109623

ELBOW

6

79K10

O RING 10

7

7153006

HOSE, HYD

8

7153008

HOSE, HYD

9

7162867

HOSE, HYD ASSY

10

7162868

HOSE, HYD ASSY

11

7155829

HOSE, HYD

12

7155830

HOSE, HYD

13

7212038

HOSE, HYD

14

7212037

HOSE, HYD

15

7156319

HOSE, HYD

16

7211820

TUBELINE, HYD

17

7211821

TUBELINE, HYD

18

7001921

BLOCK, JUNCTION

19

37C644

BOLT

20

83D6

NUT 5

21

6701892

CLAMP

22

619021

WASHER, 5

23

84G3728

BOLT

24

6689112

SEAL

25

7156362

MOUNT, BLKHD

26

46K7

ELBOW

27

46K8

ELBOW

28

86F7

LOCK NUT

29

86F8

NUT 5

30

91K6

TEE

31

91K7

FITTING

32

7152003

HOSE, HYD

33

7152004

HOSE, HYD

34

7152005

HOSE, HYD

35

7168336

HOSE, HYD available only as an assembly W/one danger decal installed near the male threaded end of the hose

35

7170355

DECAL, DANGER

36

7183605

KIT, FITTING W/DECAL W/Ref. 47 - this elbow must always display the danger decal

36

79K10

O RING 10

37

15KB0808

FITTING, HYD CONNECTOR

37

79K8

O RING 10

38

15KB1210

FITTING, HYD CONNECTOR

38

79K12

O RING 10

39

7157358

CLAMP

40

35C616

BOLT 5

41

872229

WASHER

42

7199814

CLAMP, HOSE

43

7199815

CLAMP, HOSE

44

7199946

BOLT

45

35C616

BOLT 5

46

84G3716

SCREW 5

47

7170355

DECAL, DANGER

48

17C632

BOLT 5

49

7183298

CLAMP

50

7182882

TUBELINE, HYD

51

15KB0606

FITTING, HYD CONNECTOR

51

79K6

O RING 10

52

6684125

COUPLER

53

85D6

NUT, 5

54

6624289

STRAP, TIE

55

84G3740

BOLT

56

89D6

NUT

57

7199872

SPACER, TUBE
