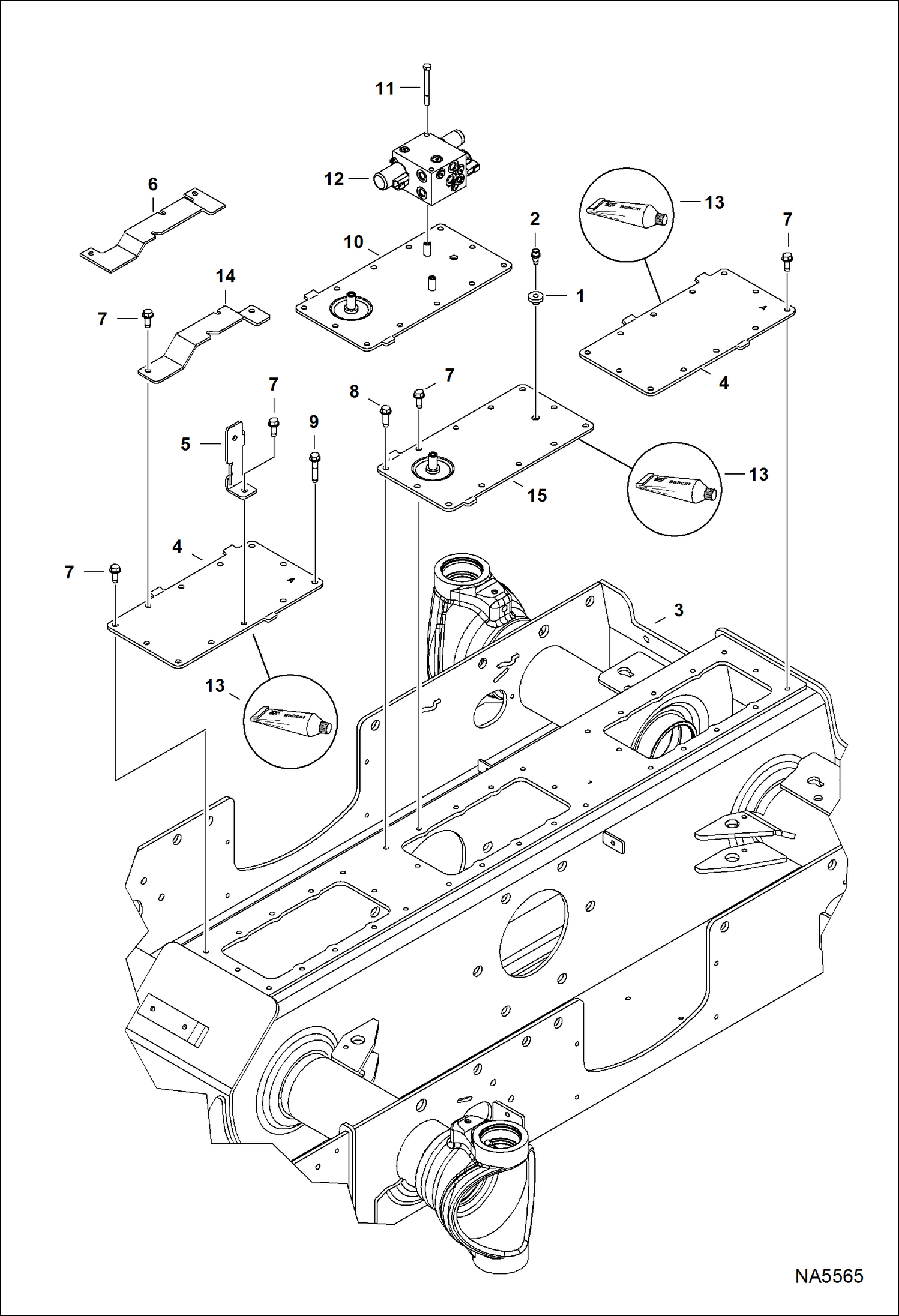

Запчасти Bobcat A-Series CHAINCASE COVERS DRIVE TRAIN

1

6553411

BUSHING

2

6680970

BREATHER

3

CHAINCASE See Illustration DRIVE TRAIN/ NA6072

4

7129987

COVER

5

7151466

BRACKET

6

MOUNT, MANIFOLD DRAIN NLA - Order Ref. 14 - Was 7157080 - A

7

84G3716

SCREW 5

8

84G3720

BOLT

9

84G3732

BOLT

10

7153655

COVER, BRAKE ASSY

11

17C552

BOLT

12

6697971

VALVE, 2 SPEED See Illustration 2-SPEED VALVE/ NA2164

13

6685372

SEALANT, GASKET LIQUID 10.1 OZ tube - 0.57 kg (20 oz)

14

7201283

MOUNT, MANIFOLD DRAIN

15

7213128

COVER, BRAKE
