Запчасти Bobcat A-Series OIL SEPARATOR POWER UNIT

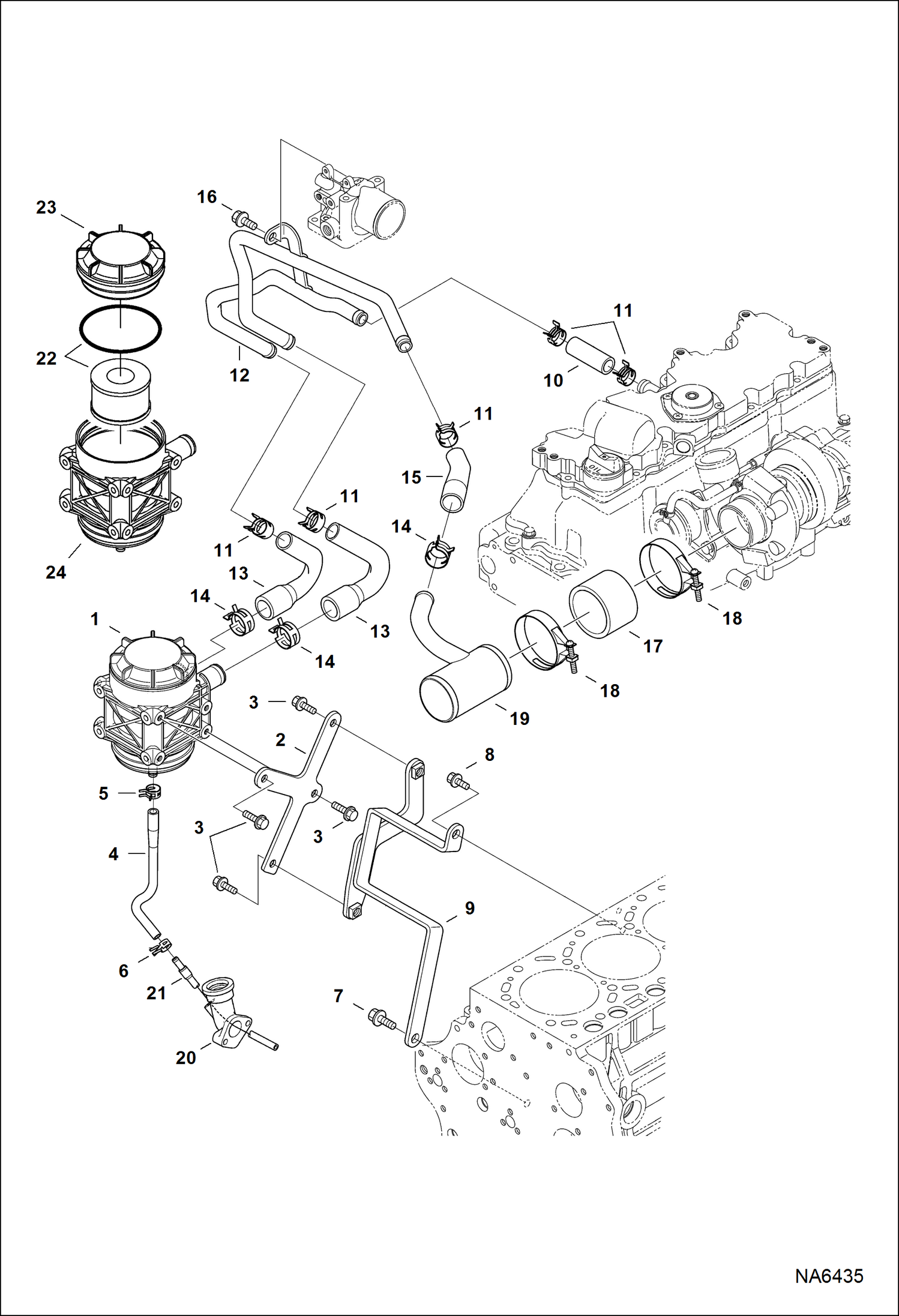

Схема запчастей Bobcat A-Series - OIL SEPARATOR POWER UNIT

Артикул

Название

Примечание

Количество

1

7024252

FILTER, VENTILATION CRANKASE ASSY

2

7024258

BRACKET, SEPARATOR

3

6680801

BOLT

4

7024254

TUBE, OIL

5

7024242

CLAMP, HOSE

6

7024241

CLAMP, HOSE

7

7020952

BOLT, FLANGE

8

6680662

BOLT

9

7024259

BRACKET, SEPARATOR

10

7024256

HOSE, AIR FORMED

11

6675618

CLAMP

12

7024285

PIPE, SEPARATOR

13

7024269

HOSE, AIR FORMED

14

6680903

CLAMP

15

7024284

TUBE, BREATHER

16

6653579

BOLT

17

7024270

HOSE, AIR INTAKE

18

6689556

CLAMP, PIPE

19

7024253

PIPE, BREATHER

20

7024291

FLANGE, OIL INLET See Illustration OIL PAN/ NA6423 - W/Ref. 21

21

7024255

PIPE, OIL

22

7024701

KIT, FILTER VENTILATION CRANKCASE

23

CAP, FILTER VENTILATION NSS - Order Ref. 1

24

HOUSING, FILTER VENTILATION NSS - Order Ref. 1

Выбрано товаров: 24
