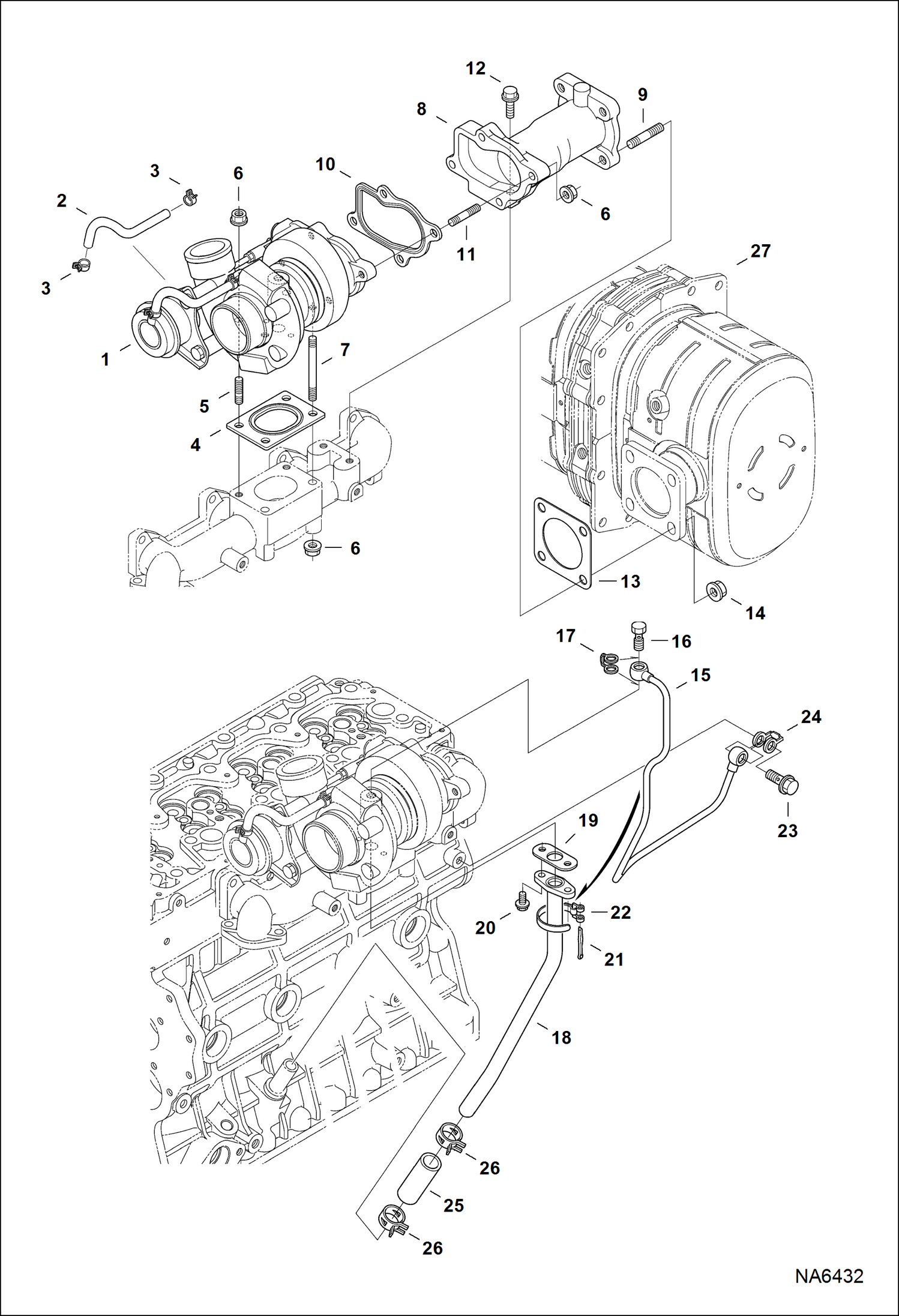

Запчасти Bobcat A-Series TURBOCHARGER POWER UNIT

1

7024308

TURBOCHARGER W/Ref. 2-3

2

6688069

HOSE W/Ref. 3

3

CLAMP, HOSE NLA - Order Ref. 2

4

7008514

GASKET, TURBO

5

7010134

STUD

6

7024379

NUT, FLANGE

7

7010136

STUD

8

7024286

FLANGE, MUFFLER

9

3974913

STUD

10

6691588

GASKET

11

3974913

STUD

12

7024294

BOLT, FLANGE

13

7024304

GASKET, FLANGE MUFFLER

14

6652656

NUT

15

7024393

PIPE, OIL

16

6680900

BOLT

17

7000642

WASHER, SEALING COPPER

18

7024394

PIPE, OIL

19

7008516

GASKET

20

29CM612

BOLT, FLANGED

21

6680576

PIN

22

6685601

CLAMP

23

7022765

BOLT, EYE

24

6689331

GASKET

25

7024383

HOSE, RUBBER

26

6680903

CLAMP

27

MUFFLER, DPF See Illustration DPF/ NA6434 NLA - Was 7024287 - A
