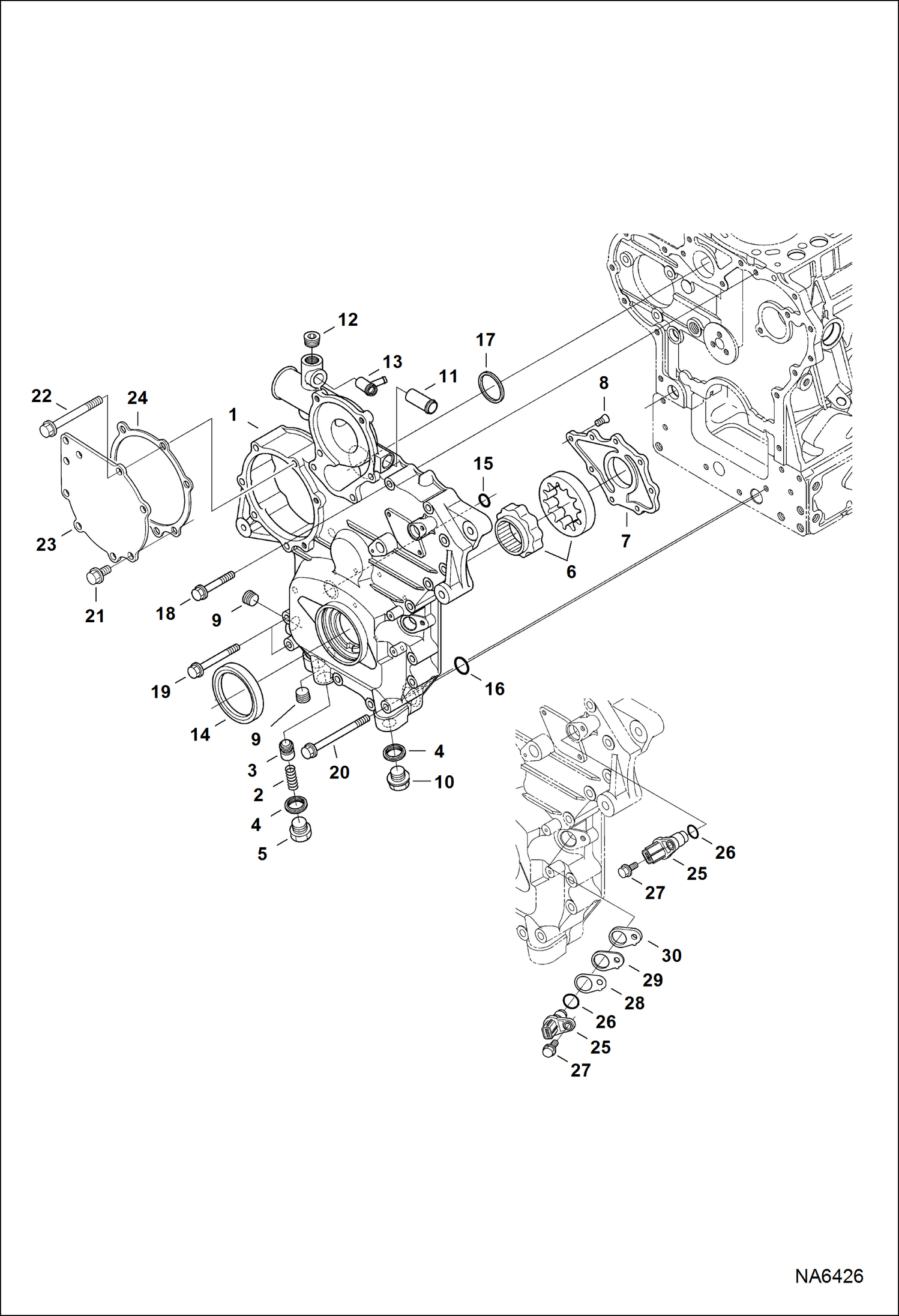

Запчасти Bobcat A-Series GEARCASE POWER UNIT

1

7024279

HOUSING, GEAR W/Ref. 2-13

2

6680673

SPRING

3

6685929

RELIEF VALVE

4

6691295

GASKET

5

6680675

PLUG

6

6680676

ROTOR

7

6680677

COVER

8

6680678

SCREW

9

6680679

PLUG

10

6691294

PLUG

11

6680689

ADAPTER

12

7024260

PLUG

13

7024353

PIPE, WATER

14

6680680

SEAL

15

6680681

O-RING

16

6680682

O-RING

17

7012203

GASKET

18

6693483

BOLT

19

6693485

BOLT

20

6693484

BOLT

21

6680801

BOLT

22

6680802

BOLT

23

6685947

COVER

24

6685948

GASKET

25

7024401

SENSOR, MAGNETIC W/Ref. 26

26

7024405

O-RING

27

7024230

BOLT, FLANGE

28

7024261

SHIM 0,25 mm

29

7024262

SHIM 0,50 mm

30

7024263

SHIM 1,00 mm
