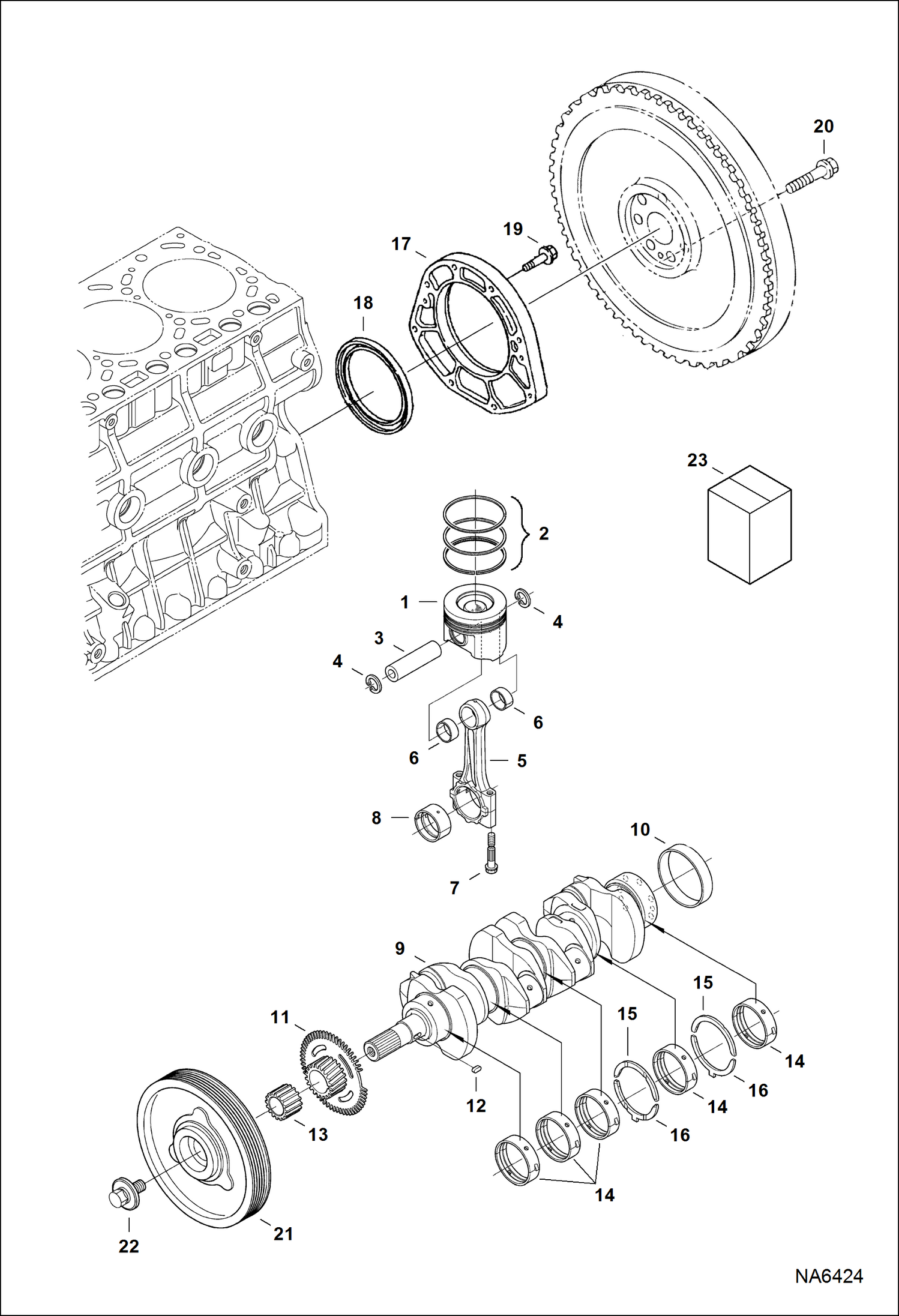

Запчасти Bobcat A-Series PISTON & CRANKSHAFT POWER UNIT

1

7024389

PISTON, ENG std

1

7024390

PISTON, ENG OS +0,50 mm

2

7024328

RING, PISTON std

2

7024329

RING, PISTON +0,50 mm

3

6680725

PIN

4

6680726

SNAP RING

5

7024392

ROD, CONNECTING W/Ref. 6-8

6

7024391

BUSHING, PIN PISTON

7

6698599

BOLT

8

6680730

ROD BEARING std/blue/set

8

6680731

BEARING, ROD CONNECTING std/set

8

6680732

ROD BEARING -0,20 mm/green/set

8

6680733

ROD BEARING -0,40 mm/red/set

9

7024264

CRANKSHAFT

10

6680735

SLEEVE

11

7024265

GEAR, CRANKSHAFT

12

3974226

KEY

13

7022764

GEAR, OIL PUMP DRIVE

14

6680738

MAIN BEARING std set

14

6680739

MAIN BEARING -0,20 mm/set

14

6680740

MAIN BEARING -0,40 mm/set

15

6680741

THRUST WASHER std

15

6680742

THRUST WASHER +0,20 mm

15

6680743

THRUST WASHER +0,40 mm

16

6680744

THRUST WASHER std

16

6680745

THRUST WASHER +0,20 mm

16

6680746

THRUST WASHER +0,40 mm

17

6680704

COVER W/Ref. 18

18

6680705

SEAL

19

6680706

BOLT

20

6680747

BOLT, FLYWHEEL

21

7022346

PULLEY, DRIVE

22

7020991

BOLT

23

7025196

KIT, PISTON ENG std - includes qty 4 ea of Ref. 1-4 & qty 8 of Ref. 6

23

7025197

KIT, PISTON ENG OS + 0,50 mm - includes qty 4 ea of Ref. 1-4 & qty 8 of Ref. 6
