Запчасти Bobcat A-Series CRANKCASE POWER UNIT

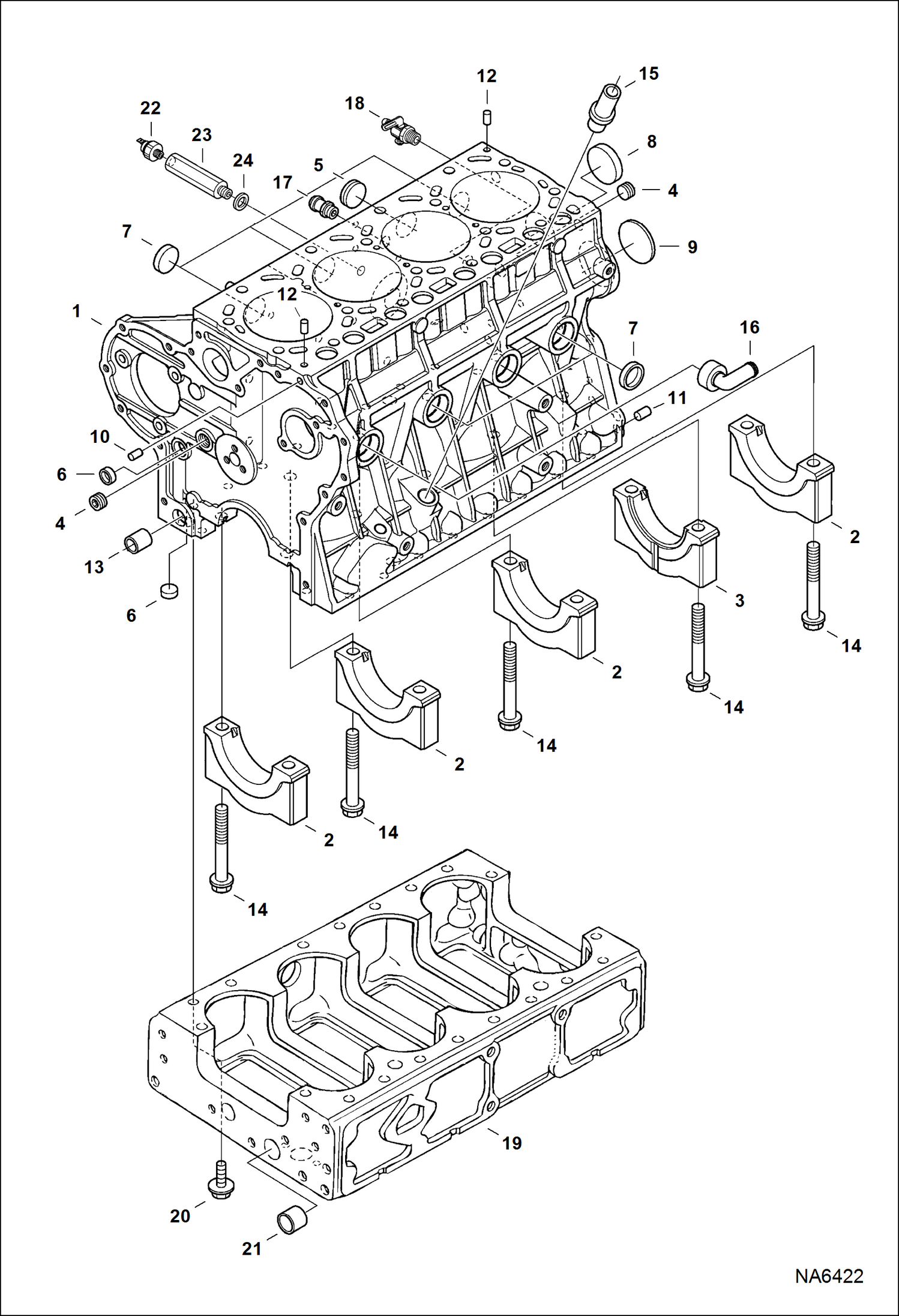

Схема запчастей Bobcat A-Series - CRANKCASE POWER UNIT

Артикул

Название

Примечание

Количество

1

7024361

BLOCK, ENG

2

CAP, BEARING NLA - Order Ref. 1

3

CAP, BEARING NLA - Order Ref. 1

4

6680636

PLUG

5

6672354

PLUG

6

3974056

CAP

7

3974389

CAP, SEALING

8

3974390

PLUG

9

6680640

PLUG

10

21JM814

PIN

11

6685918

PIN

12

3974037

PIN

13

7017198

PIN, STRAIGHT

14

6680645

BOLT

15

6680649

TUBE

16

7017204

TUBE, WATER ELBOW

17

6680646

ADAPTER

18

6698522

VALVE, DRAIN

19

6698527

BLOCK, ENG. LOWER See Illustration OIL PAN/ NA6423

20

6680654

BOLT

21

7017199

PIN, STRAIGHT

22

7024247

SWITCH, PRESS OIL ENG

23

7024295

ADAPTER

24

6685962

WASHER, SEALING ALUMINUM

Выбрано товаров: 24
