Запчасти Bobcat A-Series LOWER GASKET KIT POWER UNIT

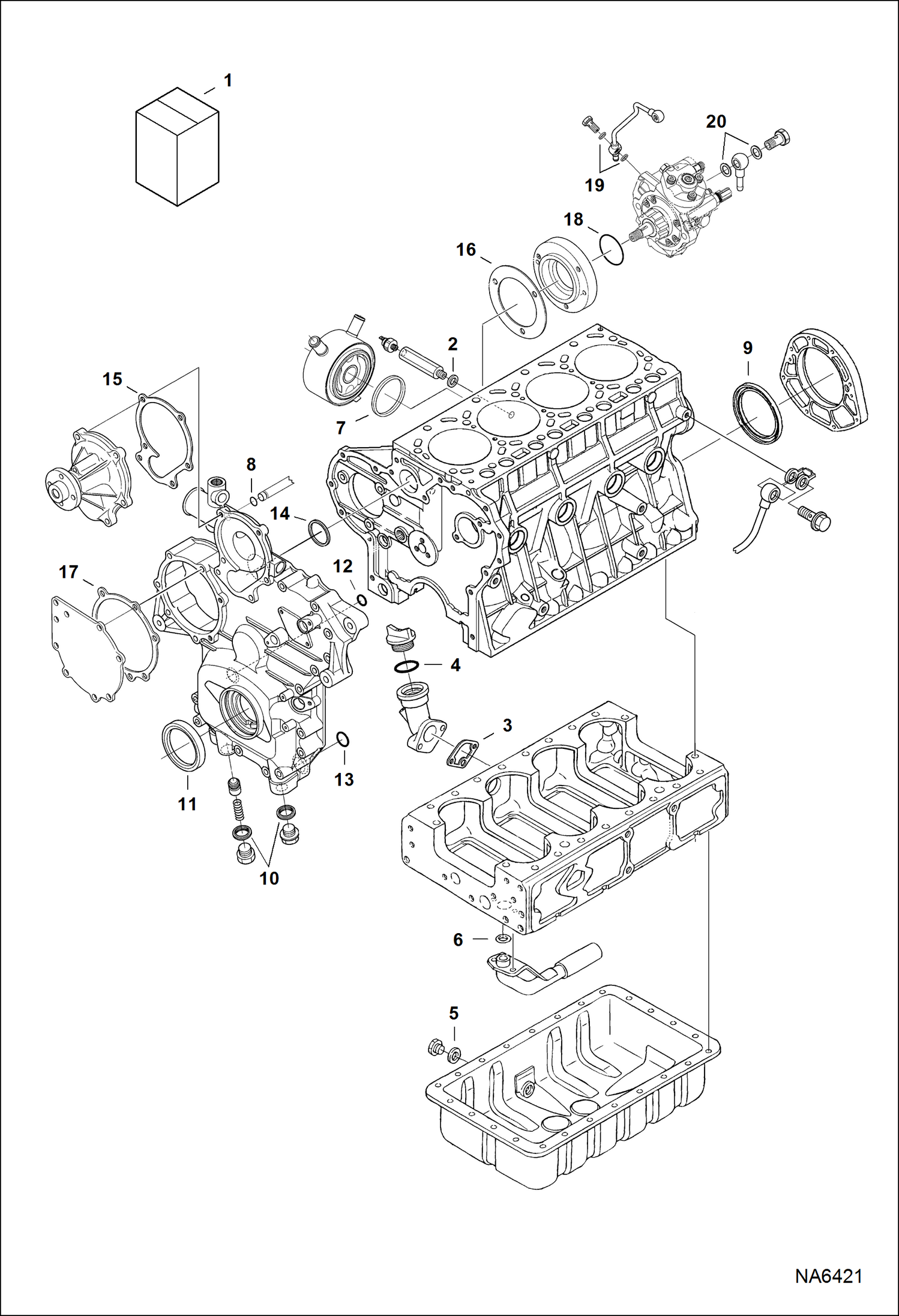

Схема запчастей Bobcat A-Series - LOWER GASKET KIT POWER UNIT

Артикул

Название

Примечание

Количество

1

7024931

KIT, GASKET ENG LOWER Order Ref. 2-21

2

6685962

WASHER, SEALING ALUMINUM See Illustration CRANKCASE/ NA6422

3

6685923

GASKET See Illustration OIL PAN/ NA6423

4

6684782

O-RING See Illustration OIL PAN/ NA6423

5

6631046

SEAL See Illustration OIL PAN/ NA6423

6

6680661

O-RING See Illustration OIL PAN/ NA6423

7

6686402

SEAL See Illustration OIL PAN/ NA6423

8

6685971

O-RING See Illustration OIL PAN/ NA6423

9

6680705

SEAL See Illustration PISTON & CRANKSHAFT/ NA6424

10

6691295

GASKET See Illustration GEARCASE/ NA6426

11

6680680

SEAL See Illustration GEARCASE/ NA6426

12

6680681

O-RING See Illustration GEARCASE/ NA6426

13

6680682

O-RING See Illustration GEARCASE/ NA6426

14

7012203

GASKET See Illustration GEARCASE/ NA6426

15

6680853

GASKET See Illustration WATER PUMP & THERMOSTAT/ NA6429

16

7024369

GASKET, BASE PUMP SUPPLY See Illustration FUEL INJECTION SYSTEM/ NA6436

17

6685948

GASKET See Illustration FUEL INJECTION SYSTEM/ NA6436

18

7024397

GASKET, PUMP SUPPLY See Illustration FUEL INJECTION SYSTEM/ NA6436

19

7024647

WASHER, SEALING See Illustration FUEL INJECTION SYSTEM/ NA6437

20

7024404

GASKET See Illustration FUEL INJECTION SYSTEM/ NA6437

Выбрано товаров: 20
