Запчасти Bobcat A-Series UPPER GASKET KIT POWER UNIT

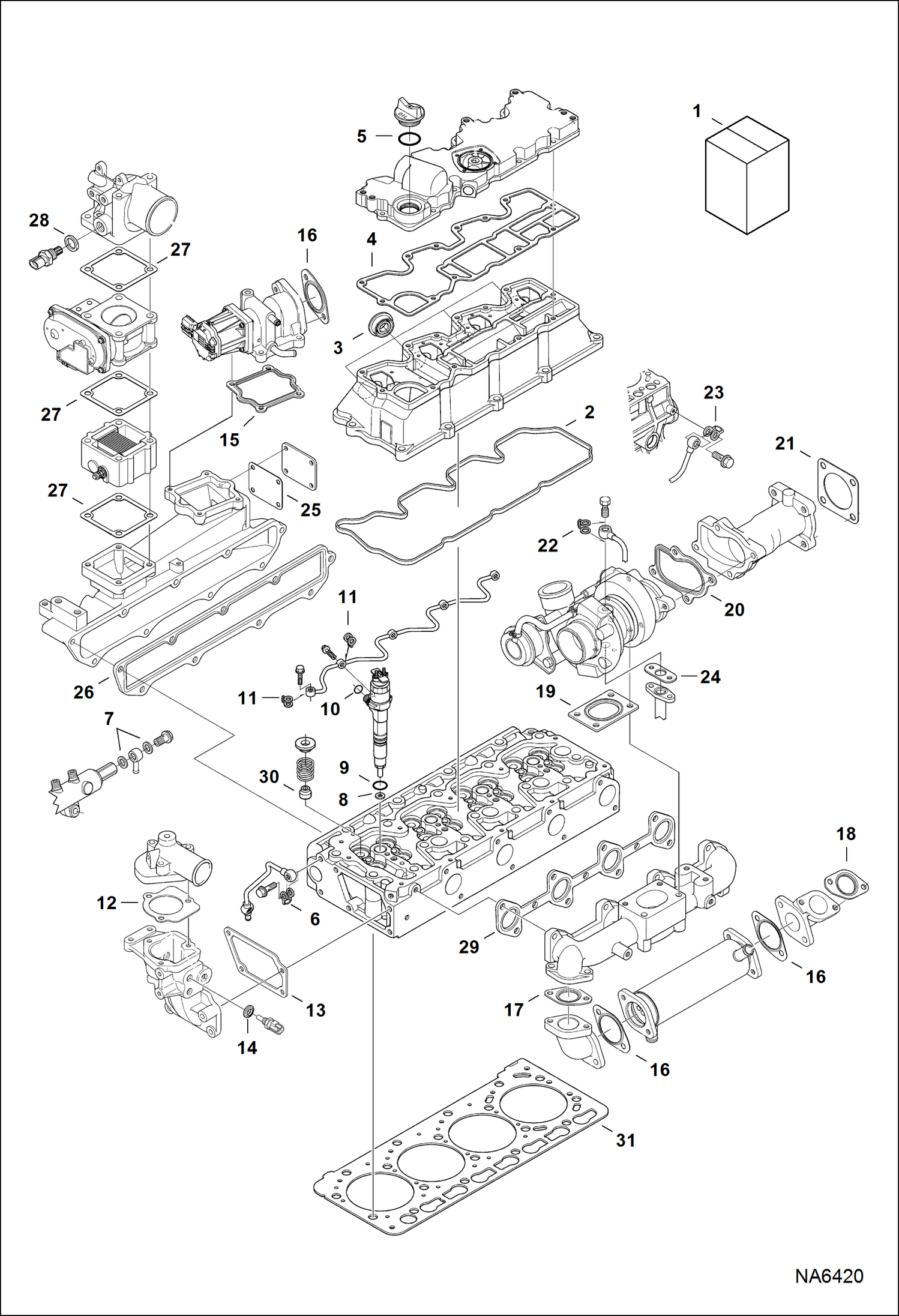

Схема запчастей Bobcat A-Series - UPPER GASKET KIT POWER UNIT

Артикул

Название

Примечание

Количество

1

7024930

KIT, GASKET ENG UPPER NLA - Order Ref. 2-27

2

6680690

GASKET See Illustration CYLINDER HEAD & COVER/ NA6428

3

6680695

SEAL See Illustration CYLINDER HEAD & COVER/ NA6428

4

7024307

GASKET, COVER VALVE See Illustration CYLINDER HEAD & COVER/ NA6428

5

6684782

O-RING See Illustration CYLINDER HEAD & COVER/ NA6428

6

6689331

GASKET See Illustration FUEL INJECTION SYSTEM/ NA6437

7

WASHER, SEALING See Illustration FUEL INJECTION SYSTEM/ NA6437

8

6969824

GASKET, NOZZLE INJ See Illustration FUEL INJECTION SYSTEM/ NA6437

9

6680284

O-RING See Illustration FUEL INJECTION SYSTEM/ NA6437

10

6680778

O-RING See Illustration FUEL INJECTION SYSTEM/ NA6437

11

7024937

GASKET See Illustration FUEL INJECTION SYSTEM/ NA6437

12

6685955

GASKET See Illustration WATER PUMP & THERMOSTAT/ NA6429

13

6680849

GASKET See Illustration WATER PUMP & THERMOSTAT/ NA6429

14

7024237

WASHER, SEALING See Illustration WATER PUMP & THERMOSTAT/ NA6429

15

7024406

GASKET, EGR VALVE See Illustration EGR VALVE/ NA6430

16

7024407

GASKET, EGR COOLER See Illustration EGR VALVE/ NA6430

17

7024928

GASKET, EGR FLANGE See Illustration EGR VALVE/ NA6430

18

6698583

GASKET, EGR FLANGE See Illustration EGR VALVE/ NA6430

19

7008514

GASKET, TURBO See Illustration TURBOCHARGER/ NA6432

20

6691588

GASKET See Illustration TURBOCHARGER/ NA6432

21

7024304

GASKET, FLANGE MUFFLER See Illustration TURBOCHARGER/ NA6432

22

7000642

WASHER, SEALING COPPER See Illustration TURBOCHARGER/ NA6432

23

6689331

GASKET See Illustration TURBOCHARGER/ NA6432

24

7008516

GASKET See Illustration TURBOCHARGER/ NA6432

25

7024302

GASKET, INLET See Illustration MANIFOLDS/ NA6431

26

6680884

GASKET See Illustration MANIFOLDS/ NA6431

27

7024300

GASKET, INLET See Illustration MANIFOLDS/ NA6431

28

3975317

GASKET See Illustration MANIFOLDS/ NA6431

29

7024380

GASKET, MANIFOLD EXHAUST See Illustration MANIFOLDS/ NA6431

30

6672436

SEAL See Illustration CYLINDER HEAD/ NA6427

31

6698597

GASKET, HEAD CYL See Illustration CYLINDER HEAD/ NA6427 - std/ 2 notch - not in kit

31

6698598

GASKET, HEAD CYL See Illustration CYLINDER HEAD/ NA6427 - suitability/ 1 notch - not in kit

31

6698589

GASKET, HEAD CYL See Illustration CYLINDER HEAD/ NA6427 - suitability/ no notch - not in kit

Выбрано товаров: 33
