Запчасти Bobcat A-Series ENGINE & ATTACHING PARTS (Fuel System) (S/N ATDW11001 - , ATDY11001 - ) POWER UNIT

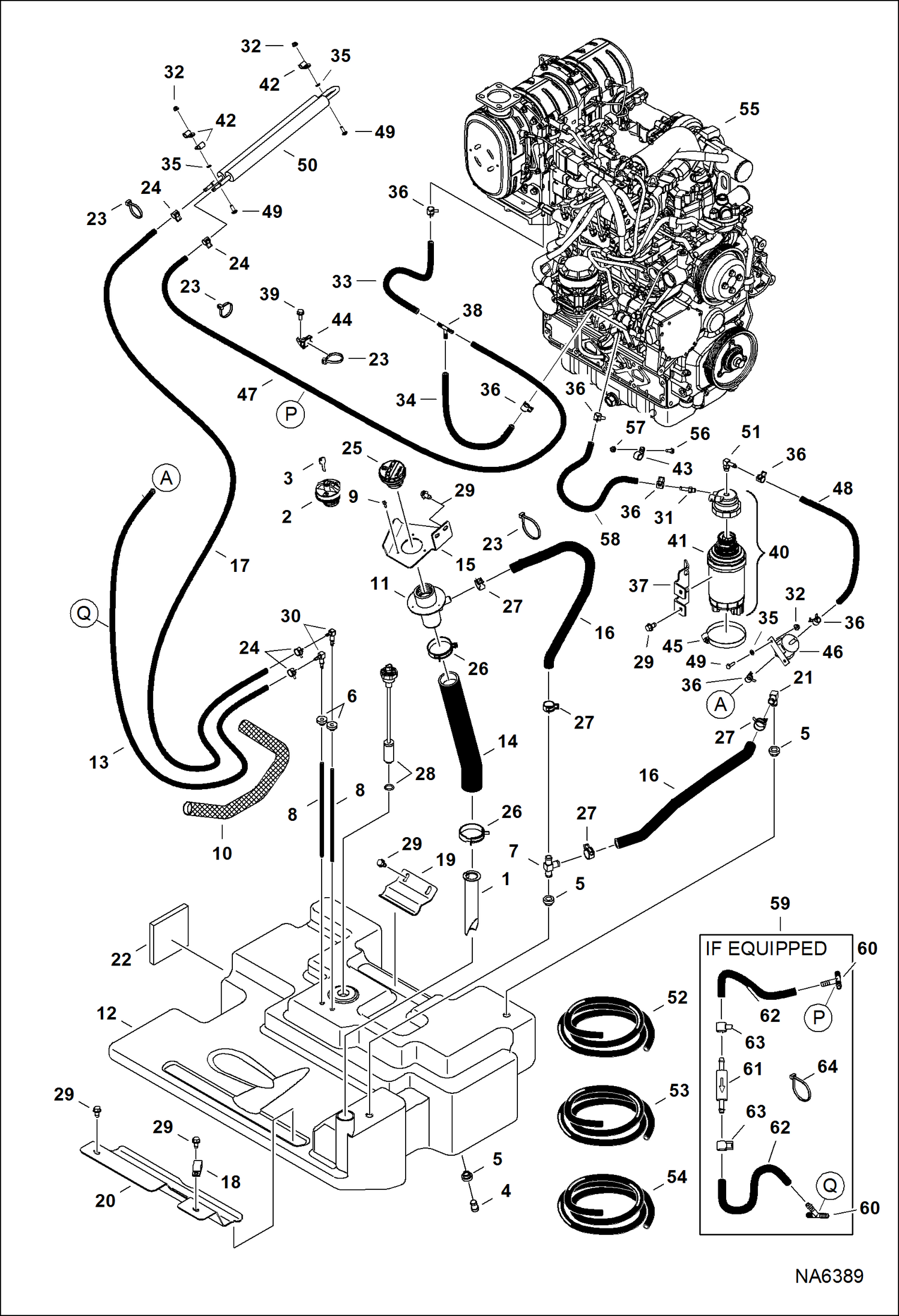

Схема запчастей Bobcat A-Series - ENGINE & ATTACHING PARTS (Fuel System) (S/N ATDW11001 - , ATDY11001 - ) POWER UNIT

Артикул

Название

Примечание

Количество

1

7120881

SCREEN, FILLER

2

7023550

CAP, DIESEL LOCKING

3

6693241

KEY 10 ignition - single key W/O ring

4

7203382

PLUG, STEEL

5

6717402

BUSHING 0.54'' ID

6

6735696

GROMMET

7

7203385

TEE

8

6735249

HOSE, FUEL

9

7106279

BOLT

10

7178623

COVER, HOSE

11

6701449

FILLER TUBE

12

7130652

TANK, FUEL

13

HOSE, FUEL NLA - 1168,4 mm (46'') long - Order Ref. 53

14

7163770

HOSE, FUEL

15

7163769

BRACKET, FUEL

16

HOSE, BREATHER NLA - 609,6 mm (24'') long - Order Ref. 52

17

HOSE, FUEL NLA - 2591 mm (102'') long - Order Ref. 53

18

31H31

CLIP

19

7163765

BRACKET, FUEL for SSL

20

BRACKET, FUEL NLA - 88,9 mm (3.5'') cutout - Was 7168928

20

7234561

BRACKET, FUEL 139,7 mm (5.5'') cutout

21

7203383

FITTING, ELBOW

22

7170635

INSULATION, TANK FUEL

23

6624289

STRAP, TIE

24

5HM13

CLAMP

25

7113340

CAP. DIESEL

26

5HM58

CLAMP

27

5HM24

CLAMP

28

7179839

SENSOR FUEL

29

84G3712

BOLT 5

30

7213028

FITTING, ELBOW

31

7213056

FITTING, ADAPTER

32

97D4

NUT

33

HOSE NLA - 304,8 mm (12'') long - Order Ref. 54

34

HOSE NLA - 412,8 mm (16.25'') long - Order Ref. 54

35

6675212

RETAINER

36

5HM14

CLAMP

37

7213243

BRACKET, FILTER

38

7140157

TEE

39

59CM820

SCREW HX FLNG W/T 8.8

40

7013579

FILTER, FUEL assy - W/Ref. 41

41

7023589

FILTER, FUEL W/SEPERATOR

42

30H22

CLIP

43

30H34

CLAMP

44

6678818

MOUNT

45

42H56

CLAMP

46

6684852

PUMP

47

HOSE, FUEL NLA - 1333,5 mm (52.5'') long - Order Ref. 53

48

HOSE, FUEL NLA - 412,7 mm (16.25'') long - Order Ref. 54

49

10C412

BOLT

50

7211828

EXCHANGER, FUEL

51

7213054

FITTING, ELBOW

52

6578172

HOSE bulk - sold per foot

53

6577821

HOSE bulk - sold per foot

54

6577822

HOSE bulk - sold per foot

55

7013314

ENG, V3800CRT EPA IT4 / EU STG IIIB See Illustration ENGINE & GASKET KITS/ NA6419

56

59CM816

BOLT

57

43DM8

NUT

58

HOSE, FUEL NLA - 438,2 mm (17.25'') long - Order Ref. 54

Выбрано товаров: 59
