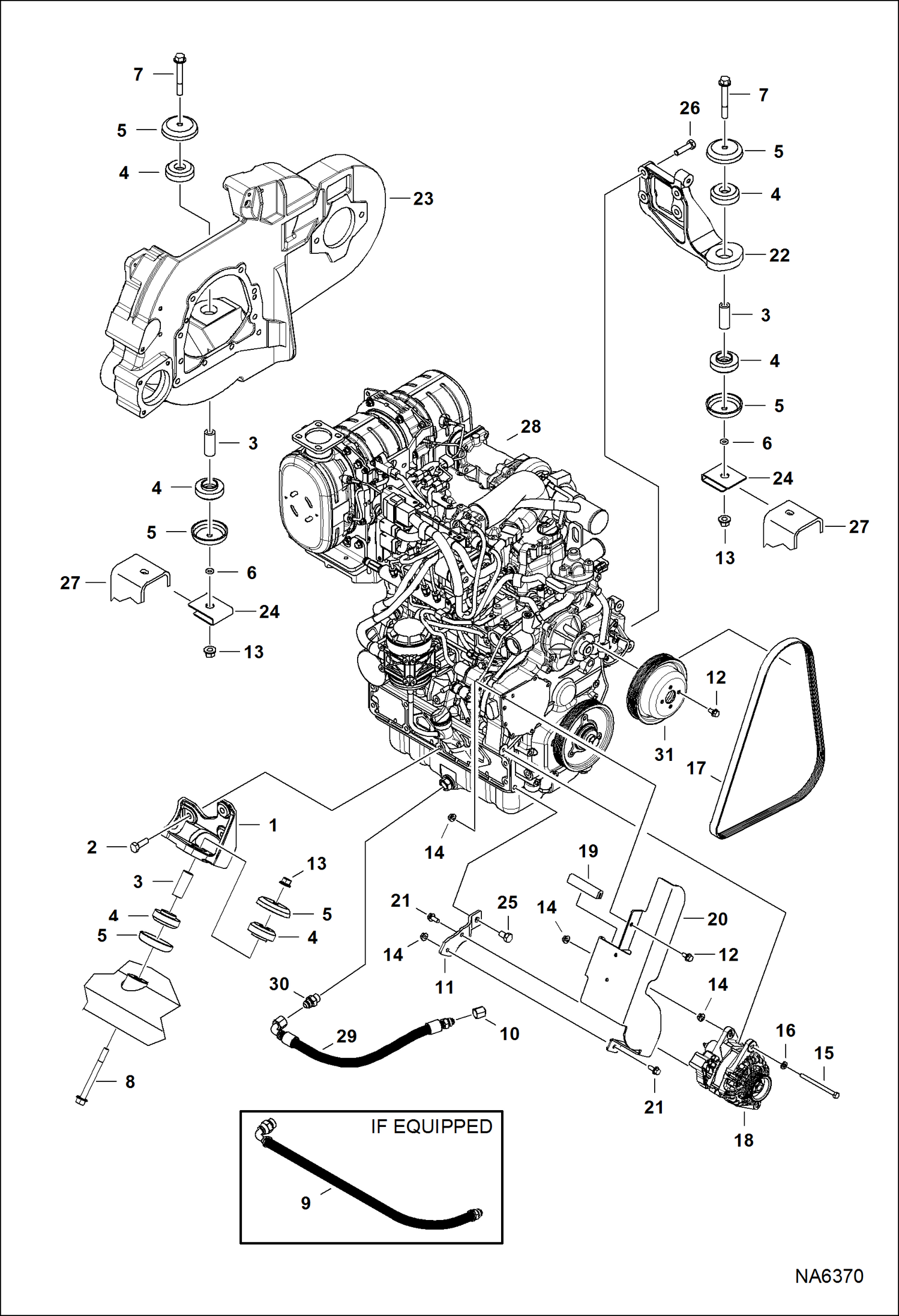

Запчасти Bobcat A-Series ENGINE & ATTACHING PARTS (Engine Mounts) POWER UNIT

1

7202298

MOUNT, ENG

2

6719829

BOLT

3

7141405

BUSHING

4

7000489

DAMPER

5

7116851

CUP

6

7120149

O-RING, RETAINING

7

31C864

BOLT

8

31C880

SCREW

9

7136111

HOSE, DRAIN OIL

10

36K6

CAP

11

7141420

BRACKET, ALT

12

59CM816

BOLT

13

83D8

NUT 5

14

43DM8

NUT

15

1CM8110

HEX CAP S

16

25E15

WASHER

17

7174706

BELT, ALT

18

7015581

ALTERNATOR, 90 AMP See Illustration ALTERNATOR/ NA6697

19

7212987

SEAL, FOAM

20

7186473

SHIELD, ALT

21

59CM820

SCREW HX FLNG W/T 8.8

22

7202296

MOUNT, ENG

23

7198451

MOUNT, ENG/PUMP

24

7152037

NUT, RETAINING

25

6CM1220

BOLT

26

7135124

SCREW

27

MAIN FRAME See Illustration MAIN FRAME/ NA6600

28

7013314

ENG, V3800CRT EPA IT4 / EU STG IIIB See Illustration ENGINE & GASKET KITS/ NA6419

29

7234109

HOSE, DRAIN

30

15KB0808

FITTING, HYD CONNECTOR
