Запчасти Bobcat A-Series ENGINE & ATTACHING PARTS (Belt Drive) POWER UNIT

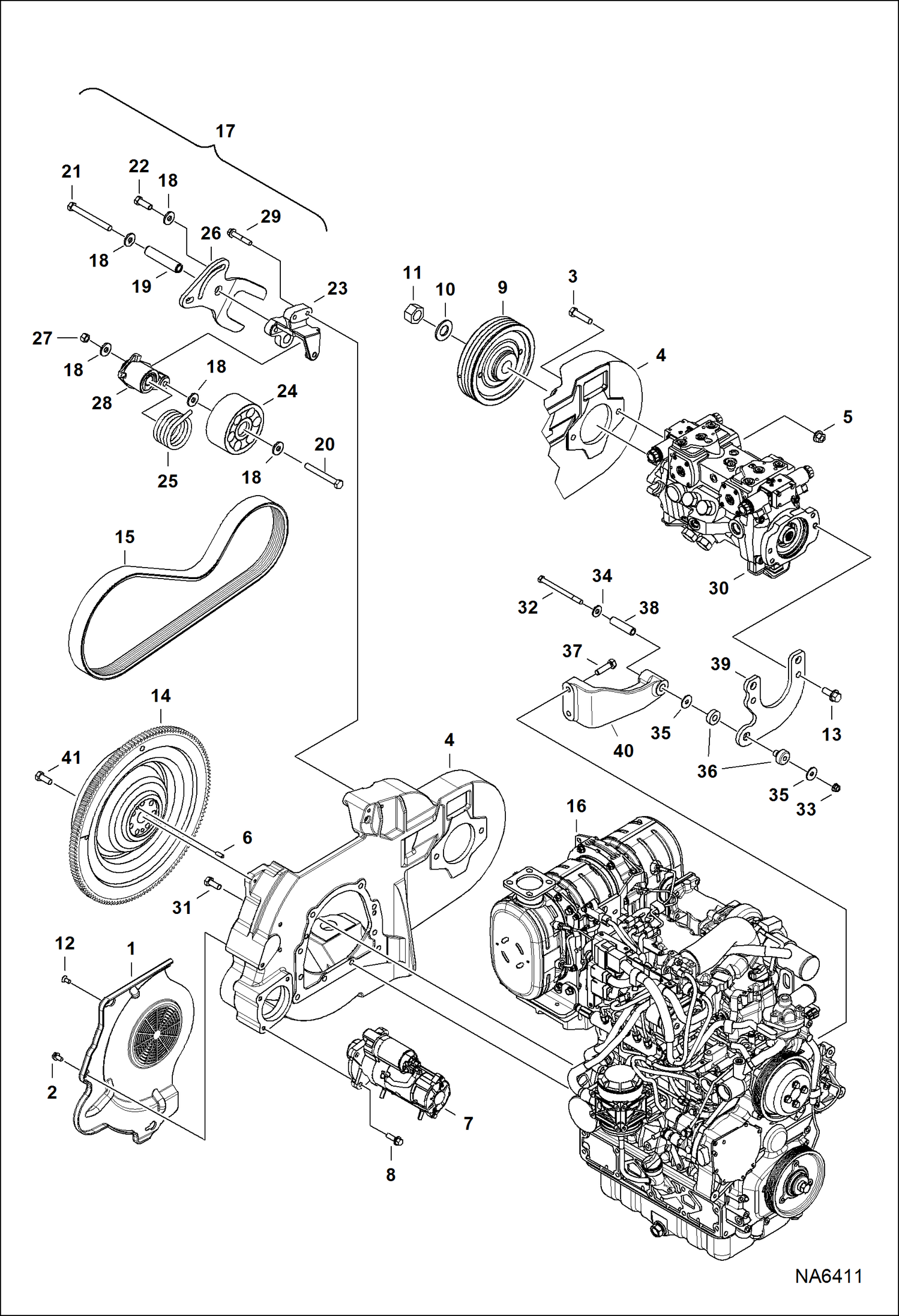

Схема запчастей Bobcat A-Series - ENGINE & ATTACHING PARTS (Belt Drive) POWER UNIT

Артикул

Название

Примечание

Количество

1

7201928

SHIELD, BELT

2

59CM816

BOLT

3

17C832

BOLT

4

7198451

MOUNT, ENG/PUMP

5

83D8

NUT 5

6

23JM0820

PIN

7

STARTER See Illustration STARTER/ B16488R

8

45C620

BOLT

9

7139655

PULLEY, PUMP HYD SJC

10

6805550

WASHER

11

96D16

NUT

12

7155238

BOLT

13

7131273

SCREW

14

7140925

FLYWHEEL, ENG ASSY W/ring gear

14

6665222

GEAR, RING STARTER

15

7197894

BELT, DRIVE

16

7013314

ENG, V3800CRT EPA IT4 / EU STG IIIB See Illustration ENGINE & GASKET KITS/ NA6419

17

7141788

IDLER ASSY Ref. 18-28

18

7152658

WASHER

19

7152605

SLEEVE

20

7CM12100

BOLT

21

55CM12120

BOLT

22

55CM1235

BOLT

23

7131211

MOUNT

24

7167165

WHEEL, TENSIONER

25

7145358

SPRING

26

7174407

ARM, IDLER

27

53DM12

NUT

28

7167164

ARM, TENSIONER

29

49C636

BOLT

30

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA6466 - SJC

31

6719828

BOLT

32

17C680

BOLT

33

83D6

NUT 5

34

27E6

WASHER 5

35

6737388

WASHER

36

7149357

MOUNT, LOAD ISOLATOR

37

7135124

SCREW

38

7147350

SPACER, TUBE

39

7193687

BRACKET, MOUNTING

40

7196558

MOUNT, PUMP

41

6680747

BOLT, FLYWHEEL

Выбрано товаров: 42
