Запчасти Bobcat A-Series ENGINE & ATTACHING PARTS (Air Cleaner & Particulate Filter) POWER UNIT

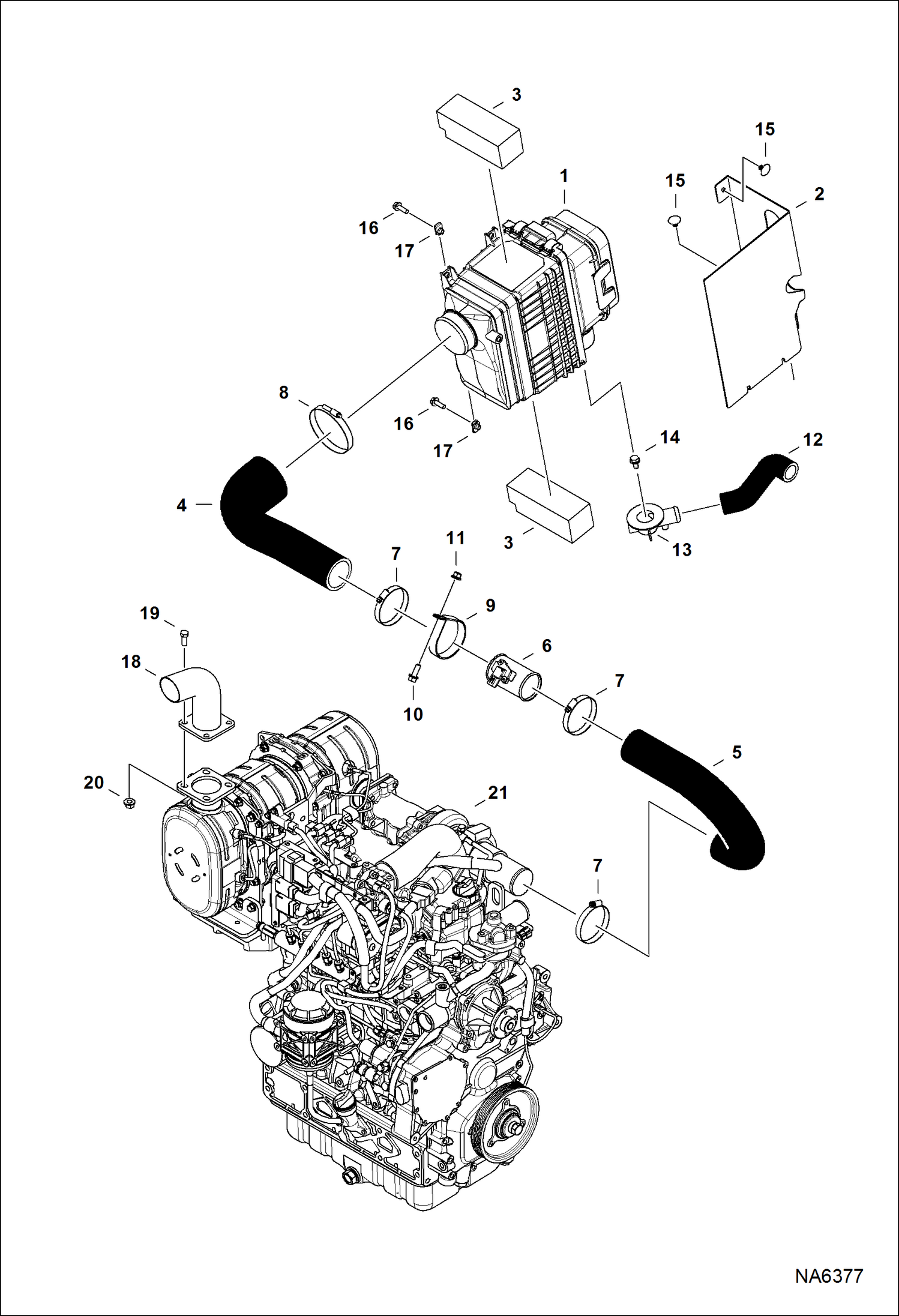

Схема запчастей Bobcat A-Series - ENGINE & ATTACHING PARTS (Air Cleaner & Particulate Filter) POWER UNIT

Артикул

Название

Примечание

Количество

1

7197235

FILTER, AIR CLEANER ASSY See Illustration AIR CLEANER/ NA6481

2

7207918

PLATE, DIVERTER AIR

3

7209348

FOAM

4

7204443

HOSE, AIR INTAKE

5

7208986

HOSE, AIR INTAKE

6

7024372

SENSOR, FLOW AIR INTAKE

7

42HC325

CLAMP

8

42HC425

CLAMP, HOSE

9

30H120

CLAMP, HOSE

10

35C616

BOLT 5

11

89D6

NUT

12

7154198

HOSE, AIR FORMED

13

7178213

CONNECTOR, FILTER

14

84G3712

BOLT 5

15

6674895

RETAINER

16

29CM830

CAPSCREW

17

6676169

NUT

18

7205978

TUBE, EXHAUST

19

17C616

BOLT 5

20

89D6

NUT

21

7013314

ENG, V3800CRT EPA IT4 / EU STG IIIB See Illustration ENGINE & GASKET KITS/ NA6419

Выбрано товаров: 21
