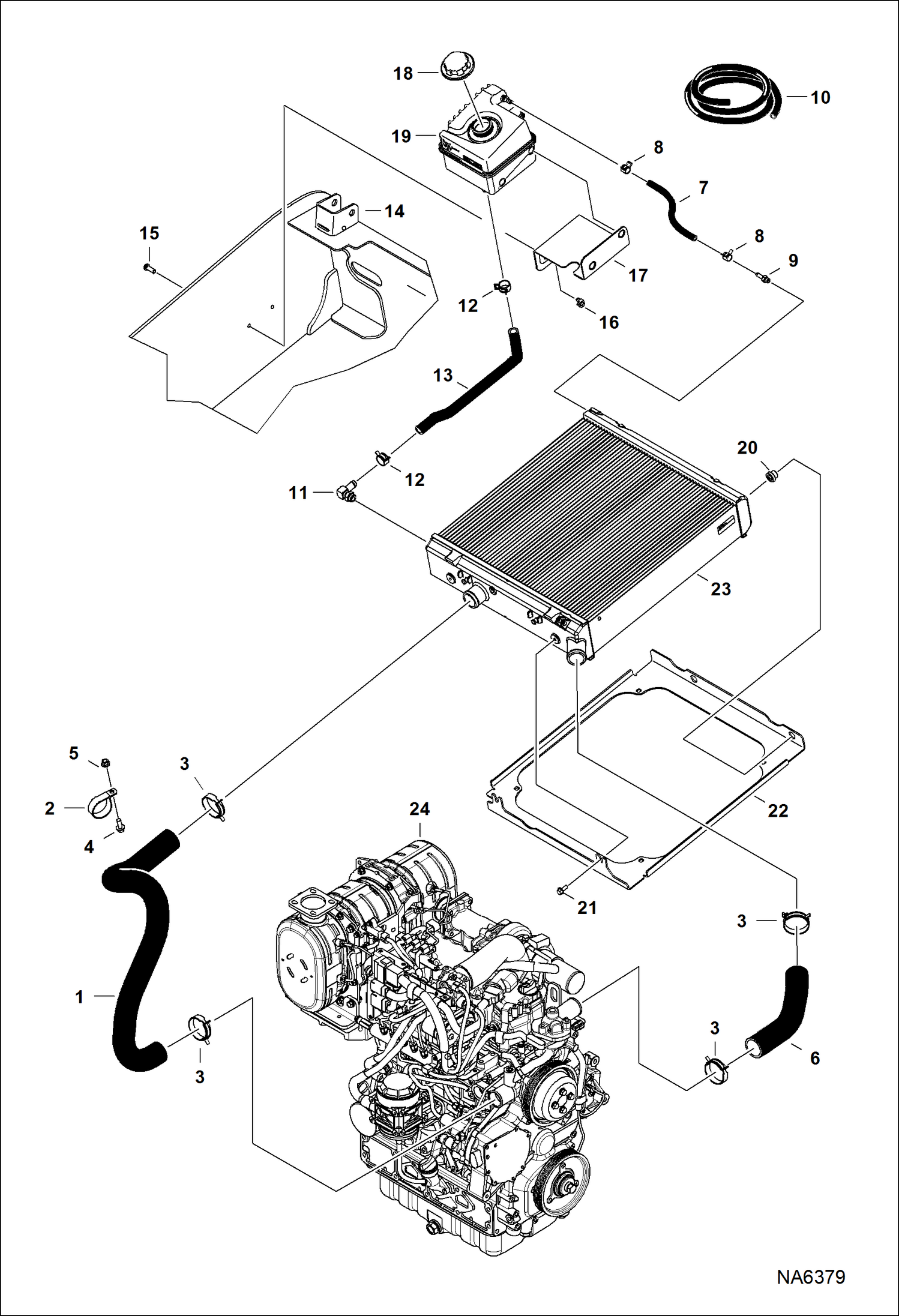

Запчасти Bobcat A-Series COOLING SYSTEM (Engine) POWER UNIT

1

7212311

HOSE, WATER

2

30H91

CLAMP

3

5HM55

CLAMP

4

35C616

BOLT 5

5

89D6

NUT

6

7149473

HOSE, WATER FORMED

7

HOSE NLA - 203,2 mm (8'') long - Order Ref. 10

8

5HM14

CLAMP

9

6734090

ADAPTER

10

6577822

HOSE bulk - sold per foot

11

6680952

FITTING 90 DEG BARB

11

79K8

O RING 10

12

5HM23

CLAMP

13

7170588

HOSE, WATER FORMED

14

MAIN FRAME See Illustration MAIN FRAME/ NA6600

15

53C516

BOLT

16

6678765

NUT

17

7144265

MOUNT, TANK

18

6733429

CAP

19

7137747

TANK, EXPANSION

20

7208181

BUSHING

21

45C512

BOLT

22

7207437

MOUNT, RADIATOR See Illustration RADIATOR/COOLER ASSEMBLY/ NA6372

23

EXCHANGER, OIL WATER See Illustration RADIATOR/COOLER ASSEMBLY/ NA6372

24

7013314

ENG, V3800CRT EPA IT4 / EU STG IIIB See Illustration ENGINE & GASKET KITS/ NA6419
