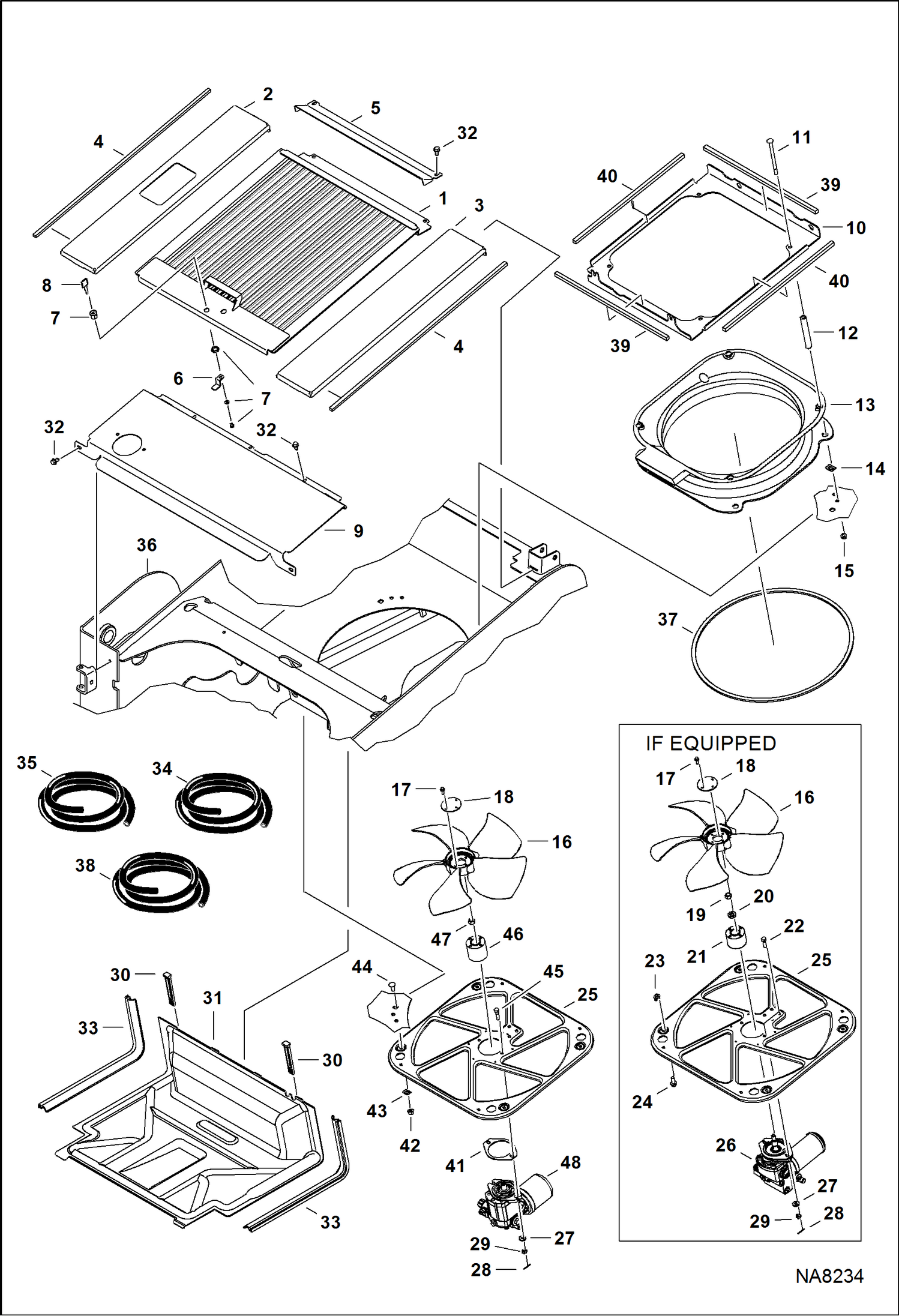

Запчасти Bobcat A-Series COOLING SYSTEM (S/N ATDW11939 & Above, ATDY & Above ) POWER UNIT

1

7161423

SCREEN, RADIATOR

2

COVER, HOOD

2

7227823

COVER, HOOD 1 hole - Also Order 7209348 foam insulation and install it to the bottom side of hood cover

3

7161424

COVER, HOOD

4

SEAL NLA - 729 mm (28.7'') long - Order Ref. 35

5

7221437

SHIELD, HOOD

6

7149056

LATCH, CAM

7

6670726

CYLINDER, LOCK

8

6693241

KEY 10 ignition - single key W/O ring

9

7194144

COVER, HOOD

10

7207437

MOUNT, RADIATOR See Illustration RADIATOR/COOLER ASSEMBLY/ NA6372

11

10C696

BOLT

12

7136113

BUSHING

13

7135715

SHROUD, FAN

14

6684033

NUT

15

97D6

NUT 10

16

7170674

FAN, ENG COOLANT

17

49C412

BOLT

18

7125948

PLATE

19

96D8

NUT

20

6701097

WASHER

21

7130834

HUB, FAN

22

7147826

BOLT, CROSS DRILLED

23

6678785

NUT

24

49C616

BOLT

25

7136376

MOUNT, MOTOR ASSY

26

7010793

MOTOR, FAN See Illustration COOLING FAN MOTOR/ MS2514

27

6557831

WASHER

28

1F316

PIN

29

3D6

NUT

30

7141906

STRAP, RUBBER

31

7135745

DUCT, AIR

32

84G3712

BOLT 5

33

SEAL NLA - 673,1 mm (26.5'') long - Order Ref. 34

34

7169778

SEAL, BULK/FT bulk - sold per foot

35

6511855

SEAL bulk - sold per foot

36

MAIN FRAME See Illustration MAIN FRAME/ NA6600

37

SEAL, FOAM NLA - 1675 mm (66'') long - Order Ref. 38

38

7024158

SEAL, FOAM bulk - sold per foot

39

7221433

SEAL, FOAM 529,1 mm (20.83'') long

40

SEAL, FOAM NLA - 523 mm (20.6'') long - Order Ref. 39
