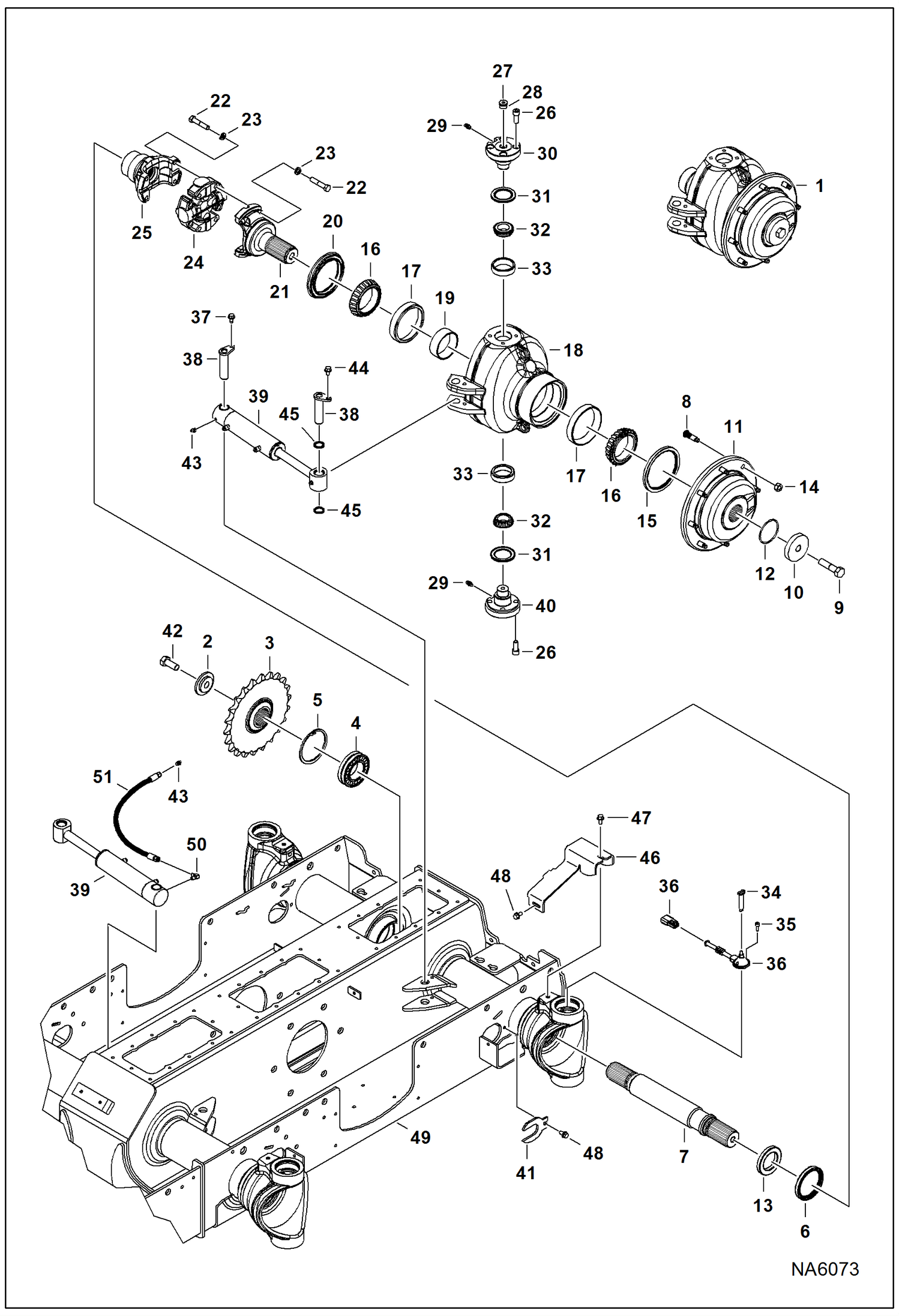

Запчасти Bobcat A-Series AXLE DRIVE TRAIN

1

6725546

HUB ASSY Ref. 8-12, 15-25 & 41

2

7107514

WASHER

3

7134165

SPROCKET

4

6677790

BEARING

5

7JM110

SNAP RING

6

6677789

SEAL inner axle

7

6727500

AXLE W/O wear ring

8

6709170

BOLT, WHEEL

9

18C1248

SCREW

10

6725204

WASHER recessed

11

6718586

HUB W/Ref. 8

12

58K234

O RING 10

13

6729405

SPACER axle

14

6564669

NUT, 10 wheel

15

6677787

SEAL

16

7010760

CONE, BEARING

17

7010761

CUP, BEARING

18

6728513

HOUSING

19

6728145

SPACER cone

20

6677788

SEAL

21

6677792

YOKE male

22

18C840

BOLT

23

4E8

WASHER lock

24

6678575

U-JOINT

25

6677793

YOKE female - W/Ref. 22-24

25

6679874

PLUG

26

73G820

BOLT

27

47K7

PLUG W/Ref. 28 - Was 90K7 - B

28

75K10

O RING 10

29

10H35

FITTING, GREASE 10

30

6726481

KINGPIN

31

6677785

SEAL

32

6675085

BEARING

33

6675086

RACE

34

6677365

SHAFT wheel positioner

35

21G606

BOLT

36

6682340

SENSOR, POSITIONER WHEEL wheel positioner

36

6670706

CONNECTOR

36

6670710

LOCK

37

84G3712

BOLT 5

38

6725386

PIN

39

6814126

CYLINDER, STEERING See Illustration STEERING CYLINDER/ PE1394

40

6730825

KINGPIN

41

7188041

SHIELD, CYL

42

48C1228

BOLT plated - pre-applied threadlocker - 44,5 mm (1.75'') long

43

10H25

FITTING, GREASE 5

44

35C610

BOLT 5

45

1990599

WIPER

46

7181020

SHIELD, SENSOR front RH, & rear LH

46

7231243

SHIELD, SENSOR front RH, & rear LH

46

7181019

SHIELD, SENSOR front LH, & rear RH

46

7231244

SHIELD, SENSOR front LH, & rear RH

47

35C612

BOLT

48

84G3712

BOLT 5

49

CHAINCASE See Illustration DRIVE TRAIN/ NA6072
