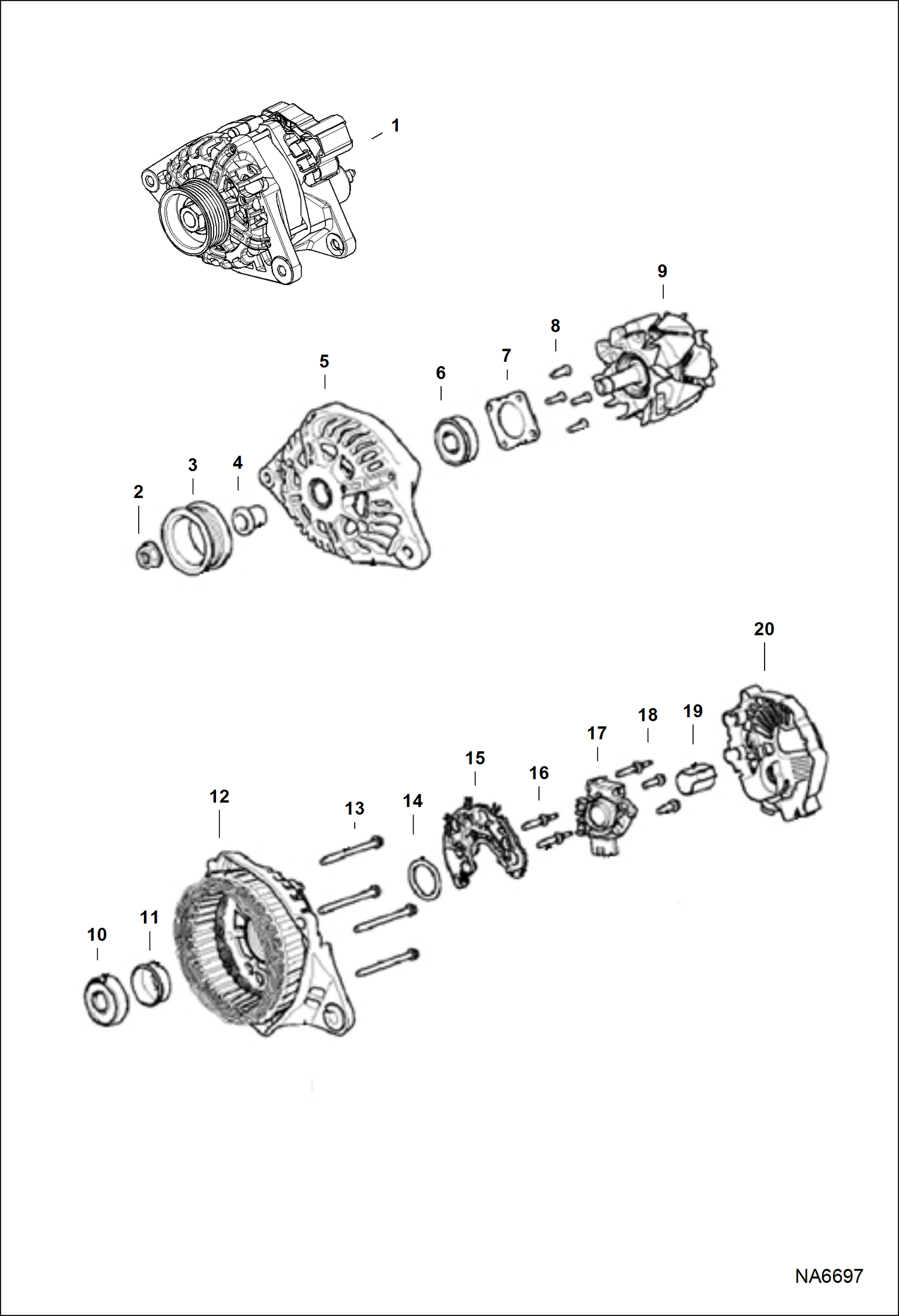

Запчасти Bobcat A-Series ALTERNATOR ELECTRICAL SYSTEM

1

7015581

ALTERNATOR, 90 AMP Ref. 2-20

2

NUT

3

PULLEY

4

SPACER

5

BRACKET

6

BEARING front

7

COVER, BEARING

8

BOLT

9

ROTOR

10

BEARING rear

11

COVER, BEARING

12

BRACKET rear

13

BOLT

14

SEAL

15

RECTIFIER

16

STUD

17

HOLDER, BRUSH

18

BOLT

19

GUIDE, RING SLIP

20

COVER
