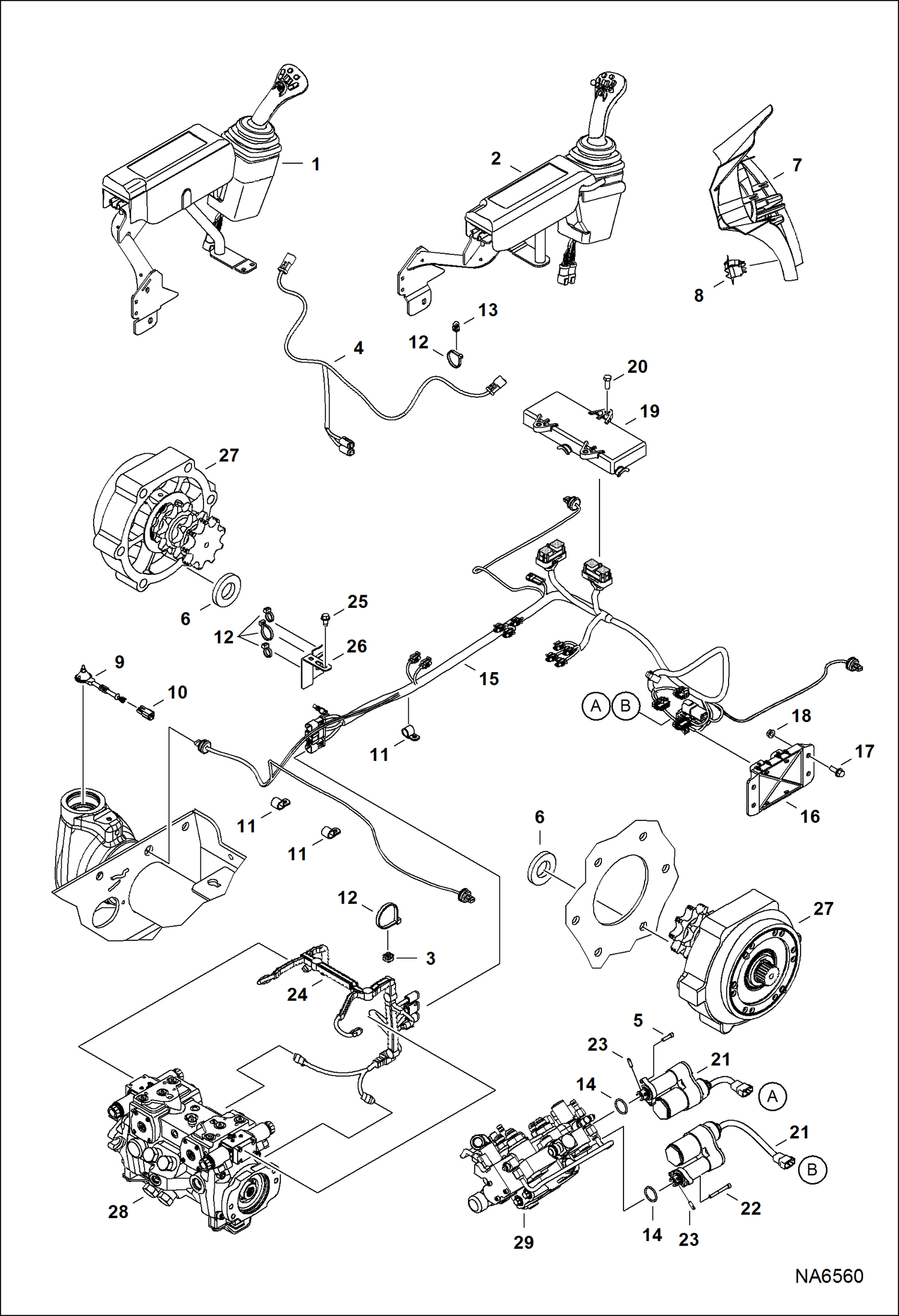

Запчасти Bobcat A-Series CONTROLS ELECTRICAL ELECTRICAL SYSTEM

1

JOYSTICK, SJC LH See Illustration CONTROLS ELECTRICAL/ NA6407

2

JOYSTICK, SJC RH See Illustration CONTROLS ELECTRICAL/ NA6407

3

6690688

TREE MOUNT

4

7163706

HARNESS, JOYSTICK

5

6814021

BOLT

6

6680055

MAGNET

7

7155791

PANEL, RH See Illustration CAB ELECTRICAL CIRCUITRY/ NA6400

8

7012629

SWITCH ROCKER

9

6682340

SENSOR, POSITIONER WHEEL

10

6670706

CONNECTOR

10

6670710

LOCK

11

30H42

CLAMP

12

6690690

STRAP, TIE

13

6690689

MOUNT, FIR TREE

14

58K120

O-RING

15

7210507

HARNESS, AWS

16

6680410

CONTROLLER plastic - W/ 3-connector plug

17

31C616

SCREW

18

97D6

NUT 10

19

6679487

CONTROLLER, JOYSTICK DRIVE

20

43C616

BOLT

21

7101672

ACTUATOR W/Ref. 14

22

69G436

BOLT

23

7108236

PIN

24

7188448

HARNESS, PUMP

25

84G3712

BOLT 5

26

7122359

BRACKET

27

CARRIER, MOTOR See Illustration MOTOR CARRIER/ NA2154

28

7013178

PUMP, HYD TANDEM See Illustration HYDROSTATIC PUMP/ NA2245

29

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1217
