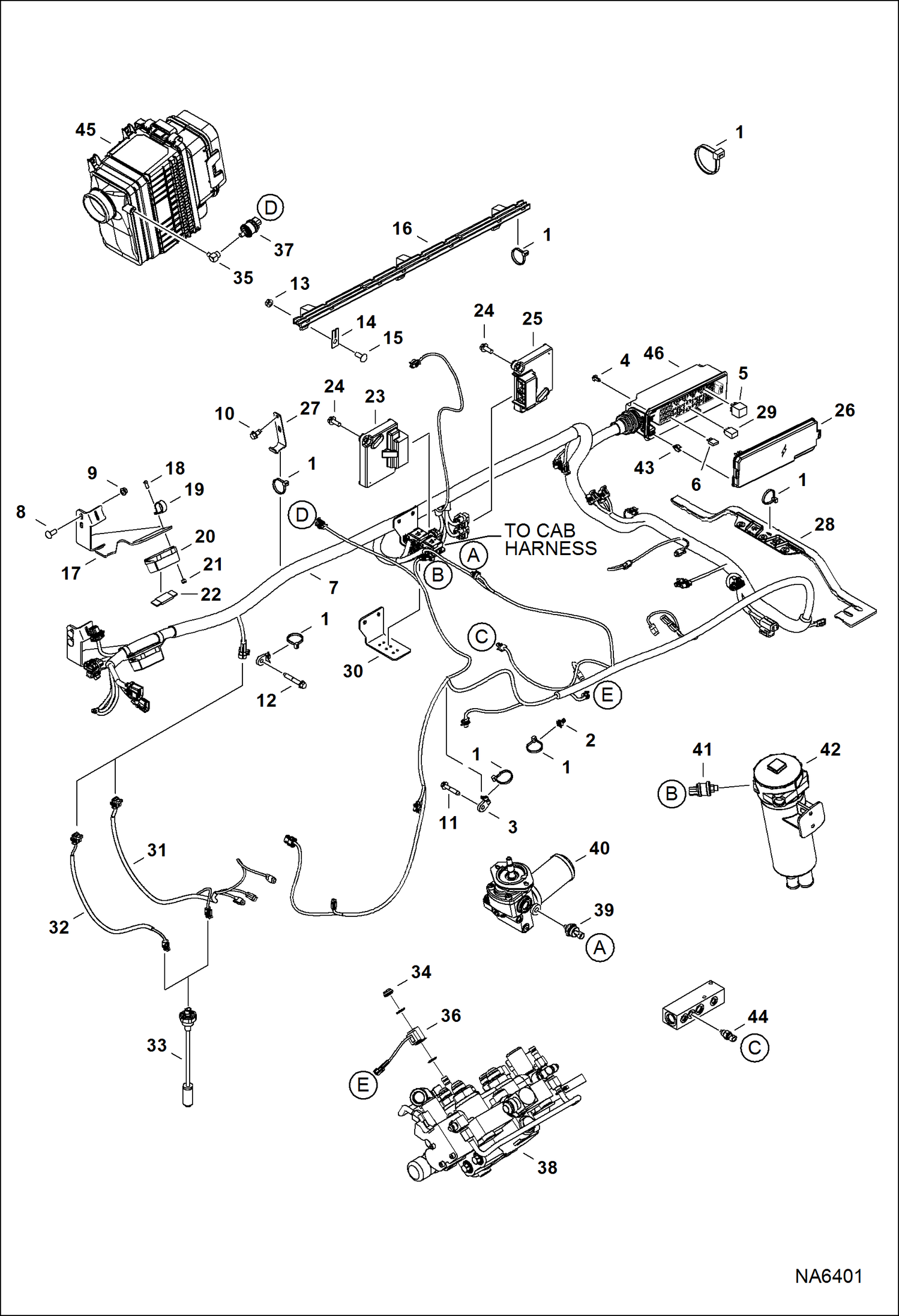

Запчасти Bobcat A-Series ENGINE ELECTRICAL CIRCUITRY (Frame Harness & Filter Sensors) ELECTRICAL SYSTEM

1

6624289

STRAP, TIE

2

7015668

MOUNT, STRAP TIE Was 6678666 - B

3

6679034

MOUNT

4

6702642

SCREW

5

6679820

RELAY

6

6803264

FUSE, 5A MINI

6

6654806

FUSE, 15A

6

6707621

FUSE, 15A MINI 5

6

6625575

FUSE, 20A

6

6702444

FUSE 25A 5

6

6707623

FUSE, 25A MINI 5

6

6718034

FUSE, 30A

7

7226815

HARNESS, MFR See Illustration ENGINE ELECTRICAL CIRCUITRY/ NA6402 - manual controls - Was 7218331 - C

7

7226814

HARNESS, MFR See Illustration ENGINE ELECTRICAL CIRCUITRY/ NA6402 - AHC, ACS & SJC - Was 7218334 - C

8

10C616

BOLT 10

9

57D6

NUT 5

10

84G3712

BOLT 5

11

84G3732

BOLT

12

84G3740

BOLT

13

97D6

NUT 10

14

PLATE, REINFORCEMENT NSS

15

37C616

BOLT

16

7131254

BRACKET, MOLDED SKI W/Ref. 14 & 15

17

7199121

BRACKET

18

25G410

CAPSCREW

19

30H50

CLIP

20

6675154

HOLDER high amp fuse

21

59D4

NUT 5

22

6675155

FUSE, 100A mega

23

6691288

CONTROLLER, AUX CONTROL

24

7168429

BOLT, CONTROLLER

25

6693353

CONTROLLER, GATEWAY

26

7208472

COVER, FUSE BOX

27

7161098

BRACKET

28

7171188

BRACKET

29

7219044

RELAY, ELECTRICAL

30

7212967

BRACKET, HARNESS

31

7184255

HARNESS, FUEL dlx cab

32

7149219

HARNESS, FUEL std cab

33

7179839

SENSOR FUEL W/gasket

33

6717579

GASKET

34

6691022

NUT

35

7191672

ELBOW

36

6675559

COIL

37

6665371

SWITCH

38

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1217

39

6674316

SWITCH, PRESS OIL HYD

40

7010793

MOTOR, FAN See Illustration COOLING FAN MOTOR/ MS2514

41

7002980

SWITCH, PRESSURE

42

7012312

FILTER, OIL HYD TANK ASSY See Illustration HYDROSTATIC CIRCUITRY/ NA6076

43

7165333

CLIP

44

6727869

SENDER,HYD TEMP

45

7197235

FILTER, AIR CLEANER ASSY See Illustration AIR CLEANER/ NA6481

46

7207545

BLOCK, FUSE W/Ref. 26 & 43
