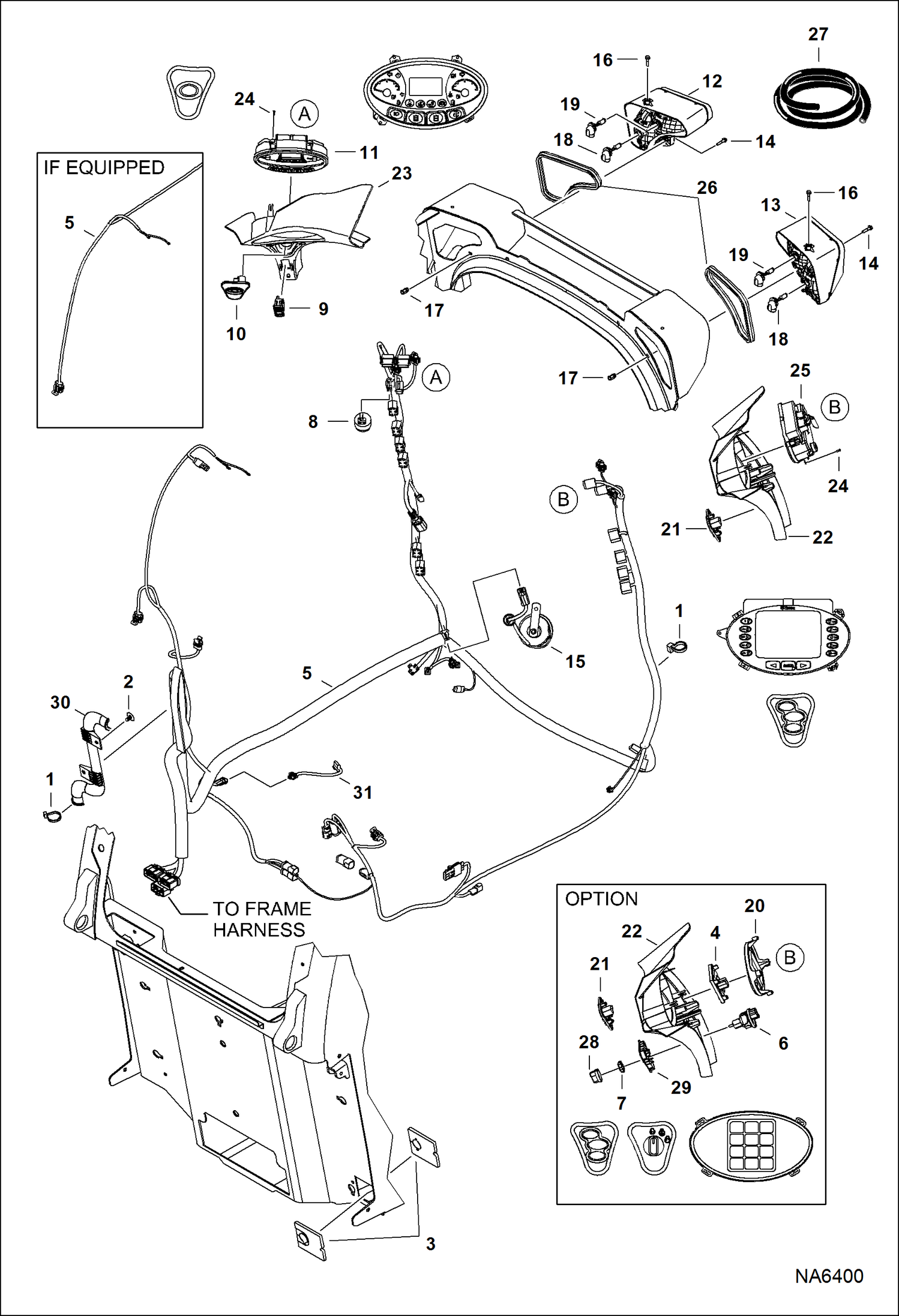

Запчасти Bobcat A-Series CAB ELECTRICAL CIRCUITRY (Deluxe) ELECTRICAL SYSTEM

1

6624289

STRAP, TIE

2

6674895

RETAINER

3

7185150

PLUG, HARNESS CAB

4

6693712

KEYPAD, PANEL

5

7207730

HARNESS, CAB DLX

6

7164073

GUIDE

7

7023022

SWITCH ROTARY W/Ref. 8

8

7009081

NUT

9

6692489

ALARM, BUZZER

10

6690948

SWITCH PARK BRAKE

11

7003032

SWITCH, OVERRIDE TRACTION

12

7022670

DISPLAY

13

7138041

LIGHT, LH ASSY

14

7138040

LIGHT, RH ASSY

15

31C420

BOLT 5

16

HORN, ALARM See Illustration HORN KIT/ NA6326 selectable joystick controls

17

35C410

BOLT 5

18

7154910

INSERT, THREADED

19

6675336

LIGHT, BULB 50W

20

7008814

BULB, 5W

21

7003027

INSERT, KEYPAD - if loader is equipped W/SJC & text decals, Also Order Ref. 23 & 7168114 decal - if loader is equipped W/SJC & no text decals, Also Order Ref. 23 & 7177707 decal

22

SWITCH, IGN NLA - Was 7003033 - A

23

7155791

PANEL, RH

24

7155792

PANEL, LH

25

7179008

SCREW, PLASTIC

26

6693413

DISPLAY, DLX

27

SEAL NLA - 609,6 mm (24'') long - Order Ref. 28

28

7202956

SEAL, BULK bulk - sold per foot

29

7023588

KNOB

30

7163589

INSERT, SWITCH
