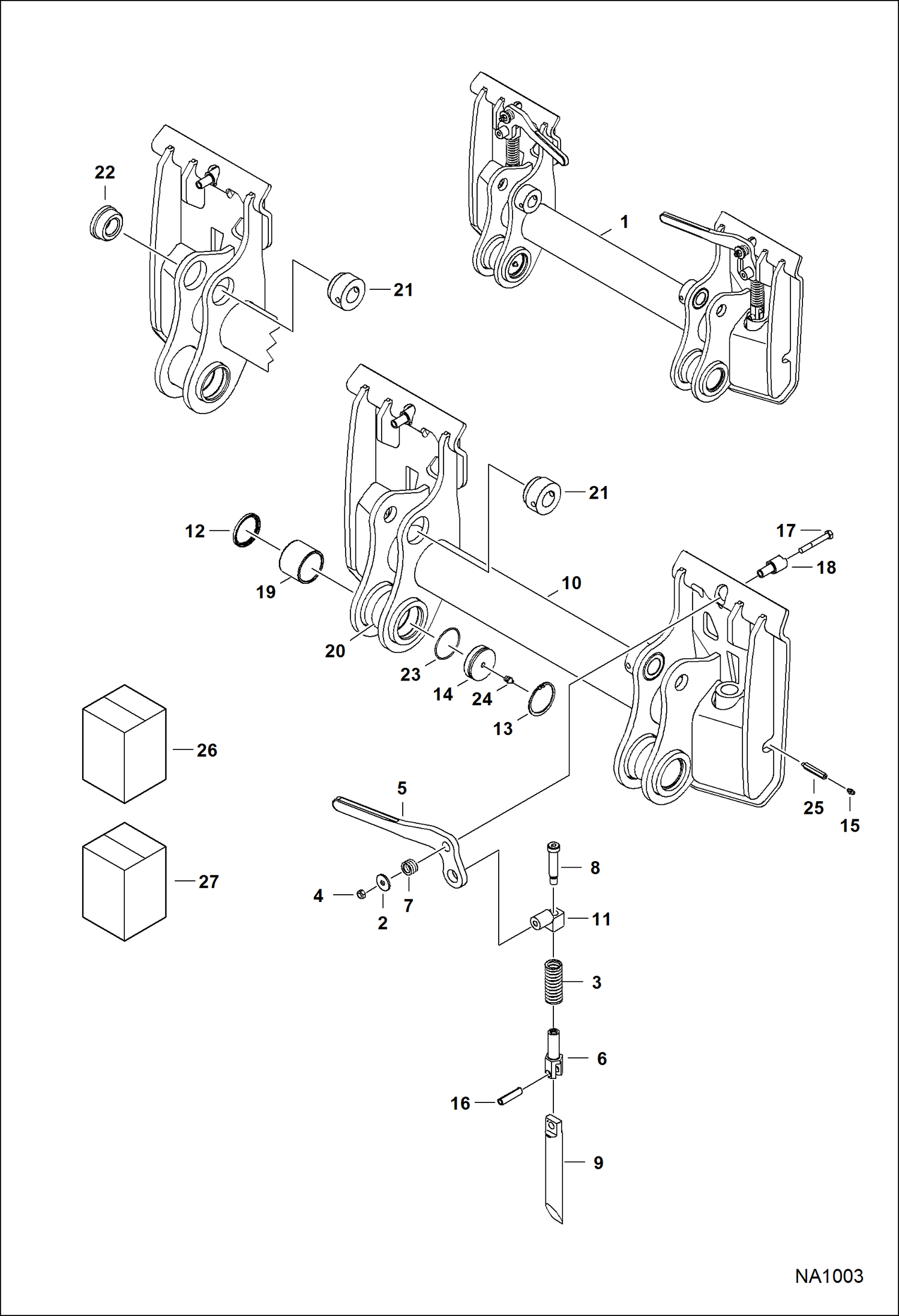

Запчасти Bobcat A-Series BOB-TACH MAIN FRAME

1

7128962

BOB-TACH Ref. 2-25

2

619021

WASHER, 5

3

6578253

SPRING, COMPRESSION

4

83D6

NUT 5 Was 85D6 - B

5

6702904

LEVER, BOB-TACH RH

5

6702903

LEVER, BOB-TACH LH

6

6704248

PIVOT, WEDGE

7

SPRING NLA - 19,18 mm (.755'') long - Order 7221255 spring & Ref. 17 (17C652 bolt) - Was 6704453 - B

7

7221255

SPRING 34,22 mm (1.347'') long

8

6728473

BOLT, SHOULDER pre-applied thread locker

9

6737191

WEDGE

10

FRAME NLA

11

7146538

PIVOT, BOBTACH

12

7170611

SEAL install flush to Ref. 19

13

7170614

SNAP RING

14

7170613

PLUG

15

10H35

FITTING, GREASE 10

16

14J5032

PIN, STRAIGHT

17

BOLT NLA - Order 17C652 bolt & Ref. 7 (7221255 spring) - Was 17C644 - B

17

17C652

BOLT Use W/Ref. 7 (7221255 spring)

18

6702958

BUSHING, WELD-ON

19

7170615

BUSHING, WEAR

20

7215408

BUSHING, WELD-ON W/Ref. 19 - Was 7170610

21

7136465

BUSHING, WELD-ON

22

7136464

BUSHING, WELD-ON

23

25K30210

O-RING

24

10H25

FITTING, GREASE 5

25

7209911

EXTENSION, FITTING GREASE

26

KIT, LEVER NLA
