Запчасти Bobcat A-Series DRIVE TRAIN (S/N ATDW11001 -11777 & 11779 - 11809) DRIVE TRAIN

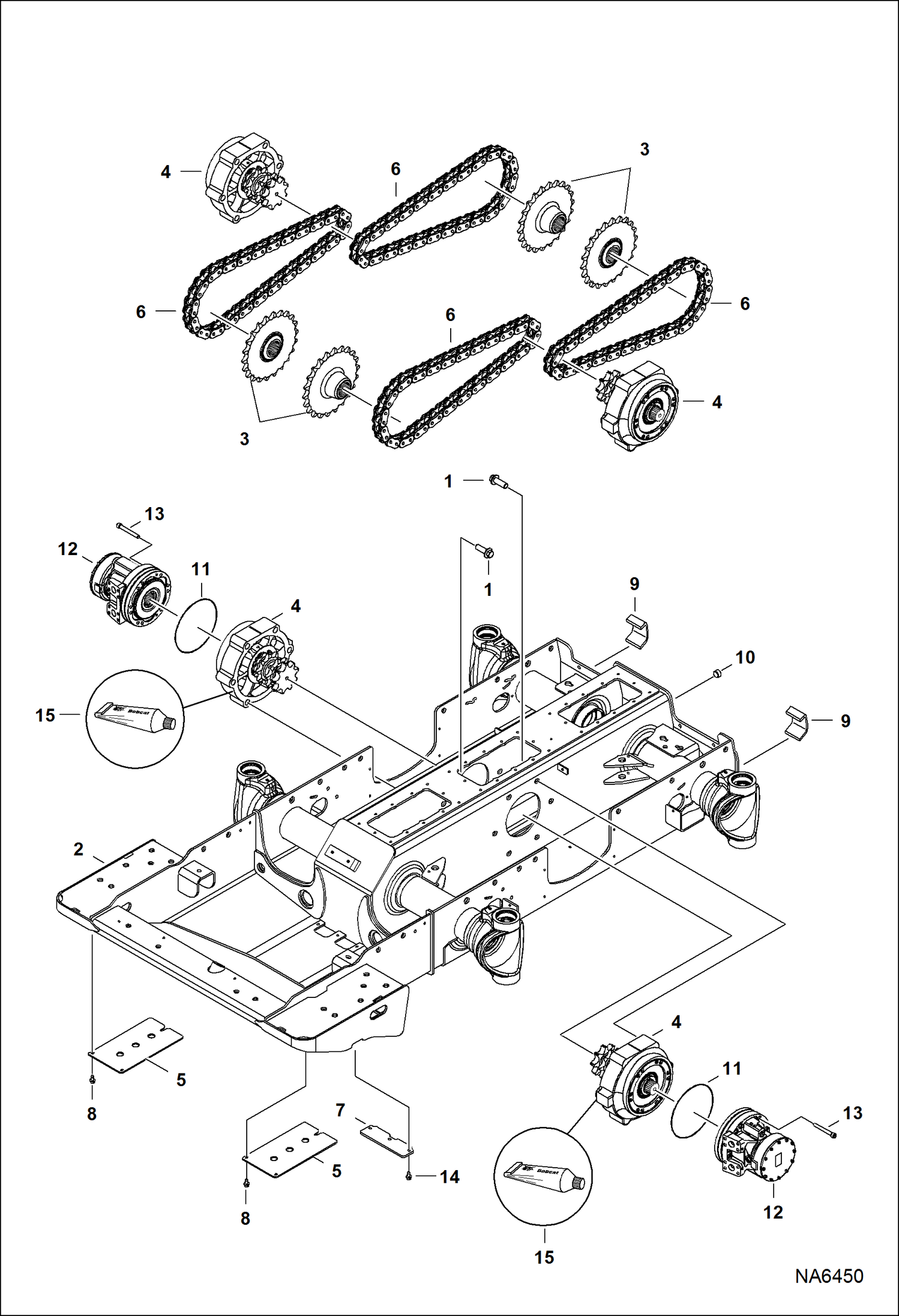

Схема запчастей Bobcat A-Series - DRIVE TRAIN (S/N ATDW11001 -11777 & 11779 - 11809) DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

6678971

BOLT

2

7156566

CHAINCASE

3

7134165

SPROCKET

4

CARRIER, MOTOR See Illustration MOTOR CARRIER/ NA2154

5

7145347

COVER

6

7106862

CHAIN, DRIVE

7

7159094

COVER, DRAIN

8

35C612

BOLT

9

7134445

BRACKET, TIE-DOWN weld-on

10

6731121

PLUG

10

7K12

FLANGE

11

25K30816

O-RING Was 25K30812 - B,D

12

MOTOR, DRIVE HYD 2-SPD See Illustration HYDROSTATIC MOTOR & BRAKE/ MS1467

13

6717806

BOLT

14

84G3716

SCREW 5

15

6685372

SEALANT, GASKET LIQUID 10.1 OZ tube - 0.57 kg (20 oz)

Выбрано товаров: 16
