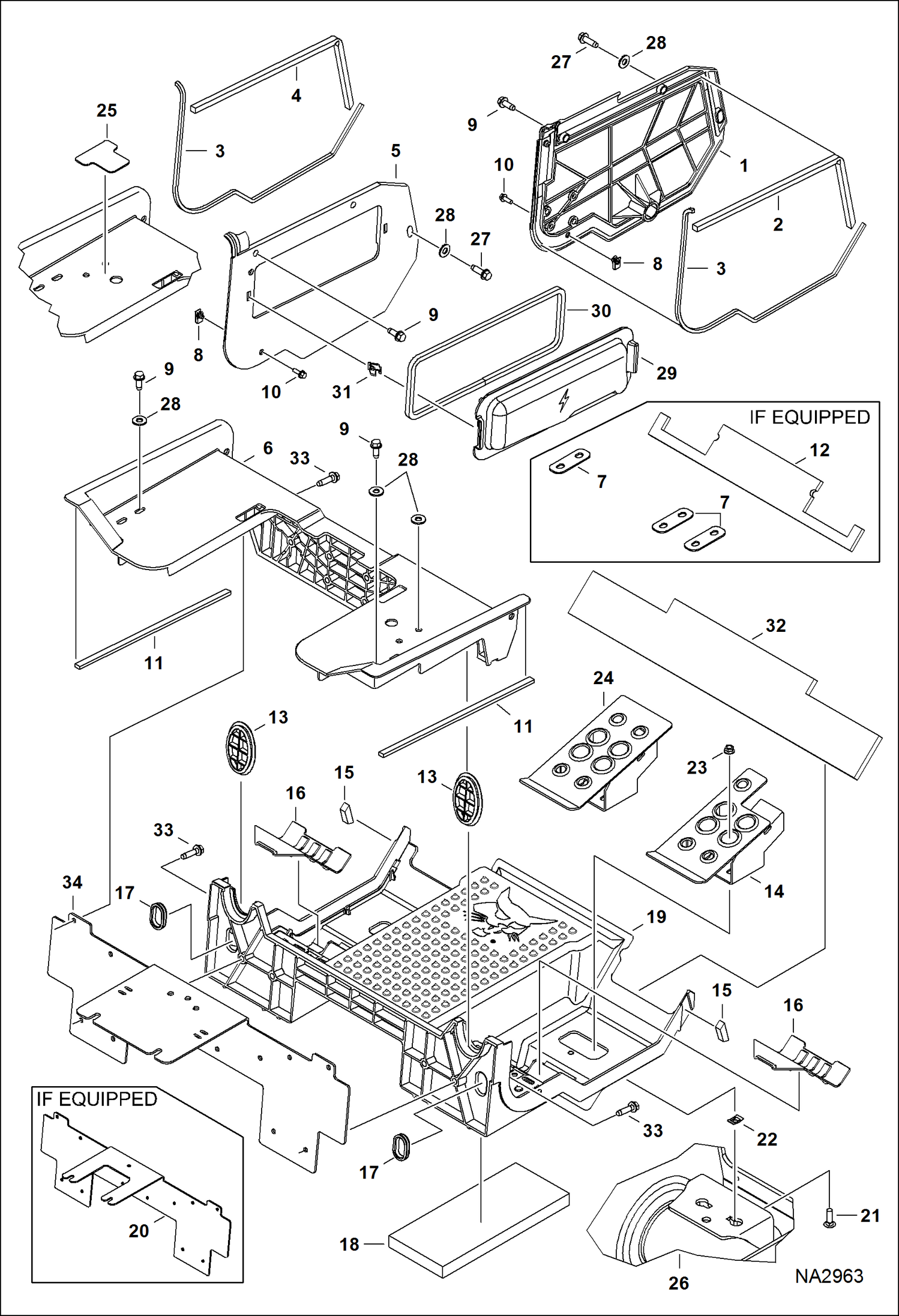

Запчасти Bobcat A-Series PANELS (Floor Pan) MAIN FRAME

1

7180032

PANEL, RH

2

7166198

FOAM, PANEL

3

7166199

FOAM, EDGE

4

7166197

FOAM, PANEL

5

7196671

PANEL, LH

6

7185169

PANEL, STEERING Was 7180037 - A

7

PLATE, WASHER NLA - Order (2) of Ref. 28 - Was 7167118 - A

8

7160765

NUT

9

84G3716

SCREW 5

10

35C412

BOLT

11

7166196

FOAM, PANEL

12

7163132

FOAM, FRONT

13

7161131

COVER, LEVER

14

7157725

PEDAL ASSY RH

15

7166200

FOAM, PAN FLOOR

16

7164345

COVER, PAN FLOOR

17

7161130

COVER

18

7166195

PAD, PAN FLOOR

19

7156916

PAN, FLOOR

20

7191409

PANEL, MOUNTING

21

37C620

BOLT

22

6684033

NUT

23

57D6

NUT 5

24

7158574

PEDAL ASSY LH

25

7185170

COVER Use W/Ref. 6 to cover three holes if present on the LH side

26

CHAINCASE See Illustration DRIVE TRAIN/ NA6072

27

84G3720

BOLT

28

25E18

WASHER

29

7197082

COVER W/Ref. 30 & 31

30

7205329

SEAL, COVER

31

7165333

CLIP
