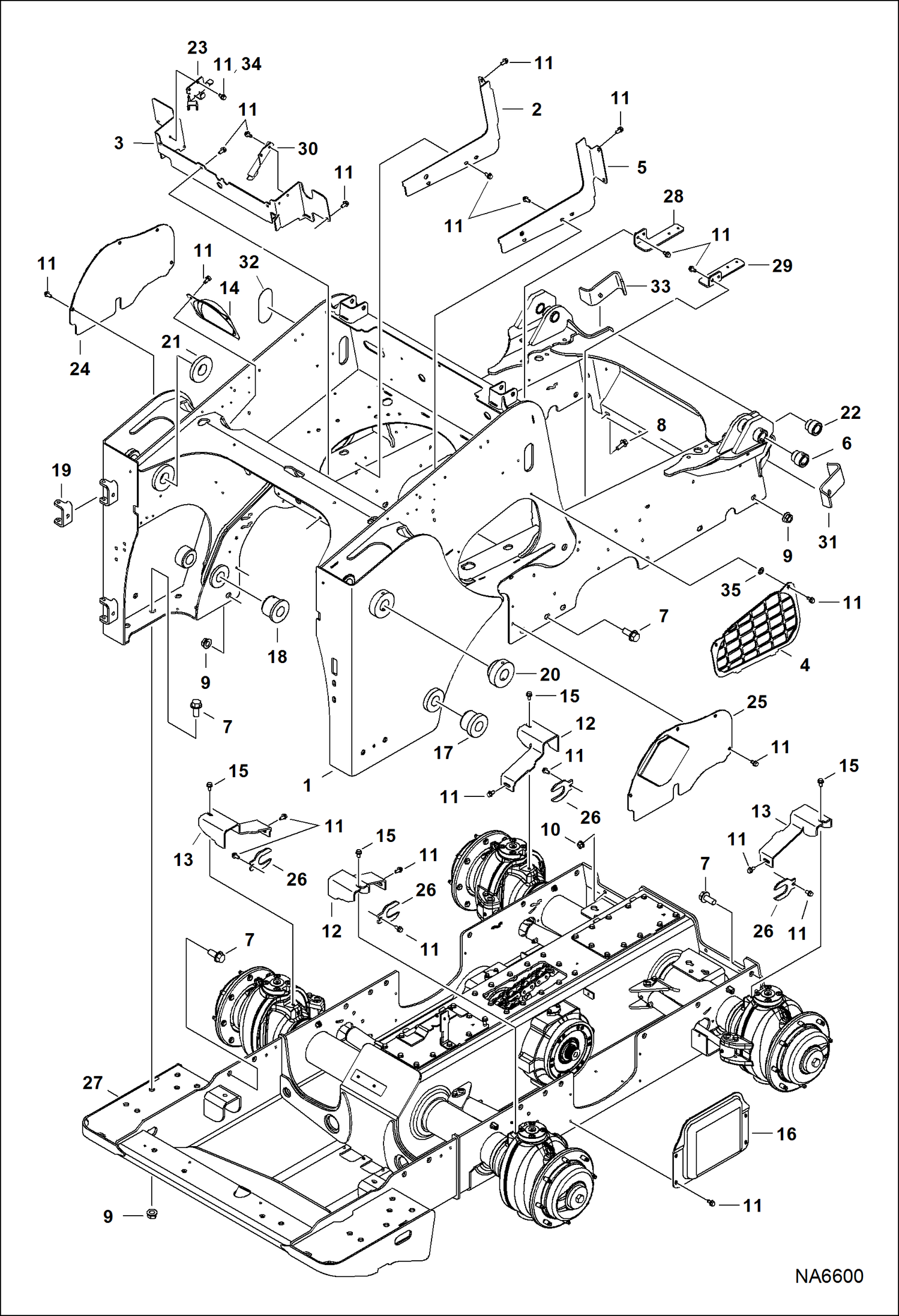

Запчасти Bobcat A-Series MAIN FRAME MAIN FRAME

1

7193370

MAIN FRAME

1

7211868

MAIN FRAME

2

7200099

DUCT, AIR See Illustration COOLING SYSTEM/ NA6387 - LH

3

7218781

CROSSMEMBER

4

7186009

LOUVER, PLASTIC RH

4

7186010

LOUVER, PLASTIC LH

5

7200100

DUCT, AIR See Illustration COOLING SYSTEM/ NA6387 - RH

6

7162141

BUSHING, WELD-ON outside link

7

31C1228

BOLT

8

31C820

BOLT

9

53D12

NUT

10

83D8

NUT 5

11

84G3712

BOLT 5

11

84G3712

BOLT 5

12

7181019

SHIELD, SENSOR single speed

12

7231243

SHIELD, SENSOR

13

7181020

SHIELD, SENSOR

13

7231244

SHIELD, SENSOR

14

7215602

COVER, FILTER PARTICULATE

15

35C612

BOLT

16

7139459

COVER 2 speed

17

7141675

BUSHING, WELD-ON outside upright

18

7141674

BUSHING, WELD-ON inside upright

18

7211897

BUSHING, WELD-ON inside upright

19

6708987

HINGE, WELD-ON

20

7134830

BUSHING, WELD-ON outside upright

21

7134831

BUSHING, WELD-ON inside upright

22

6717278

BUSHING, WELD-ON inside link

23

7218782

GUIDE, HOSE

24

7178452

COVER

25

7183121

COVER, PUMP HYD

26

7188041

SHIELD, CYL

27

CHAINCASE See Illustration DRIVE TRAIN/ NA6450

27

CHAINCASE See Illustration DRIVE TRAIN/ NA6992

28

7202799

BRACKET, SUPPORT LH

29

7202800

BRACKET, SUPPORT RH

30

7210851

BRACKET

31

7155692

GUIDE RH - weld-on

32

7194975

GAUGE, SIGHT

33

7155693

GUIDE LH - weld-on

34

84G3708

SCREW

35

6674264

RETAINER NUT

36

31C1228

BOLT

36

31C1236

BOLT
