Запчасти Bobcat A-Series SEAT BAR MAIN FRAME

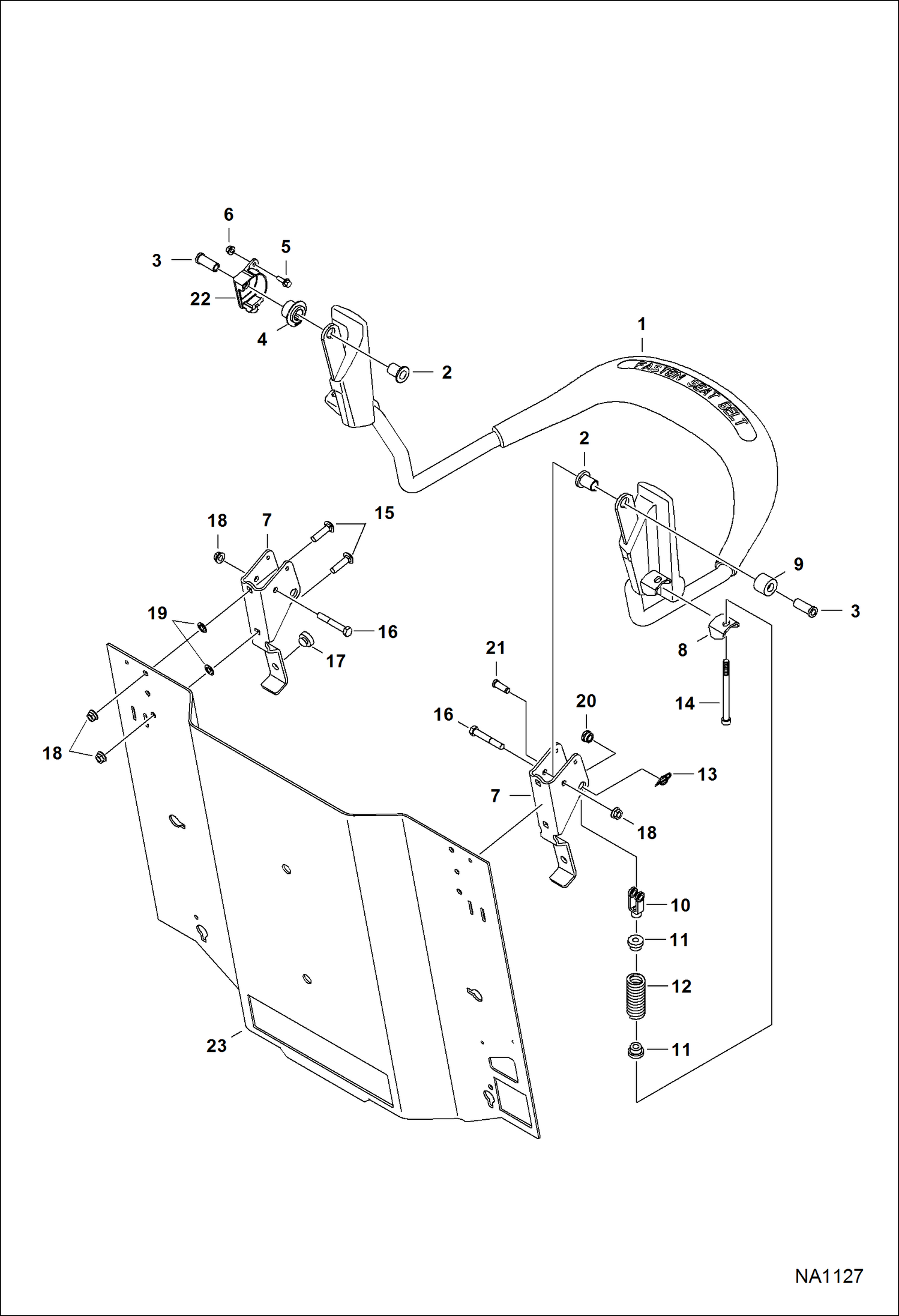

Схема запчастей Bobcat A-Series - SEAT BAR MAIN FRAME

Артикул

Название

Примечание

Количество

1

7203389

SEAT BAR SJC

2

6680441

BUSHING

3

6715865

BUSHING

4

6680443

BUSHING, MAGNET

5

35C412

BOLT

6

83D4

NUT 10

7

7157719

BRACKET

8

MOUNT NLA - Order Ref. 1

9

6715866

BUSHING

10

6713589

CLEVIS

11

6710659

BUSHING

12

6701535

SPRING

13

6631418

RING, RETAINING

14

6713887

BOLT

15

10C624

BOLT

16

17C640

BOLT 5

17

6519178

BUMPER

18

53D6

NUT

19

6674894

NUT

20

6715864

BUSHING

21

4F6106

PIN

22

6691714

SENSOR, SEATBAR BICS

23

CAB ASSY See Illustration OPERATOR CAB/ NA6016

Выбрано товаров: 23
