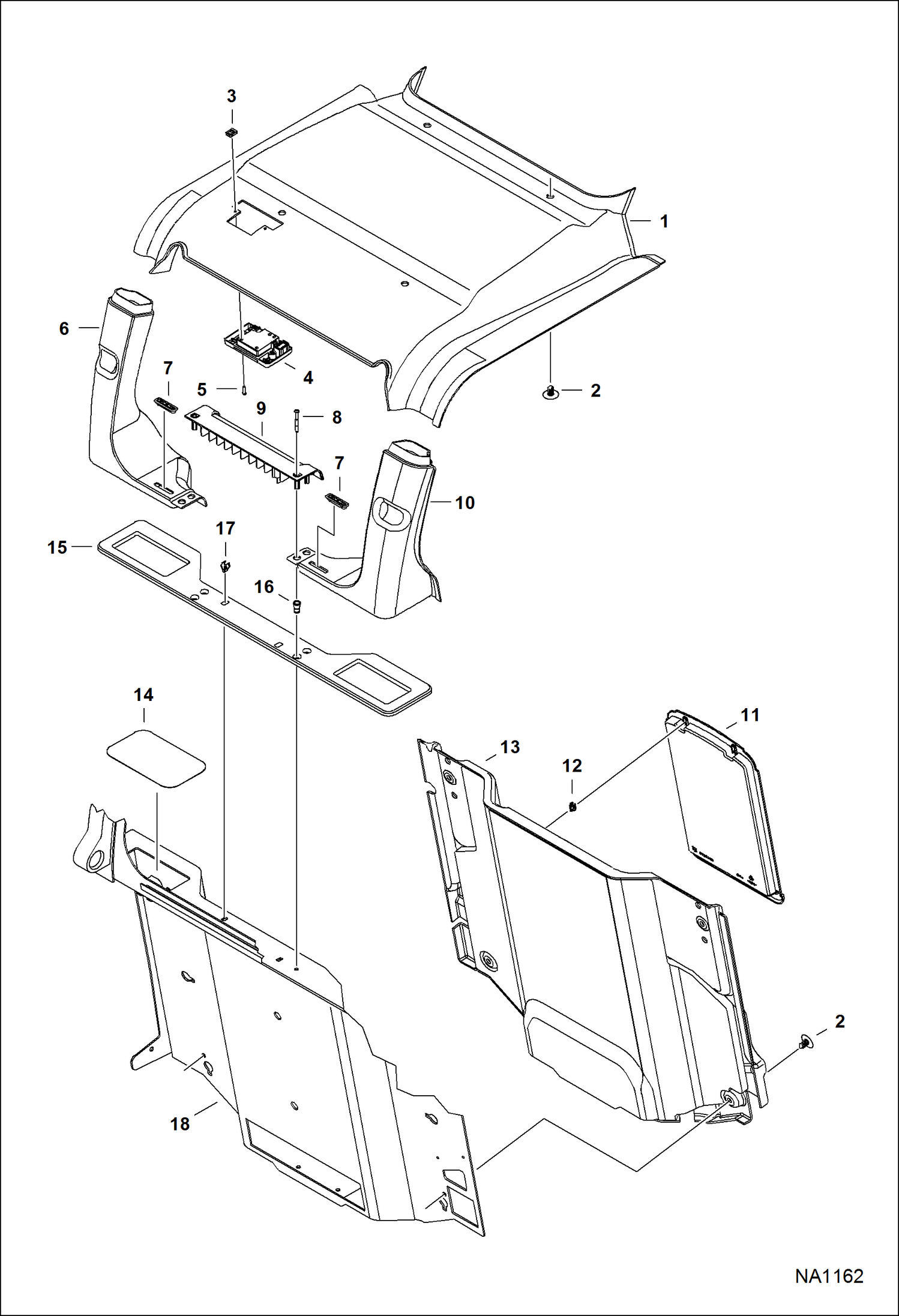

Запчасти Bobcat A-Series OPERATOR CAB (Cab Interior) (Deluxe) (Headliner) MAIN FRAME

1

7155798

HEADLINER, DLX

2

6674895

RETAINER

3

7142762

CLIP

4

LIGHT NLA - 3-positioin switch - Order 7166629 light - Was 7155797 - A

4

7166629

LIGHT, CAB HEADLINER 2 position switch

5

7170114

SCREW

6

100334SUB

DUCT, AIR LH - W/Ref. 7

7

7145885

VENT, DEFROST

8

7165799

SCREW

9

7165332

SHELF, REAR

10

100333SUB

DUCT, AIR RH - W/Ref. 7

11

6725301

OP MANUAL COVER

12

6675524

CLIP

13

7176133

PANEL, CAB INTERIOR

14

7168610

COVER

15

7153832

SEAL, SHELF REAR

16

6675033

INSERT

17

7165333

CLIP

18

CAB ASSY See Illustration OPERATOR CAB/ NA6016
