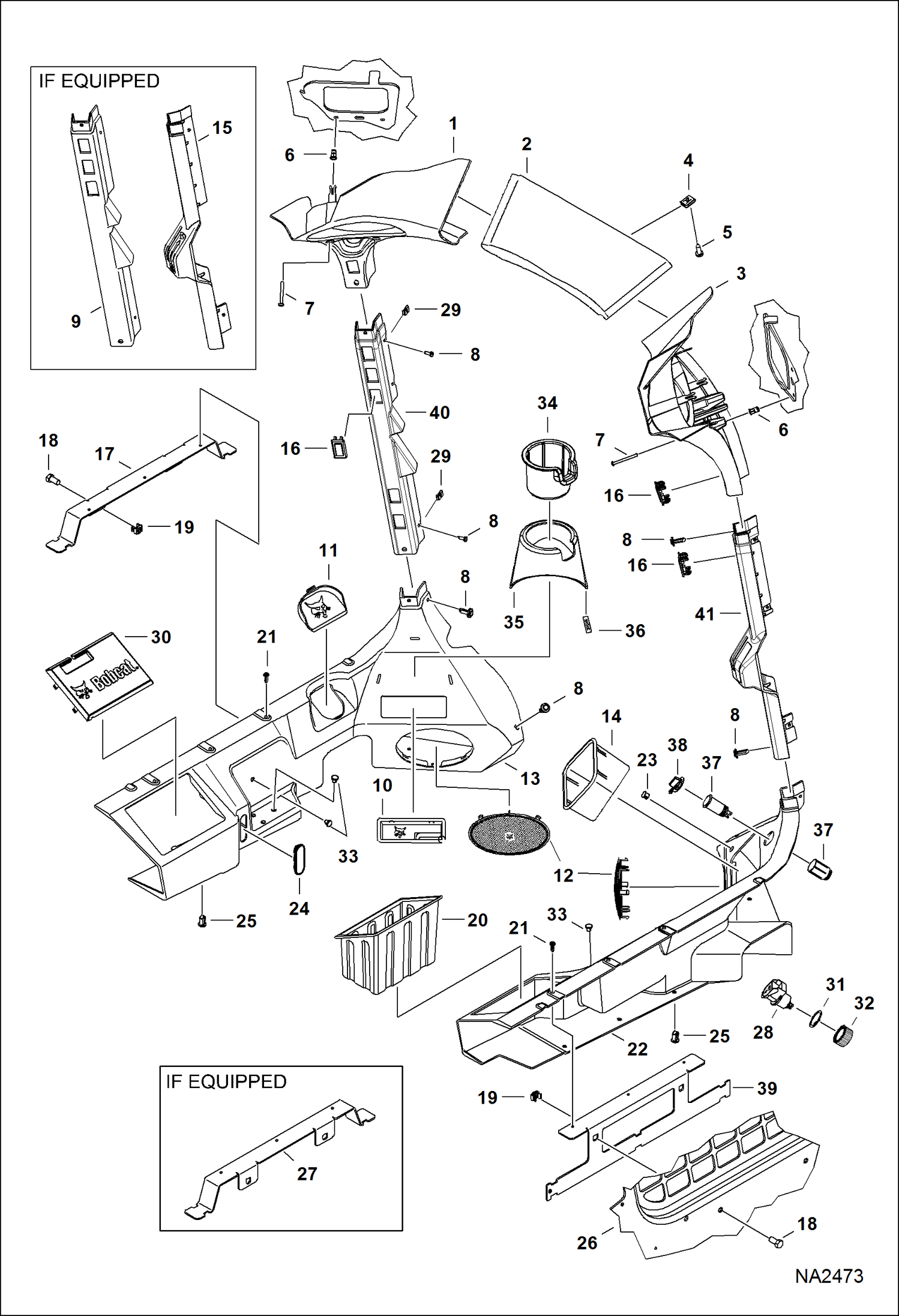

Запчасти Bobcat A-Series OPERATOR CAB (Deluxe Interior) MAIN FRAME

1

7155792

PANEL, LH

2

7223412

PANEL, DASH Was 7155788 - A

3

7155791

PANEL, RH

4

7142762

CLIP

5

6669224

BOLT

6

6675033

INSERT

7

7165799

SCREW

8

7160382

RIVET, BIRD CAGE

9

7164348

COLUMN, FRONT LEFT

10

7165344

STORAGE

11

7165345

DOOR, COVER

12

7161939

GRILL

13

7155643

FENDER, PANEL L.H.

14

7154285

BOX, STORAGE

15

7164347

COLUMN, FRONT RIGHT

16

6665314

PLUG

17

7116118

BRACKET

18

17C612

BOLT 5

19

7149204

NUT

20

7145268

CONTAINER, STORAGE

21

7160381

RIVET, BIRD CAGE

22

7155642

FENDER, PANEL RH

23

7182942

PLUG

24

7165346

DOOR, COVER

25

7160383

RIVET, BIRD CAGE

26

CAB ASSY See Illustration OPERATOR CAB/ NA6016

27

7127976

BRACKET

28

7001664

PLUG, POWER W/hinged cover - W/Ref. 31 & 32

29

7142762

CLIP

30

7152323

COVER, RETRACTOR

31

WASHER NSS - Order Ref. 28

32

NUT plastic - NSS - Order Ref. 28

33

7188745

PLUG

34

7155649

HOLDER, CUP

35

7160320

HOLDER, CUP

36

7167003

CLIP

37

6664223

OUTLET

38

6664224

CAP
