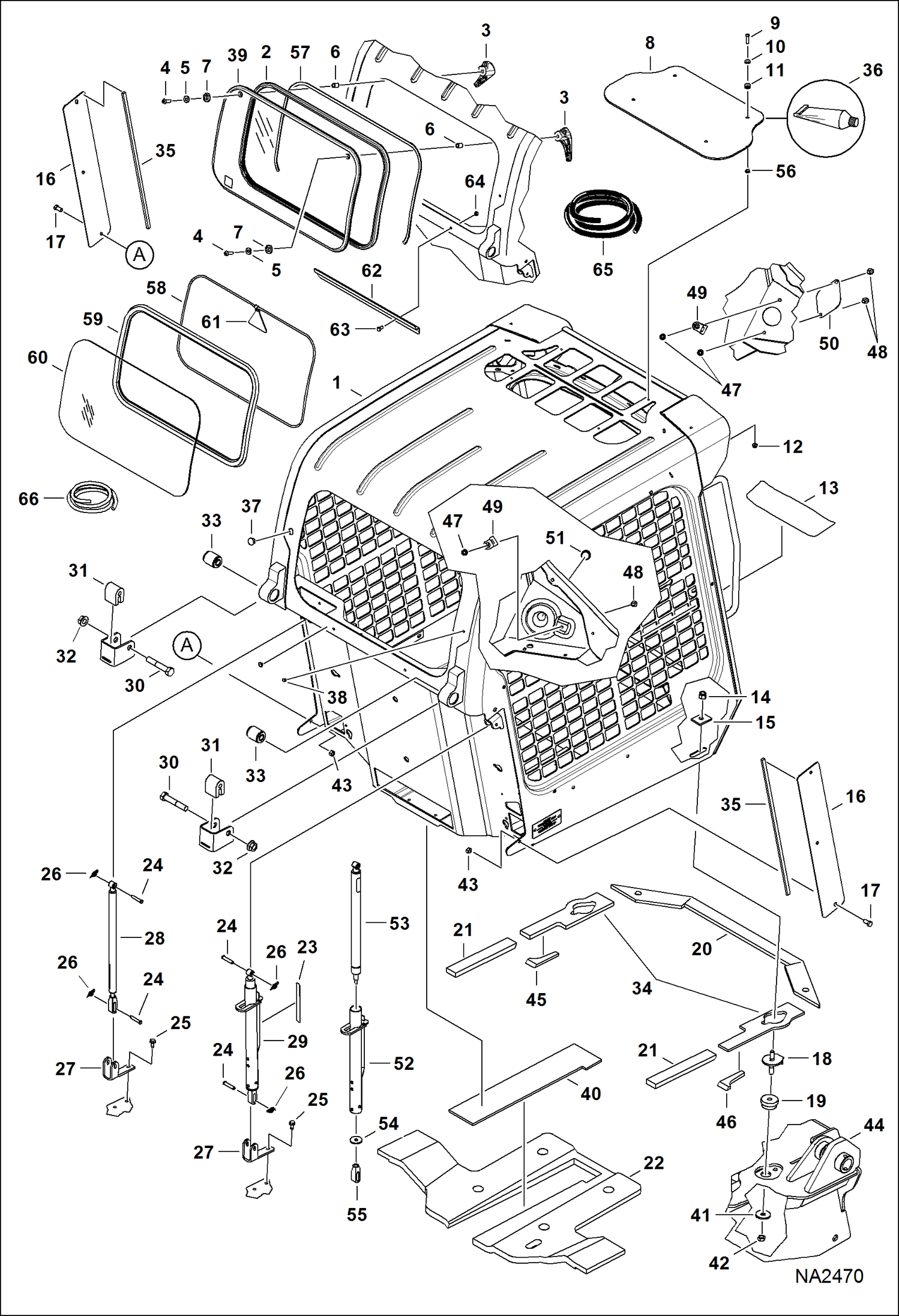

Запчасти Bobcat A-Series OPERATOR CAB (Gas Spring) MAIN FRAME

1

7215840

CAB, ASSY does not include cab decals - decals must be installed matching the loaders's rated operating capacity, lift arm type & operation controls thus order decals separately - Was 7116111 - A

2

7163988

SEAL, WINDOW REAR

3

7150152

LATCH, WINDOW RIGHT

3

7150151

LATCH, WINDOW LEFT

4

53C512

SCREW

5

25E14

WSHR

6

6802539

SPACER

7

7121425

BUSHING

8

7120411

WINDOW, CAB TOP

9

53C416

SCREW

10

25E13

WASHER 5

11

6675545

GROMMET

12

55D4

NUT

13

7169747

TREAD, SAFETY

14

59D8

NUT 5

15

6553709

WASHER rectangular

16

7166544

COVER, HVAC

17

17C612

BOLT 5

18

6702971

BOLT

19

6560633

DAMPENER

20

7182358

SEAL, CAB FRONT seat pan

21

7179917

SEAL, CAB SIDE seat pan

22

7176603

INSULATION, PANEL SEAT

23

7169877

DECAL push

24

6567743

PIN

25

84G3712

BOLT 5

26

6631418

RING, RETAINING

27

7144859

MOUNT, GAS SPRING

28

7167437

SPRING, GAS STD LH - Also Order 7169291 decal

29

7144862

SPRING RH - W/lock

30

17C1056

BOLT

31

6579613

STOP

32

53D10

NUT

33

6562602

BUSHING

34

7179918

SEAL, LATCH RH

34

7179919

SEAL, LATCH LH

35

7182796

SEAL, FOAM

36

7215541

SEALANT, GASKET LIQUID 10 apply 0.38'' bead of sealant to top window 0.50'' from the edge of top window - Was 7171167 - A

37

6657719

PLUG 0.75'' dia hole

38

7188745

PLUG radio

39

7138973

WINDOW, REAR

40

7174787

INSULATION, PAN SEAT

41

6515817

WASHER

42

85D8

NUT, 5

43

61D6

NUT 5

44

MAIN FRAME See Illustration MAIN FRAME/ NA2878

45

7179921

SEAL, FRAME

46

7179920

SEAL, FRAME

47

55D5

NUT

48

35C516

BOLT 10

49

6684641

MOUNT

50

7173576

COVER

51

6697942

PLUG, NYLON

52

7149091

TUBE

53

7149093

SPRING

54

7157958

WASHER

55

7169606

CONNECTOR, SLOTTED

56

7215374

BUSHING, NYLON

57

79K8

O RING 10

58

6648416

SEAL BULK /FT 1371,6mm (54'') - sold per foot
