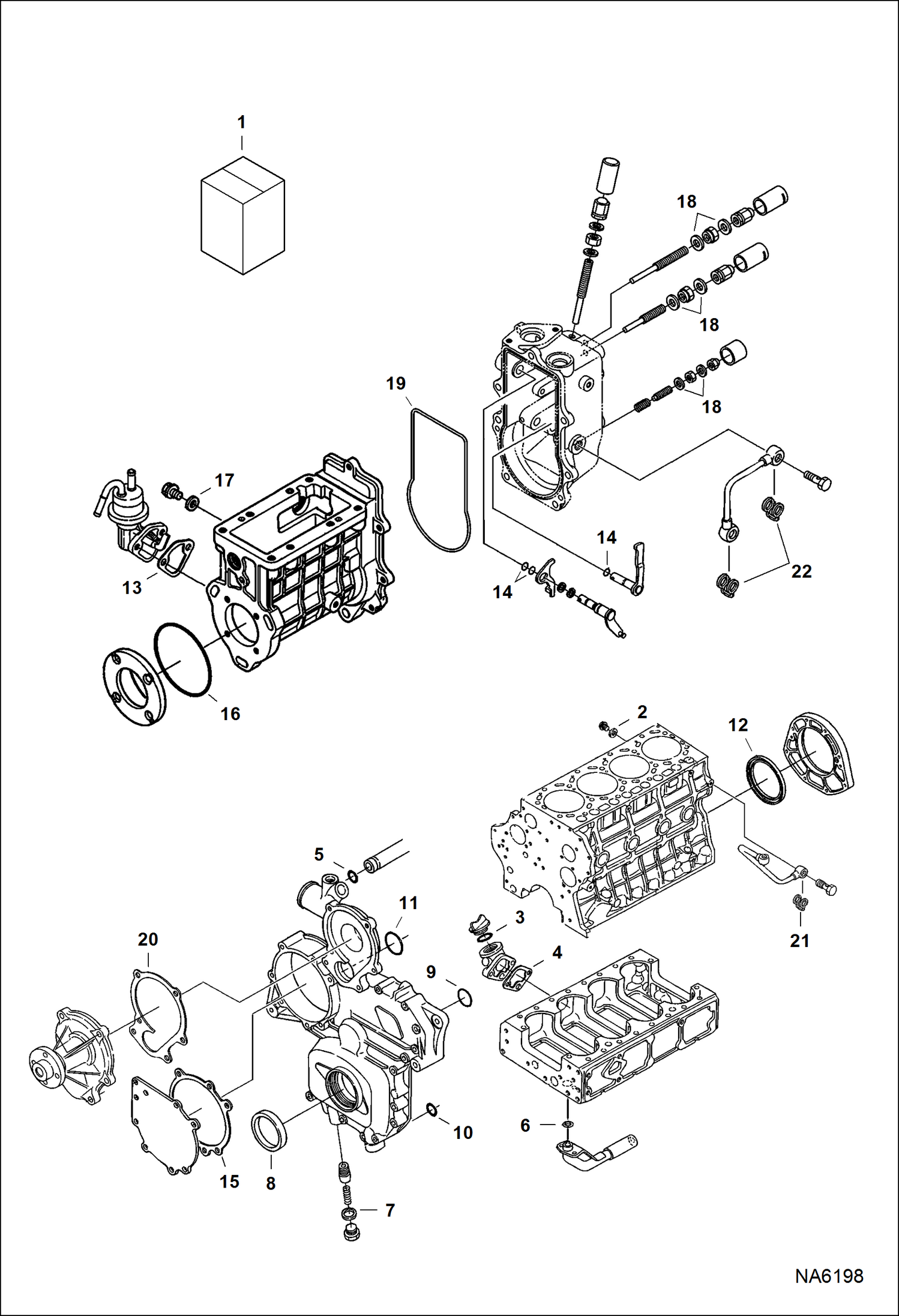

Запчасти Bobcat A-Series LOWER GASKET KIT POWER UNIT

1

6689755

KIT, GASKET ENG LOWER lower gasket- W/Ref 2-22

2

6652751

GASKET See Illustration PISTON & CRANKSHAFT/ B22922

3

6684782

O-RING See Illustration OIL PAN/ B27169 - oil fill plug

4

6685923

GASKET See Illustration OIL PAN/ B27169 - oil filler flange

5

6685971

O-RING See Illustration OIL PAN/ B27169

6

6680661

O-RING See Illustration OIL PAN/ B27169

7

6670347

GASKET See Illustration FRONT COVER/ B22924

8

6680680

SEAL See Illustration FRONT COVER/ B22924 - front crankshaft

9

6680681

O-RING See Illustration FRONT COVER/ B22924

10

6680682

O-RING See Illustration FRONT COVER/ B22924

11

6680855

O-RING See Illustration FRONT COVER/ B22924

12

6680705

SEAL See Illustration FRONT COVER/ B22924 - rear crankshaft

13

7010133

GASKET, PUMP FUEL See Illustration FUEL INJECTION SYSTEM/ B26805

14

6683023

O-RING See Illustration GOVERNOR/ B26807

15

6685948

GASKET See Illustration FUEL INJECTION SYSTEM/ B26805 - front cover

16

6680816

O-RING See Illustration FUEL INJECTION SYSTEM/ B26805

17

3974095

MET-GASK See Illustration FUEL INJECTION SYSTEM/ B26805 - copper

18

3974972

GASKET See Illustration GOVERNOR/ B26806

19

6680829

GASKET See Illustration FUEL INJECTION SYSTEM/ B26805 - governor housing

20

6680853

GASKET - water pump

21

6689331

GASKET See Illustration TURBOCHARGER/ MS1475 - one piece aluminum

22

7000642

WASHER, SEALING COPPER See Illustration GOVERNOR/ B26806 - oil pipe
