Запчасти Bobcat A-Series UPPER GASKET KIT POWER UNIT

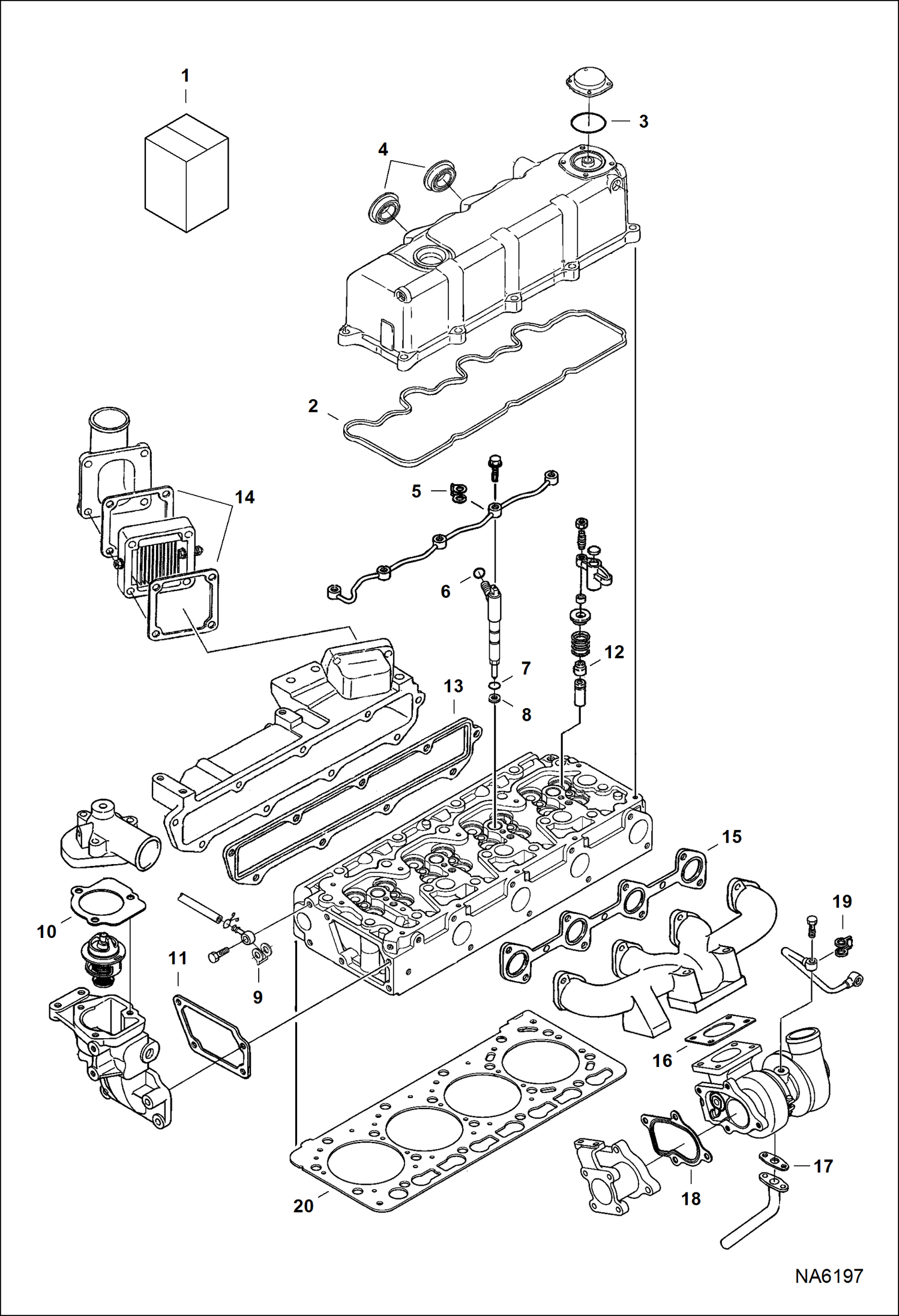

Схема запчастей Bobcat A-Series - UPPER GASKET KIT POWER UNIT

Артикул

Название

Примечание

Количество

1

6689756

KIT, GASKET ENG UPPER upper gasket - Ref. 2-19

2

6680690

GASKET See Illustration CYLINDER HEAD & COVER/ B17604 - head cover

3

6680691

O-RING See Illustration CYLINDER HEAD & COVER/ B17604

4

6680695

SEAL See Illustration CYLINDER HEAD & COVER/ B17604 - injection pipe

5

6685498

GASKET See Illustration FUEL INJECTION SYSTEM/ B26504 - overflow pipe

6

6680778

O-RING See Illustration FUEL INJECTION SYSTEM/ B26504

7

6670769

O-RING See Illustration FUEL INJECTION SYSTEM/ B26504

8

6969824

GASKET, NOZZLE INJ See Illustration FUEL INJECTION SYSTEM/ B26504 - nozzle

9

6698528

WASHER, SEALING See Illustration FUEL INJECTION SYSTEM/ B26504 - copper

10

6685955

GASKET See Illustration WATER PUMP & THERMOSTAT/ NA2747 - thermostat cover

11

6680849

GASKET See Illustration WATER PUMP & THERMOSTAT/ NA2747 - water flange

12

6672436

SEAL See Illustration CYLINDER HEAD/ B27168 - valve stem

13

6680884

GASKET See Illustration MANIFOLDS/ NA6185 - intake manifold

14

6680887

GASKET See Illustration MANIFOLDS/ NA6185 - intake flange

15

6680891

GASKET See Illustration MANIFOLDS/ NA6185

16

7008514

GASKET, TURBO See Illustration TURBOCHARGER/ MS1475

17

6680570

GASKET See Illustration TURBOCHARGER/ MS1475 - turbo to return oil pipe

18

6691588

GASKET See Illustration TURBOCHARGER/ MS1475 - turbo to exhaust flange

19

7000642

WASHER, SEALING COPPER See Illustration TURBOCHARGER/ MS1475 - oil supply tube - top

20

GASKET See Illustration CYLINDER HEAD & COVER/ B17604 - cylinder head - order seperately

Выбрано товаров: 20
