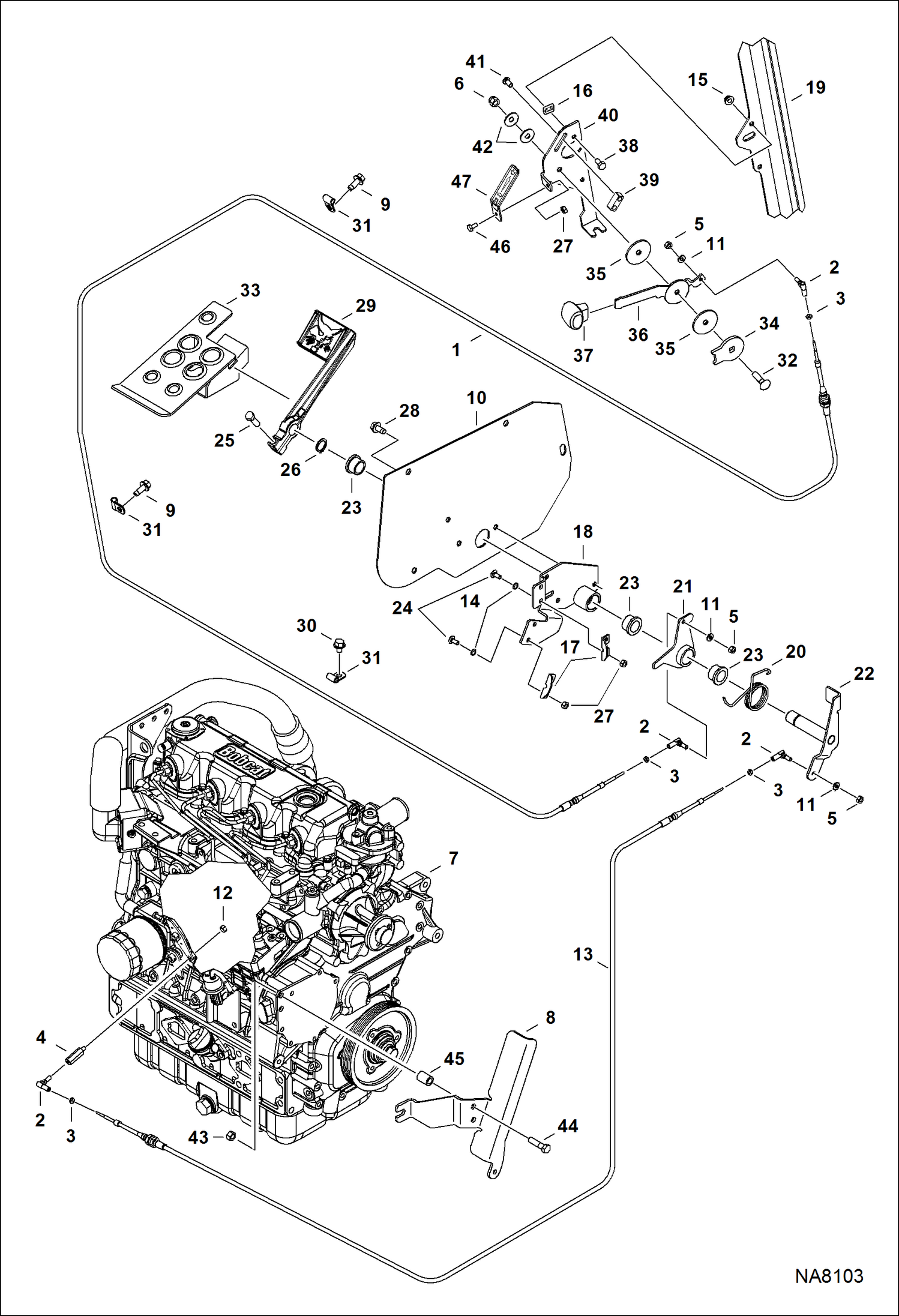

Запчасти Bobcat A-Series ENGINE SPEED CONTROL (4724 mm) (186) Hand Cable - (2692 mm) (106) Foot Cable POWER UNIT

1

7213435

CABLE, THROTTLE hand cable - 4724 mm (186'')

2

6644965

BALL JOINT

3

14D10

NUT

4

7183048

SPACER

5

62D4

NUT

6

59D6

NUT

7

7020665

ENG, V3800DIT 92 HP EPA T2 / EU STG II See Illustration ENGINE & GASKET KITS/ NA6196

8

7196287

COVER, BELT

9

84G3712

BOLT 5

10

7213394

PANEL, RH

11

25E11

WASHER

12

95D4

NUT

13

7213429

CABLE, THROTTLE foot cable - 2692 mm (106'')

14

6675212

RETAINER

15

55D5

NUT

16

774220

NUT

17

7213396

CLAMP, CABLE

18

7213407

BRACKET, THROTTLE

19

CAB, ASSY See Illustration OPERATOR CAB/ NA2470

20

7213411

SPRING, TORSION

21

7213412

LEVER

22

7213415

LEVER

23

7159624

BUSHING

24

10C410

BOLT

25

17C620

BOLT

26

6534668

SNAP RING

27

61D4

NUT 5

28

84G3716

SCREW 5

29

7164294

PEDAL, FOOT THROTTLE

30

31C612

BOLT

31

30H20

CLIP

32

37C624

BOLT

33

7157725

PEDAL ASSY

34

7166269

WASHER

35

7159386

WASHER

36

7166172

HANDLE

37

7166173

HANDLE

38

17C510

BOLT

39

7166174

BLOCK

40

7166171

BRACKET

41

25G510

BOLT

42

6630038

WASHER

43

95D6

NUT

44

7131273

SCREW

45

6532347

SPACER

46

17C408

BOLT

47

7169911

PLATE, DECAL
