Запчасти Bobcat A-Series ENGINE & ATTACHING PARTS (Engine Mounts) POWER UNIT

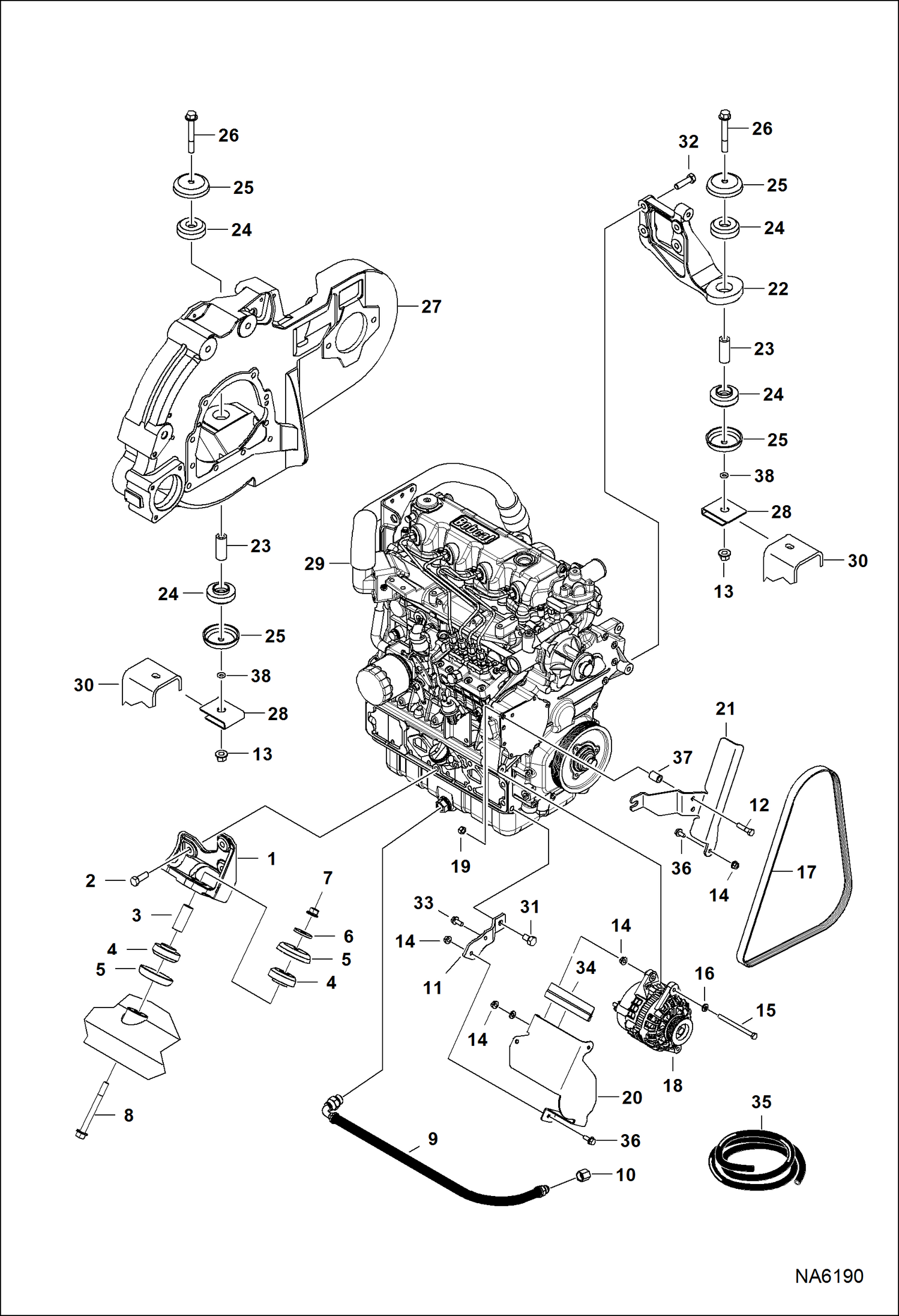

Схема запчастей Bobcat A-Series - ENGINE & ATTACHING PARTS (Engine Mounts) POWER UNIT

Артикул

Название

Примечание

Количество

1

7140797

MOUNT, ENG

1

7202298

MOUNT, ENG

2

6719829

BOLT

3

7141405

BUSHING Was 7146236 - B,D

4

7000488

DAMPER

5

7127305

WASHER

6

6515817

WASHER

7

83D8

NUT 5

8

31C880

SCREW

9

7136111

HOSE, DRAIN OIL

10

36K6

CAP

11

7141420

BRACKET, ALT

12

59CM1040

SCREW HX FLNG W/T8.8 Use W/Ref. 19 (43DM10 nut)

12

17C624

BOLT 5 Use W/Ref. 19 (95D6 nut)

13

83D8

NUT 5

14

43DM8

NUT

15

1CM8110

HEX CAP S

16

25E15

WASHER

17

7174706

BELT, ALT

18

ALTERNATOR

19

43DM10

NUT Use W/Ref. 12 (59CM1040 screw)

19

95D6

NUT Use W/Ref. 12 (17C624 bolt)

20

7194433

SHIELD, ALT

21

7196287

COVER, BELT

22

7141383

MOUNT, ENG

22

7202296

MOUNT, ENG

23

7141405

BUSHING

24

7000489

DAMPER

25

7116851

CUP

26

31C864

BOLT Was 31C860 - B

27

7141037

MOUNT, ENG/PUMP

27

7204291

MOUNT, ENG/PUMP

28

7152037

NUT, RETAINING W/Ref. 13

29

7020665

ENG, V3800DIT 92 HP EPA T2 / EU STG II See Illustration ENGINE & GASKET KITS/ NA6196

30

MAIN FRAME

31

6CM1220

BOLT

32

7135124

SCREW

33

59CM820

SCREW HX FLNG W/T 8.8

34

SEAL, RUBBER NLA - 139,7 mm (5.5'') long - Order Ref. 35

35

7167241

SEAL, BULK - sold per foot - Was 6646705 - B,D

36

59CM816

BOLT

37

6532347

SPACER

38

7120149

O-RING, RETAINING

39

7234109

HOSE, DRAIN

40

15KB0808

FITTING, HYD CONNECTOR

Выбрано товаров: 45
